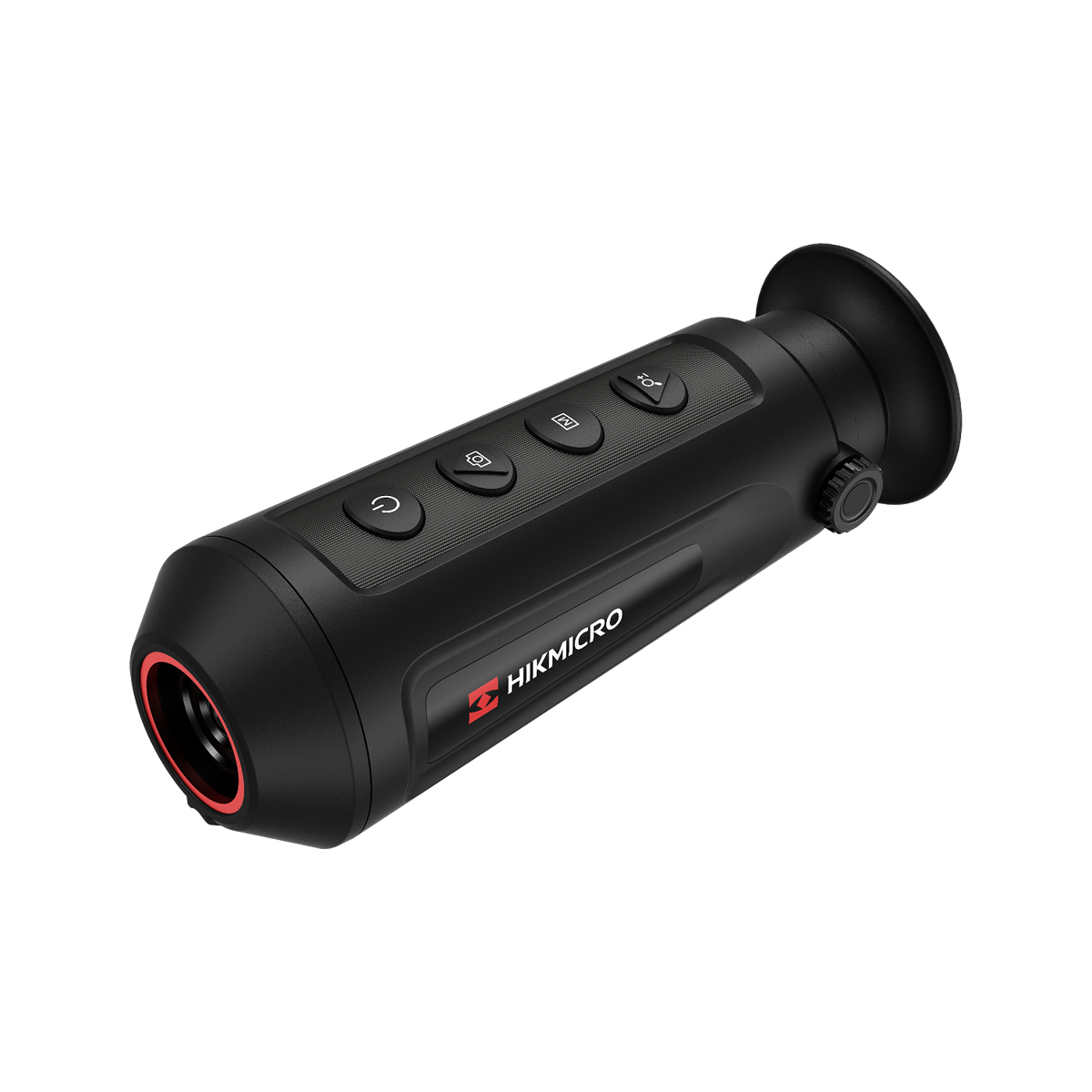

**Factory Refurb** HIKMICRO Lynx-S LC06 6mm 35mK 160x120 17um Smart Thermal Monocular
Condition 9/10
Maybe have some slight cosmetic issues but otherwise as new. Comes in original box.
No other accessories included.
Please note: Photos of this product have been taken from original listing. The products appearance may slightly differ based on it’s grading and description. For example there may some light cosmetic scratches or scuffs.
Welcome HikMicros best sell thermal monocular the HIKMicro Lynx-S 6mm featuring a superb sub 35mK 160x120 thermal sensor with a 17um micron pixel pitch which delivers a high-quality thermal image especially when you take into account that thermal imagers retail usually at 10x this price point. The HikMicro Lynx-S 6mm is Wifi enabled allowing you to pair up with the HikMicro Sight APP and it is filled with features that are normally reserved for high-end thermal spotters. The HIKMicro Lynx-S 6mm with its 160x120px, 17µm thermal sensor (35mK NETD Rating) and HIK software deliver a detailed image to the screen which makes this a great unit for rat or rabbit control out to 50m. The HikMicro Lynx-S 6mm is definitely a multi talented unit that can be used for security work or even in professional environments such as plumbing where detecting for a heat source and working panel can usually be a difficult job. The WiFi and the dedicated app allow you to take complete control of the unit's settings and features from your smartphone aswell as giving you the ability to share your view through the thermal monocular to your friends or colleagues. 35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.Battery life = 10hrs of continuous running!This is all backed up by a 3 year UK warranty.
Use the HIKMICRO Sight APP for connecting smartphone via Wi-Fi hotspot, HIKMICRO Sight supports live view, capture image, record video, share file to social media, album management, remote parameter setting, and firmware upgrade.If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
- Sensor 160×120px @ 17µm
- Objective Lens 6mm
- Detection Range (Vehicle 1.4 x 4m) 559m
- Detection Range (Human 1.8 x 0.5m) 182m
- Type Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution 160×120 px
- Pixel Pitch 17µm
- Frame Rate 50 Hz
- NETD Rating 35mK
- Objective Lens F1.1
- Magnification (Optical) 0.6x
- Magnification (Digital) 1x, 2x, 4x
- Field of View 24.7° × 18.7° (H × V)
- Type 5.08mm, LCOS
- Resolution 720 × 540 pixels
- Colour Palettes 4 options (Black Hot, White Hot, Red Hot, Fusion)
- Video Recorder Yes
- Sound Recorder No
- Built-in Memory 8 Gb
- Hot Tracking Yes
- Wi-Fi Hotspot Yes
- T-Vision App Support Yes
- Degree of Protection (IP Code) IP67
- Dust Protection Protected against dust ingress
- Water Protection Protected against temporary submersion in water
- Operating Temperature Range -20 °C to 55 °C
- Dimensions 158mm × 61mm × 57mm
- Weight 0.25 kg
- Operating Time on Battery (Wi-Fi & Hot Tracking Disabled) 10 hours continuous running
- Charging Interface USB-C
- Battery Capacity after 1000 Cycles 80%
-
HIK Micro Thermal Sensor:
Features a 160x120 pixel, 17µm thermal sensor with a NETD rating of 35mK, delivering high-quality thermal images. -
35mK NETD Rating:
One of the most sensitive sensors available, capable of detecting even the smallest temperature differences for superior image clarity. -
HIK Software Integration:
Combines with advanced HIK software to process on-screen images, providing performance that exceeds its price point. -
T-Vision App:
- Connect, Control, Stream: Easily connect your smartphone to the Lynx-S 6mm, controlling all features via the app.
- Real-Time Streaming: Stream the thermal output in real time to share your viewpoint with others.
- Image & Video Recording: Record images and videos directly from the app.
- Optimisation Tools: Adjust the colour profile, display settings, and magnification through an intuitive interface.
-
Hot Tracking:
- Green Crosshair Highlight: Highlights the hottest spot in the current frame with a green crosshair, aiding in detecting small heat sources.
- App Control: This feature can be activated or deactivated via the menu or controlled directly from the app.
OPW Trusted Reviewer Lee from LRH Vermin Control - HIKMICRO Lynx-S 6mm Review
HIK Micro/Vision Lynx-S/Owl - OPW Quickfire Review
HIKMICRO Lynx-S Range Comparison
HIK MICRO/VISION - Thermal Spotter Introduction
HIK MICRO/VISION - T-Vision App Demonstration
Who is HIK MICRO/VISION?
- 1 year OPW warranty
