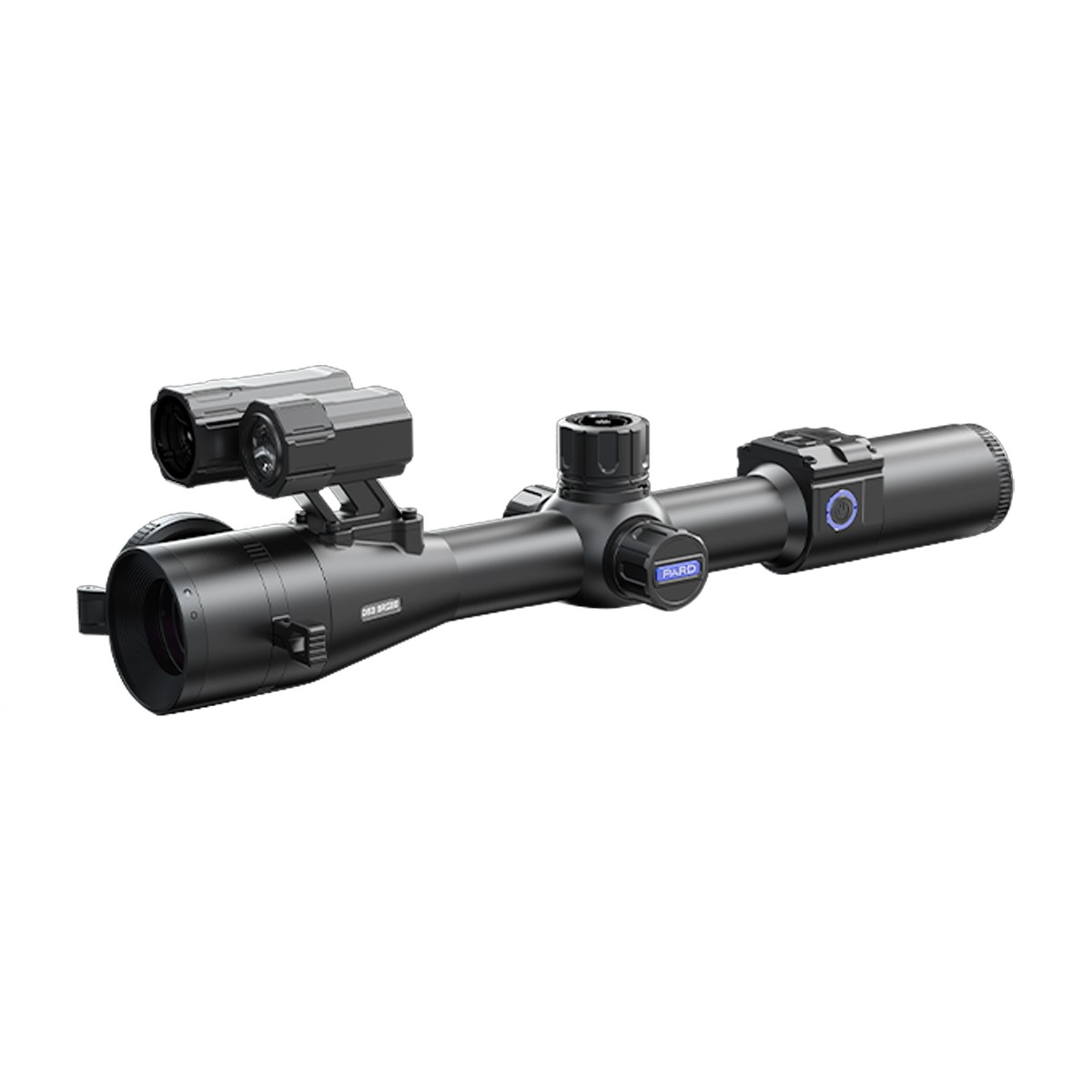

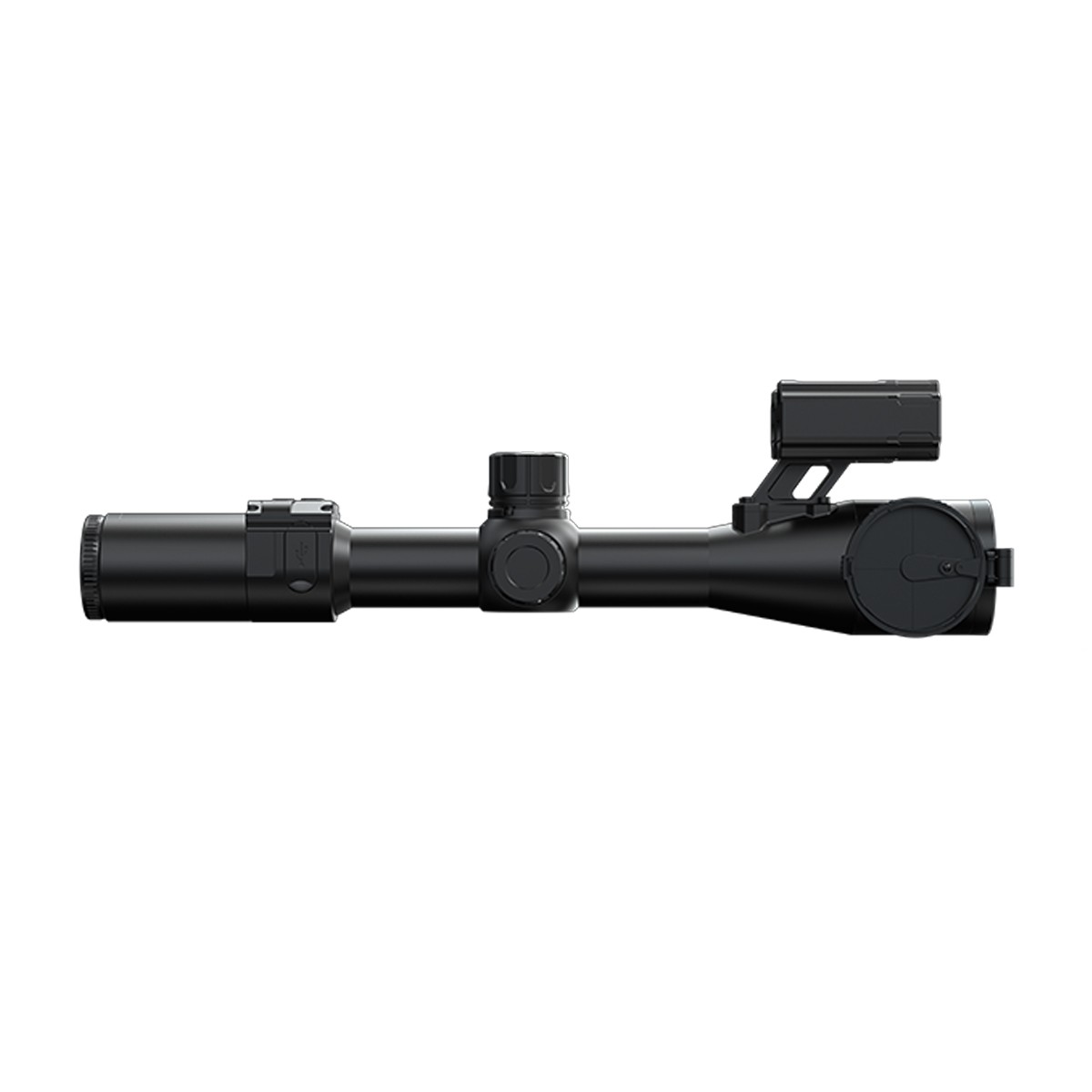

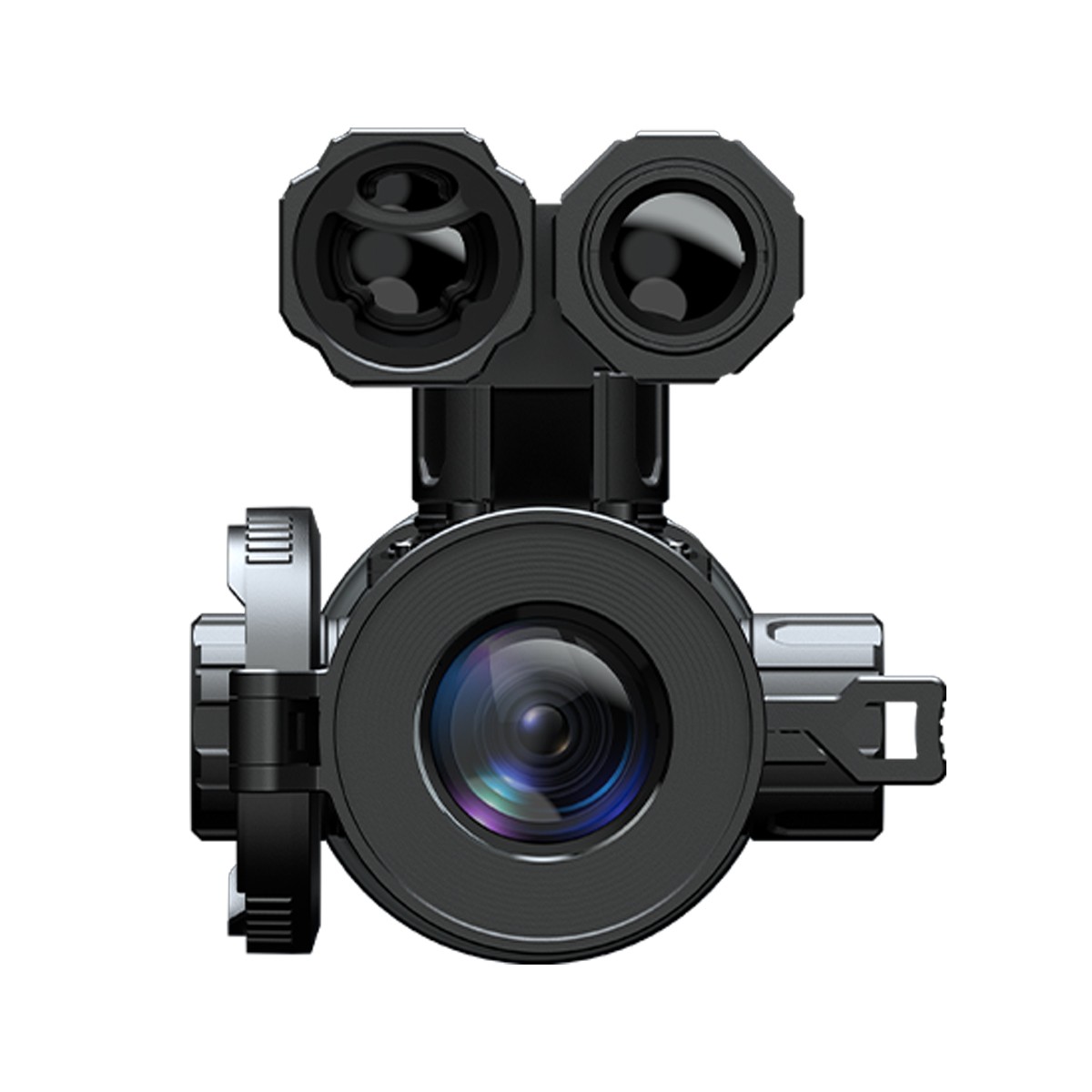

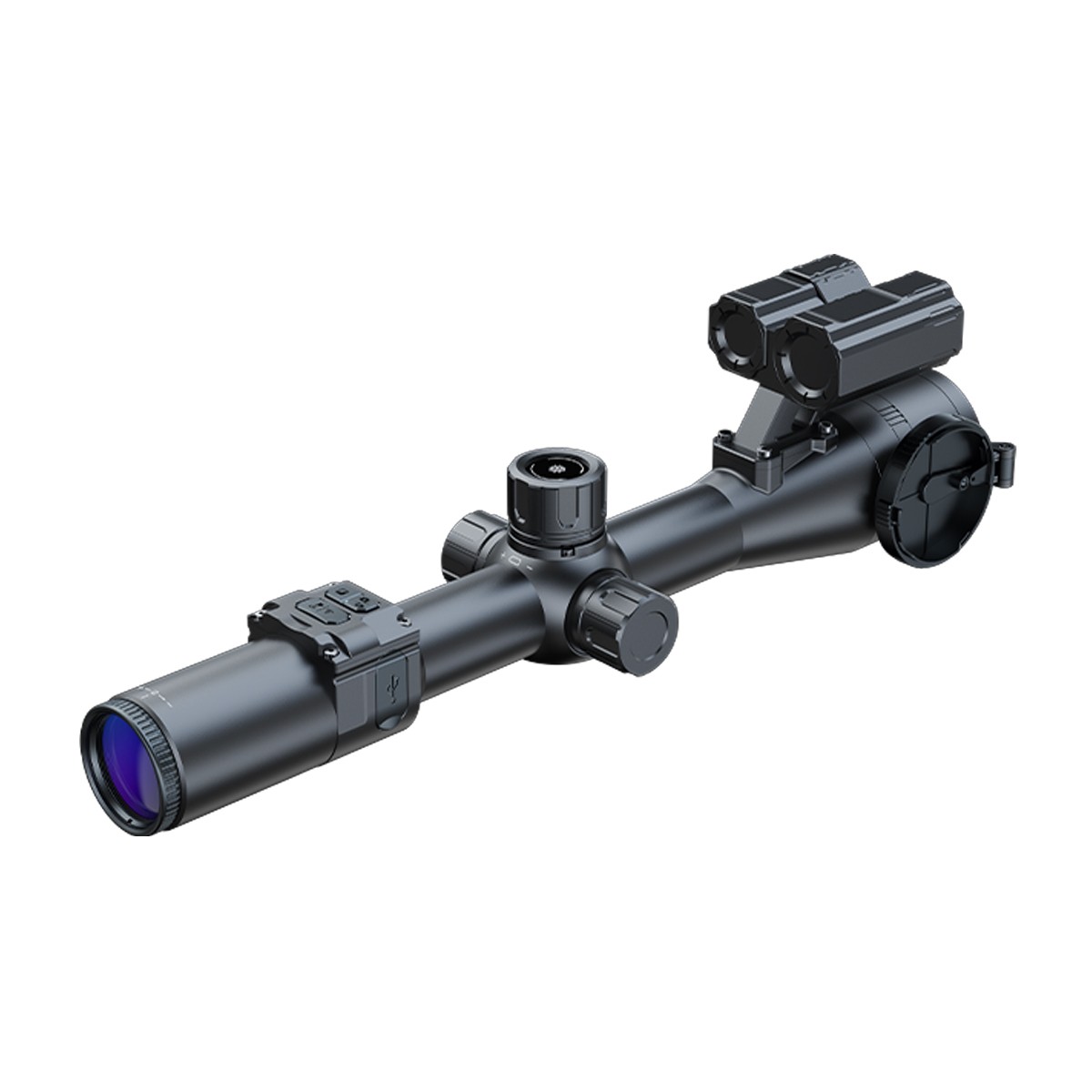

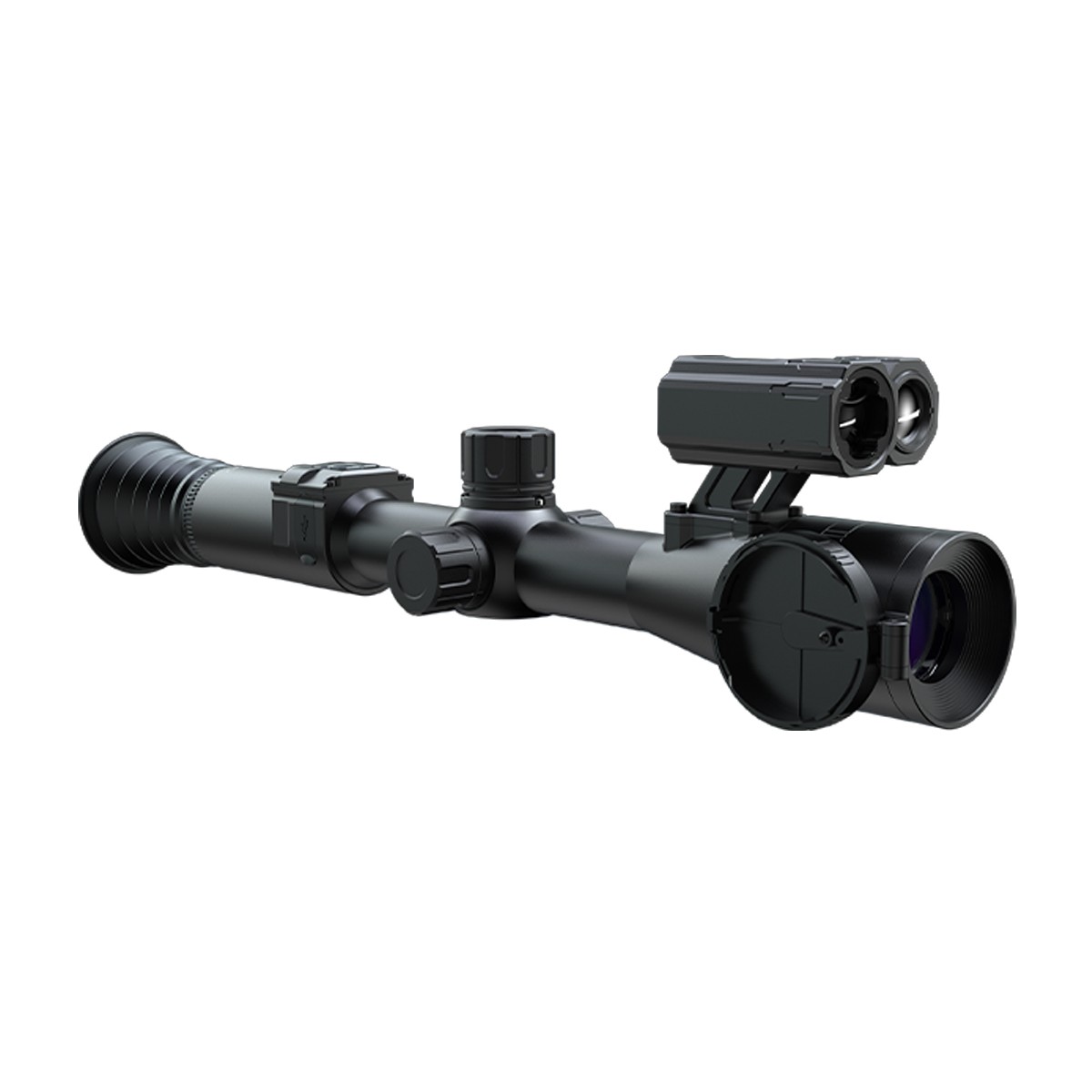

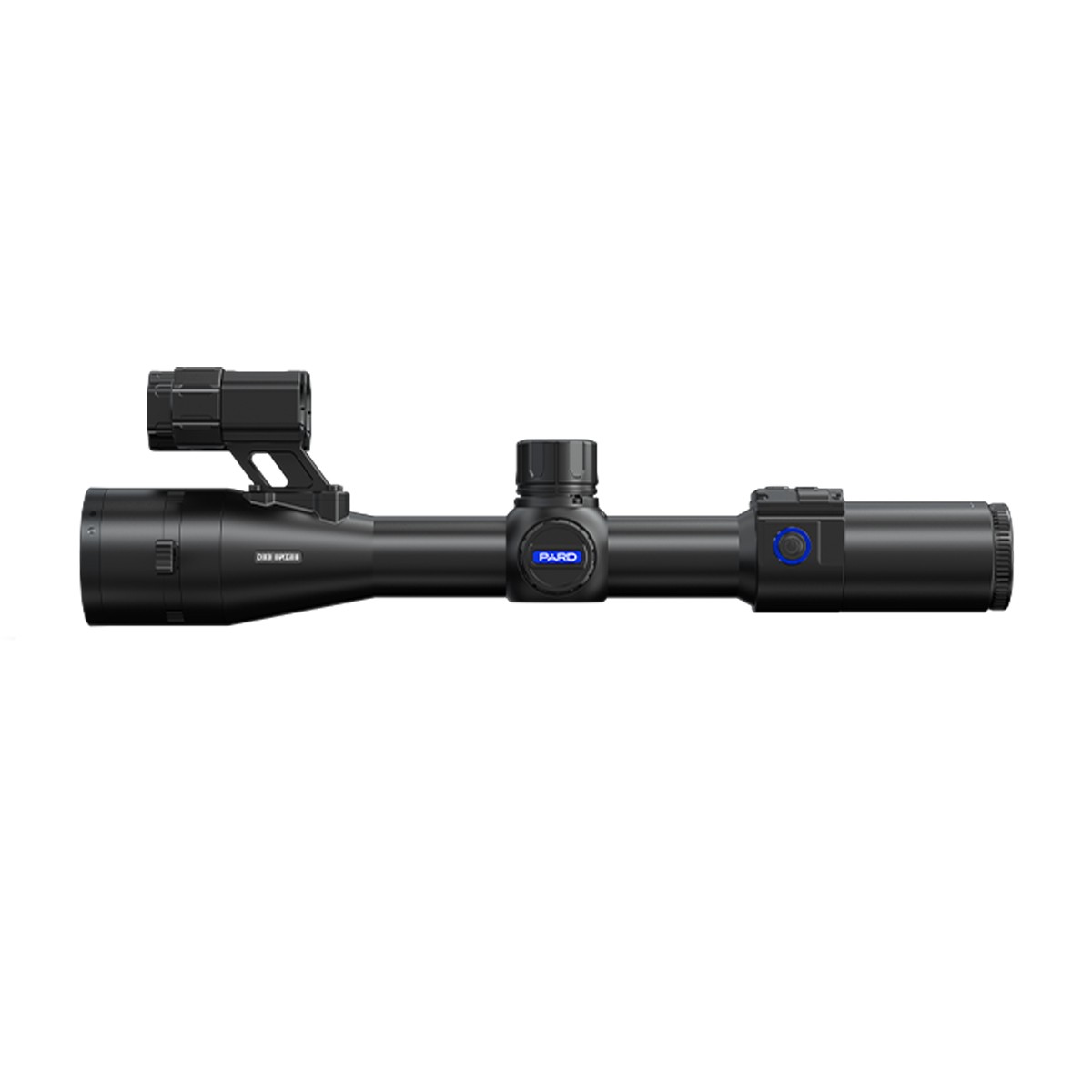

WIN A: PARD DS35 LRF 70mm GEN 2 2K (2560 x 1440) 5.6x 850nm Day / Night Vision Ballistic Laser Range Finding Rifle Scope
#394
#395
#393
#396
#392
Ultra-clear Display. Beautifully Vibrant
The DS35 uses an 800*800 LTPS circular display, which delivers high-clarity images with rich contrast and has an extra-wide field of view for enhanced situational awareness. Viewing feels more natural, like you are viewing from a traditional day scope.
Innovative Image - Shift Zero
It’s now easier and more convenient to zero your scope. The image will shift to align with the impact point, instead of shifting the position of the reticle. The crosshairs will always remain fixed in the center allowing you to use the entire field of view.
- Easier to sight your scope
- Wide field of view
Focus-free Lens Cap
The lens cap was designed based on the pinhole theory, so that when it gets too bright during the day, you can use the lens cap as a sunshade and then open the small hole. There is no need to refocus the scope, when observing different targets at different distances.
Extremely Sensitive CMOS Sensor
The CMOS 0.001 low lux image sensor performs well in low light and delivers higher resolution images. The DS35 has a 2560*1440 (2K) sensor and the DS33 has a 1920*1080 sensor to suit your needs.
Fast Detection 1000M LRF
Targets can be detected up to 1000M away. The newly developed compact ranging module is precise and has fast detection speed. When paired with integrated ballistics, the LRF gives you the range information you need at night to hunt smarter.
- Precise target ranging
- Hunt smarter
Accurate Ballistic Calculator
The integrated ballistic calculator can calculate bullet trajectory parameters such as velocity, bullet weight and zero range. The advanced technology helps you to improve your accuracy by calculating precise aiming points for your next shot placement.
- Quickly indicate the precise aiming point
- Accurately place your shot
Direction Adjustable IR Light
You can unscrew the IR head and point the IR light in your desired direction. The IR light helps in target identification and is ideal for spotting and navigation. At night, the IR illumination range can reach up to 500 meters.
- 850nm Optional wavelength
- Powerful illumination range
| Product Name A-Z | WIN A: PARD DS35 LRF 70mm GEN 2 2K (2560 x 1440) 5.6x 850nm Day / Night Vision Ballistic Laser Range Finding Rifle Scope |
|---|---|
| SKU | OPTICSDRAWS#393 |
Specs
| Model | DS35 70mm |
| Sensor | |
| Resolution(px) | 2560*1440 |
| Pixel size(um) | 2.9um |
| Sensitivity(lux) | 0.001lux |
| Frame rate(fps) | 30fps(night); 60fps (day) |
| Image Engine | PARD VLEA |
| Optics | |
| Objective lens | 70mm F2.4 |
| Optical Magnification(x) | 5.6x |
| Digital zoom(x) | 2x |
| PIP(x) | 2x |
| Field of view (HxV) | 3.4º |
| 3.4º | |
| 4.8º | |
| Focus range | 5m-∞ |
| Eye relief(mm) | 100mm |
| Exit pupil(mm) | 10mm |
| Diopter adjustment(°) | TBD |
| IR Illuminator | |
| IR Type | VCSEL |
| IR power | 5W |
| IR illuminating level | 3 levels |
| IR distance(m) | 350m |
| IR Wavelength(nm) | 850nm/940nm |
| Display | |
| Type | IPS LCD |
| Resolution(px) | 800*800 |
| Reticle Style | 6 |
| Reticle Color | white,yellow,green |
| Color mode | Color,Mono BW,Mono Green,Mono Yellow |
| Photo / Video | |
| Photo resolution(px) | 2560*1440 |
| Photo format | JPG |
| Video resolution(px) | 1920*1080 |
| Video format | MP4 |
| Storage(GB) | TF card(128GB) |
| Main function | |
| PIP | Yes |
| LRF detection range(m) | 1000(LRF version) |
| Ballistic calculator | Yes |
| Range unit selection | meter/yard |
| Gyroscope | Yes |
| Self-activated recording | Yes |
| Auto recording | Yes |
| Loop recording | Yes |
| Time stamp | Yes |
| Record audio | Yes |
| Beep sound | Yes |
| Exposure compensation | Yes |
| Interfaces | |
| USB Type-C | TYPE C |
| HDMI Output | Yes |
| Connections | |
| WiFi | Yes |
| Supported Apps | PardVision |
| Power Supply | |
| Battery type | Lithium Ion18650 |
| Output voltage(V) | 3.7 |
| Operating time(h,max) | 8 |
| External power supply(V) | USB Type-C |
| Environmental characteristic | |
| Degree of protection | IP67 |
| Operating temp(°C) | -20 – 50 |
| Recoil Power(J) | 1000G |
| Material | |
| Housing | Aluminium Alloy |
| Objective lens | Glass |
| Measurement | |
| Product dimension(L x W x H, mm) | L350mm*W88mm*H95mm(W/O Long Eyepiece) L410mm*W88mm*H95mm(W/ Long Eyepiece) |
| N.W/pcs(without battery, g) | 680g(W/O Battery) |
Features
- 5.6x Optical Magnification - designed to give the perfect balance of magnfication and FOV
- 1000m Laser Rangefinder with Ballistic software - that you can enter your projectile weight, speed, ballistic coefficient. This will then overlay an aim point onto the reticle for rapid precision aiming at range.
- 800*800 Circular IPS LCD display
- 70mm lens : F 2.4 focal length
- 2560*1440 CMOS Sensor
- Image shift zero
- Patented focus-free lens cap
- Long eye-relief display system (LEDs)
- 350m VSCEL Adjustable IR fill light
- Self-activated recording
- Completely new UI
- 4 Image modes (colour, black and white, green and yellow)
- Multi-functional control knob
- WiFi
- IP67 Waterproof
- 6000J Recoil resistance
Video
In the box?
- Pard DS35 LRF Unit
- Type C data line
- 18650 3.7V rechargeable lithium battery
- Manual
- Warranty card
- Focus throw lever
- Lens cap
- Rubber eye piece
- Neoprene cover
- IR Torch - 850nm VCSEL
Warranty
2 year warranty
