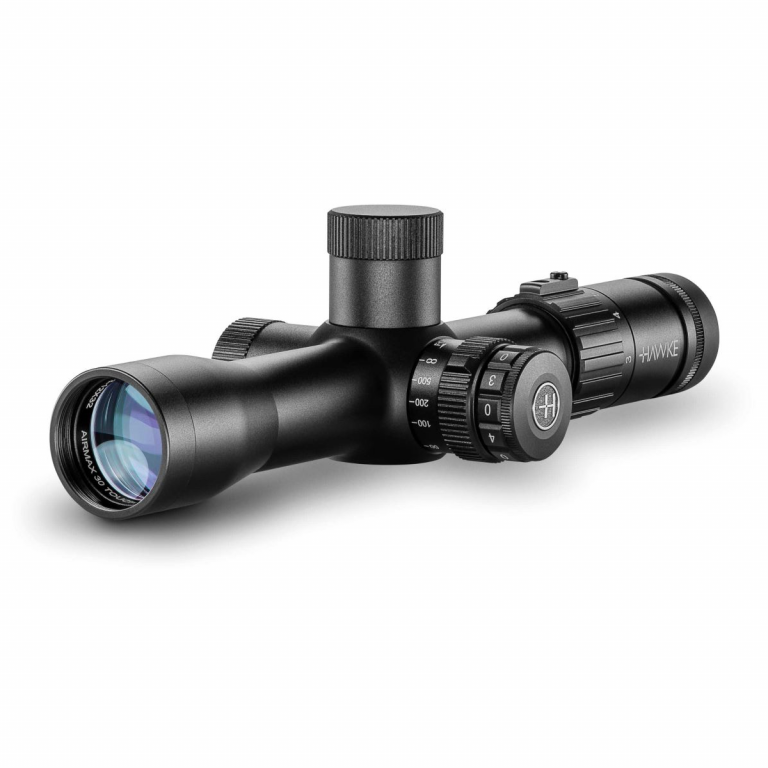

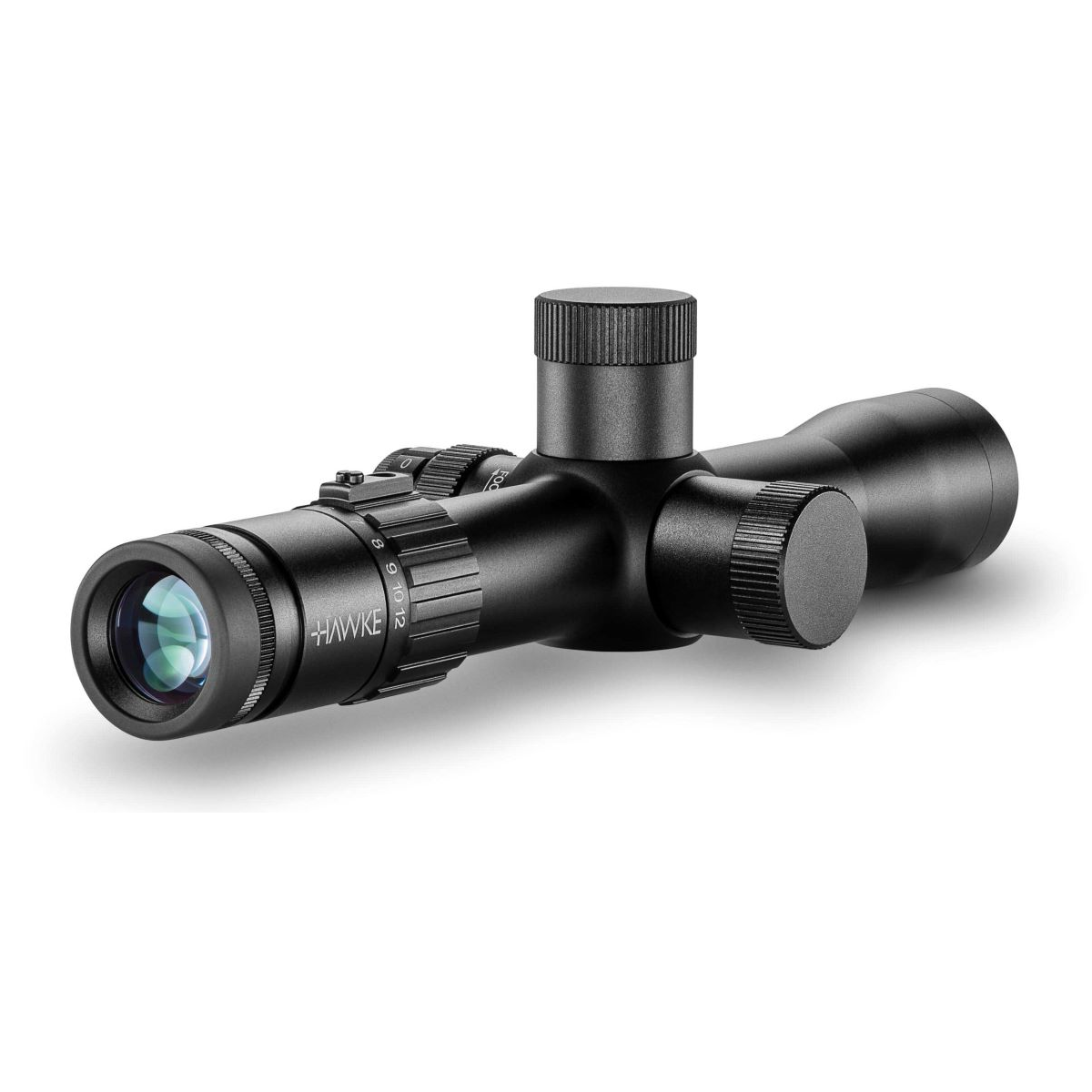

Hawke Airmax 30 Touch 3-12×32 AMX SFP IR HFT Rifle Scope
- Zero eye relief riflescope to suit minimum recoil
- Wide Angle optical system
- Lightweight and compact construction
- 16 layer fully multi-coated optics for exceptional clarity
- Side focus control for parallax adjustment to infinity
- 30mm mono-tube chassis for superior strength
- Glass etched reticle with red illumination
- 6 levels of brightness with off positions in-between
- 1⁄10 MRAD capped, resettable target turrets
- Fast focus, locking eyeball
- Zoom ring with index magnification click
The Hawke Airmax 30 Touch 3-12×32 AMX SFP IR Rifle Scope is a wide-angle optical system that allows for the shooter to get a very large field of view. Built with a 30mm mono-tube chassis, with 16 layers of fully multi-coated optics for exceptional clarity.
A side focus parallax adjustment wheel on the side of the Hawke rifle scope will allow you to fine-tune your focus from 10 yards to infinity. The Glass etched AMX reticle on the Hawke Airmax touch can be toggled through 6 different brightness levels of red illumination. 1⁄10 MRAD capped, resettable target turrets finish off the Hawke Airmax 30 Touch.
- Chassis: 30mm Mono-tube
- Optical System: 3-12×
- Objective Diameter: 32mm
- Reticle: AMX IR
- Illumination: Red - 6 Levels (with Off Positions In-between)
- Focus/Parallax: Side Focus - 9m / 10yds to Infinity
- Field of View: m @100m / ft @100yds 21.3 - 6.1m / 63.8 - 18.2ft
- Eye relief: 30mm / 1.2″
- Length: 266mm / 10.5″
- Weight: 572g / 20.2oz
- Waterproof
- Shockproof
- Nitrogen purged
- All calibre rated
- Material: Aluminium
- Exit Pupil: 10.7 - 2.7mm / 0.42 - 0.11
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated - 16 Layers
- Power Selector Style: Knurled Posi-Grip
- Focal Plane: Second Focal Plane (SFP)
- Elevation Increment: 1⁄10 MRAD
- Elevation Adjustment Range: 75 MRAD
- Windage Increment: 1⁄10 MRAD
- Windage Adjustment Range: 75 MRAD
- Turret Caps: YES
- Turret Type: Target
- Warranty: Hawke Worldwide Warranty
- Made in China
- Zero eye relief riflescope to suit minimum recoil
- Wide Angle optical system
- Lightweight and compact construction
- 16 layer fully multi-coated optics for exceptional clarity
- Side focus control for parallax adjustment to infinity
- 30mm mono-tube chassis for superior strength
- Glass etched reticle with red illumination
- 6 levels of brightness with off positions in-between
- 1⁄10 MRAD capped, resettable target turrets
- Fast focus, locking eyeball
- Zoom ring with index magnification click

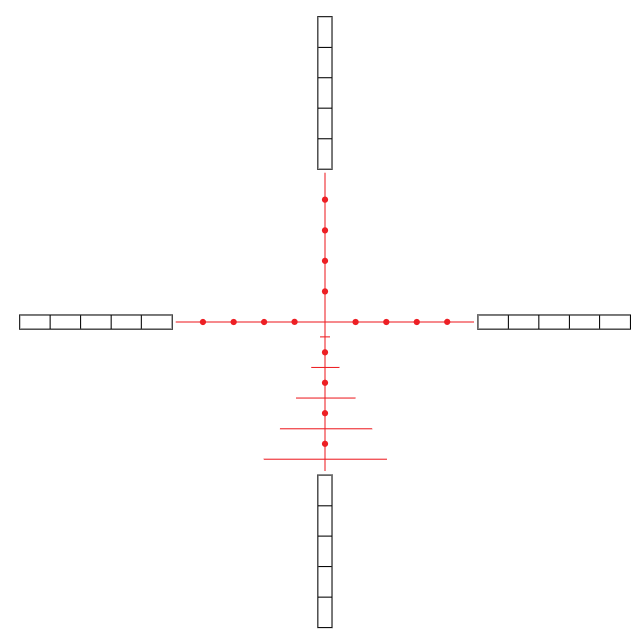

AMX RETICLE:
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
- Hawke Airmax 30 Touch 3-12×32 AMX SFP IR HFT Rifle Scope
- Instruction Manual
- Reticle Booklet
- Lens Cloth
- Rubber Eyepiece
- Bikini Style Lens Covers
- 3" Sidewheel
- Hex Key
- CR2032 Battery
- Hawke Worldwide Warranty
