HAWKE Airmax 30 WA SF 4-16x50 AMX IR Reticle Rifle Scope HAWKE Airmax 30 WA SF 4-16x50 AMX IR Reticle Rifle Scope  Hawke Airmax 30 WA SF 4-16x50 SFP 0.1MRAD AMX IR Rifle Scope  Hawke Airmax 30 WA SF 4-16x50 SFP 0.1MRAD AMX IR Rifle Scope

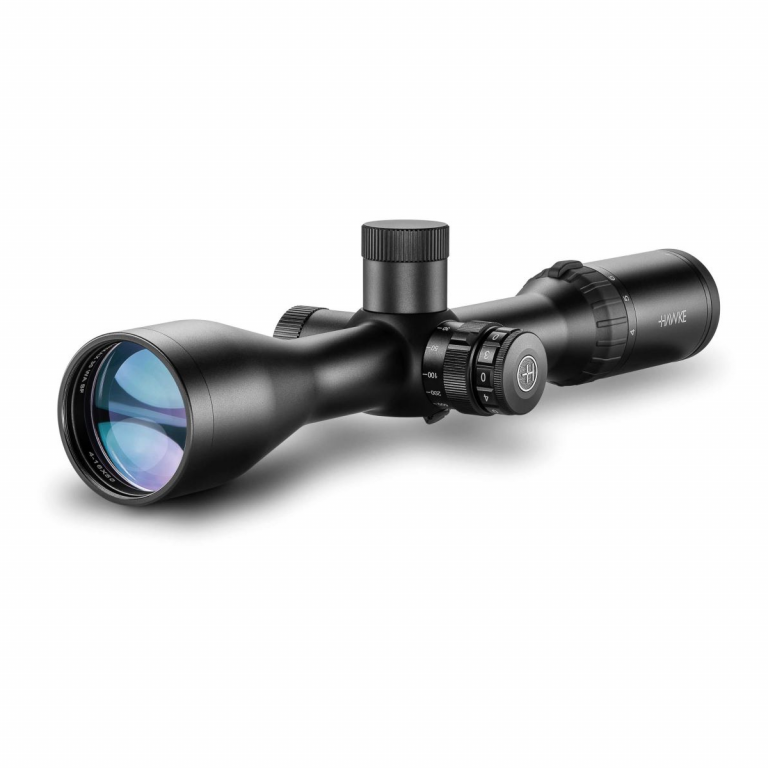

HAWKE Airmax 30 WA SF 4-16x50 AMX IR Reticle Rifle Scope
Hawke
SKU#13311 Hawke

Hawke Airmax 30 WA SF 4-16x50 SFP 0.1MRAD AMX IR Rifle Scope

2 in stock
  • Capped Target Turrets
  • 30mm Mono-Tube Chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 Layer Fully Multi-Coated Lenses
  • High Torque Zoom Ring
  • Fast Focus Eyebell
  • AMX Reticle Designed For Airguns
TRY YOUR CHANCE AT WINNING
PRICE MATCHSeen it Cheaper? We Could Match It!
EXCHANGE GUARANTEE60 day Scope Out Guarantee
KLARNA AVAILABLEOn All Our Products
TRADE IN & PART EXWe'll take your old Optics
Please be aware that during our Black Friday sales period there may be a small delay in the dispatch of your order.
Product Information FIND OUT MORE
DESCRIPTION

NEW 2021 MODEL

Specialist scopes designed by Airgunners for Airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All caliber rated.

Hawke No-Fault Lifetime Warranty.

SPECS

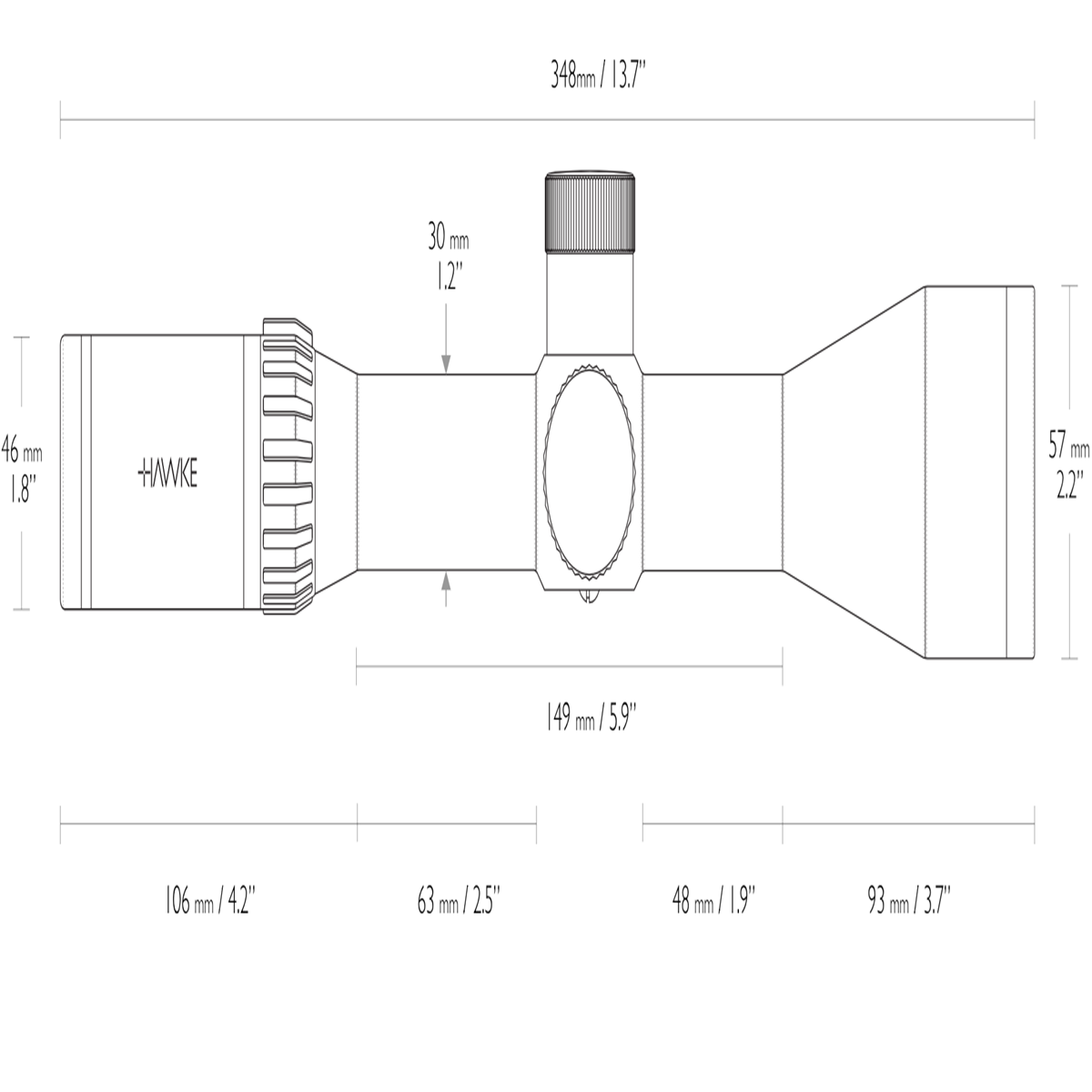

  • Length: 348mm/13.7"
  • Weight: 760g/26.8oz
  • Eye relief: 102mm/4"
  • Focus/Parallax - Side Focus 9m - ∞/10yds - ∞
  • Field of View: 10.2-2.6m @100m/30.7-7.7ft @100yds
  • Exit Pupil: 12.5-3.1mm/0.49-0.12"
  • Chassis 30mm Mono-tube
  • Optical System 4-16x
  • Objective 50mm
  • Illumination Red (6 Levels With Off Positions In-Between)
  • Reticle AMX IR
  • Elevation Increment 1⁄10 MRAD
  • Elevation Adjustment Range 27 MRAD
  • Windage Increment 1⁄10 MRAD
  • Windage Adjustment Range 27 MRAD
  • Material Aluminium
  • Ocular Type Fast Focus
  • Lens Coating Fully Multi-Coated - 16 Layers
  • Power Selector Style Knurled Posi-Grip
  • Focal Plane Second Focal Plane (SFP)
  • Turret Caps Yes
  • Turret Type Capped Target Turrets
FEATURES
  • Capped Target Turrets
  • 30mm Mono-Tube Chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 Layer Fully Multi-Coated Lenses
  • High Torque Zoom Ring
  • Fast Focus Eyebell
  • AMX Reticle Designed For Airguns
RETICLE

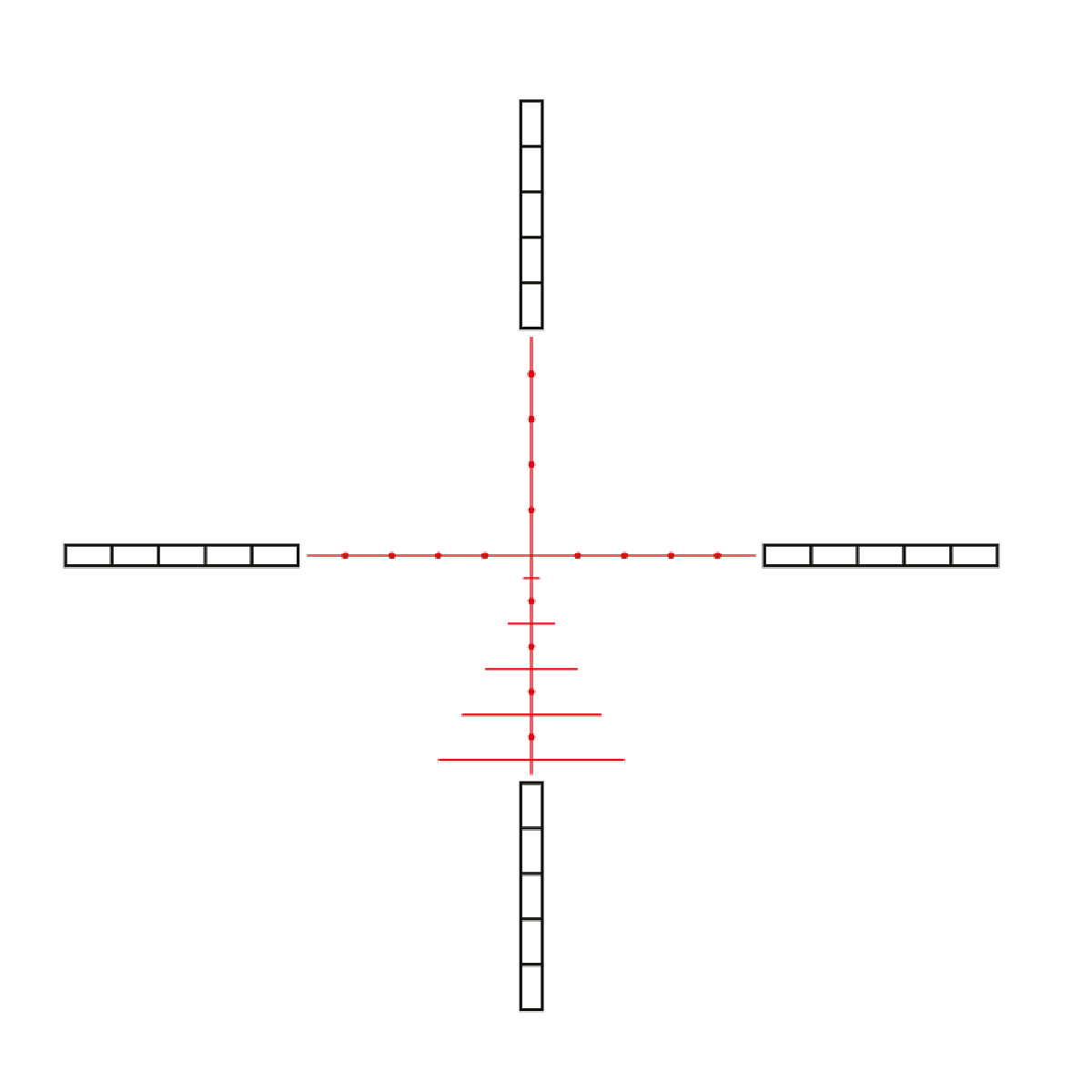

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.


WHAT'S IN THE BOX
  • HAWKE Airmax 30 WA SF 4-16x50 AMX IR Reticle Rifle Scope
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • 4" Sunshade
  • Metal Flip-Up Lens Covers (61052 & 61109)
  • Flip-Up Removal Tool
  • 4" Sidewheel
  • Hex Key
  • CR2032 Battery
WARRANTY
  • Hawke No-Fault Lifetime Warranty
