HIKMICRO EXPLORER E20 Smartphone Clip-In Thermal Imager for Android - 9.7mm <50mK 256x192px 12μm
- V0x uncooled focal plane arrays sensor with 256x192 resolution
- NETD: < 50mK [@25°C, F#=1.0]
- Portable size: 26g Weight
- USB Type-C Interface (Android)
- Support 3D DNR, image enhancement
- Support video recoridng and snapshot
#419
#423
#420
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

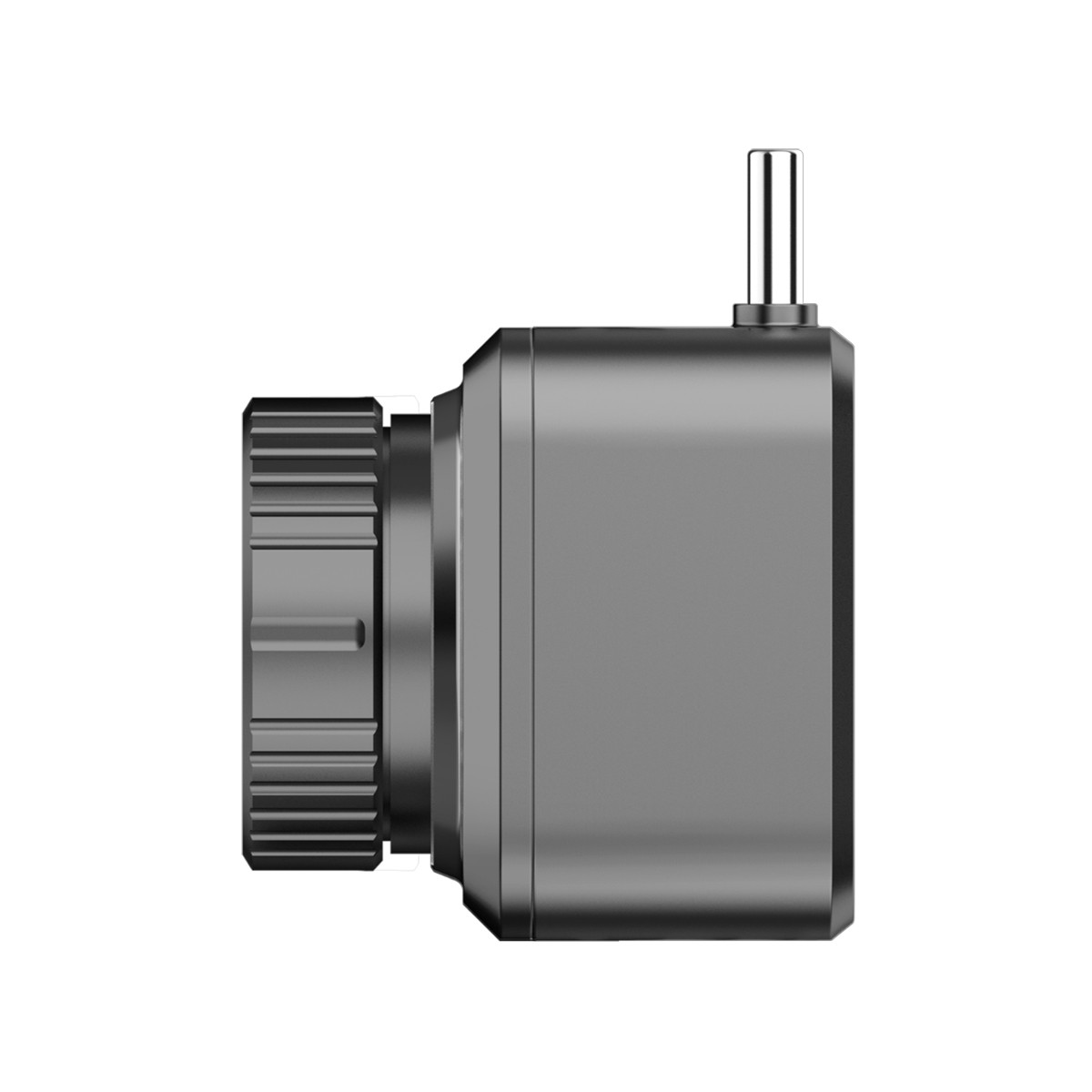

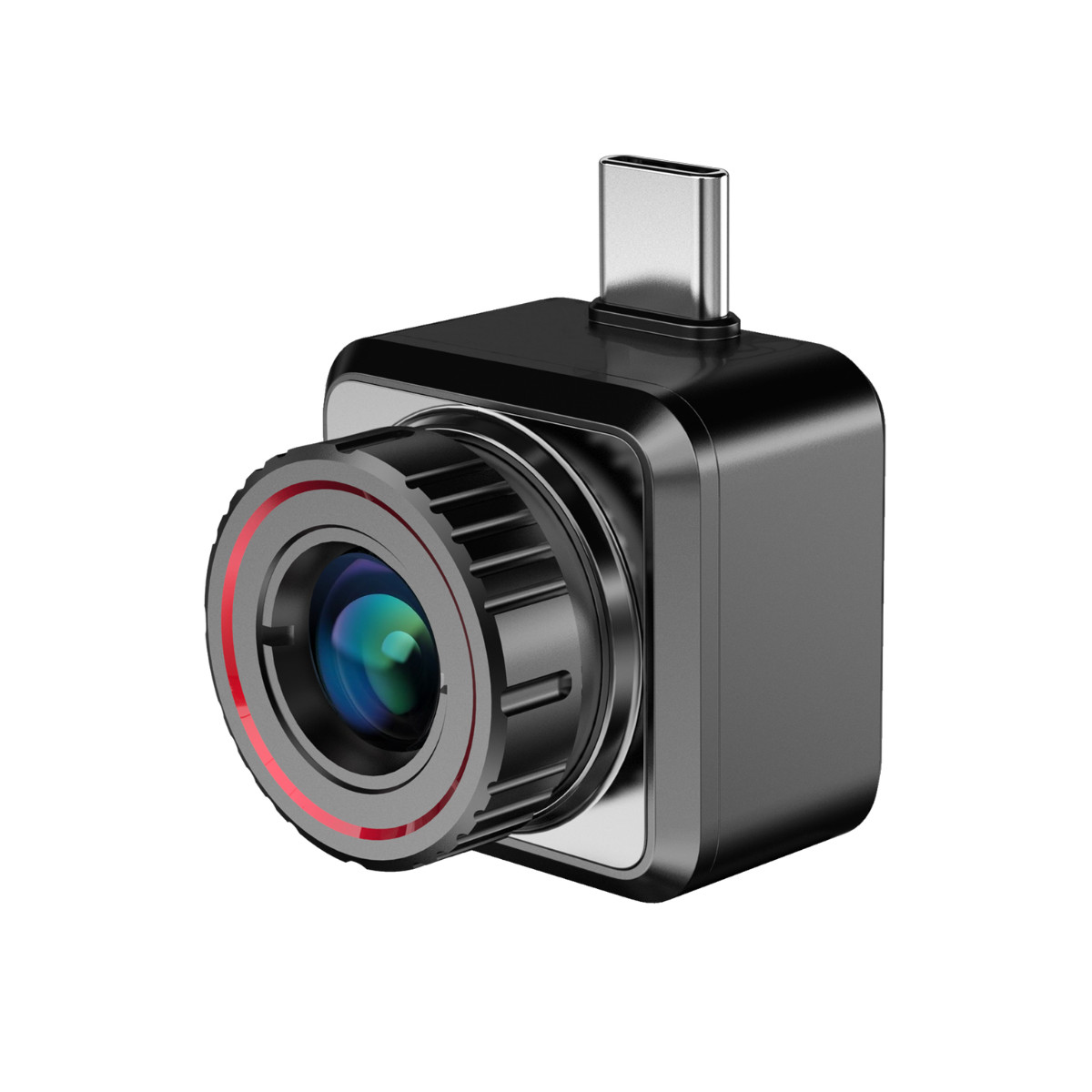

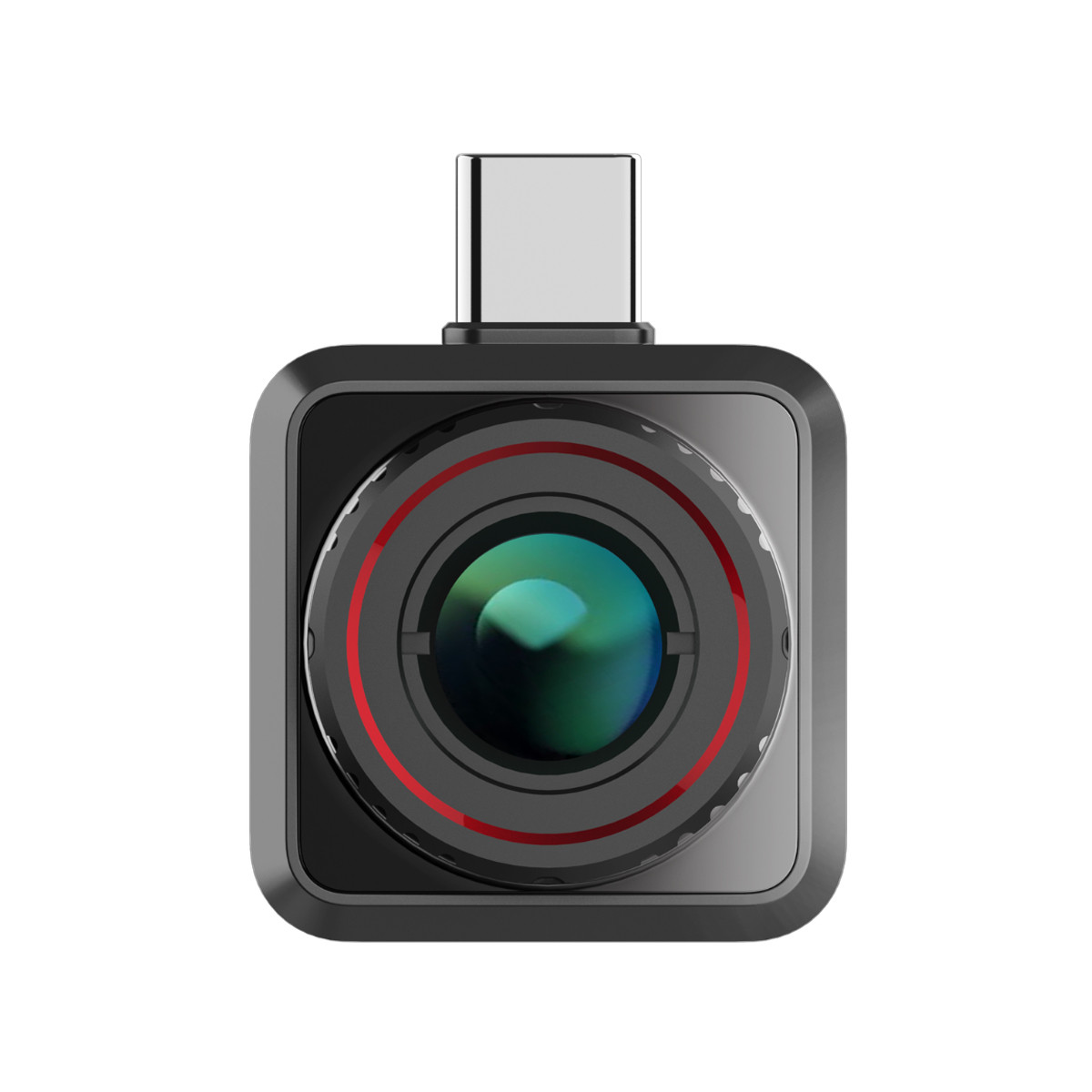

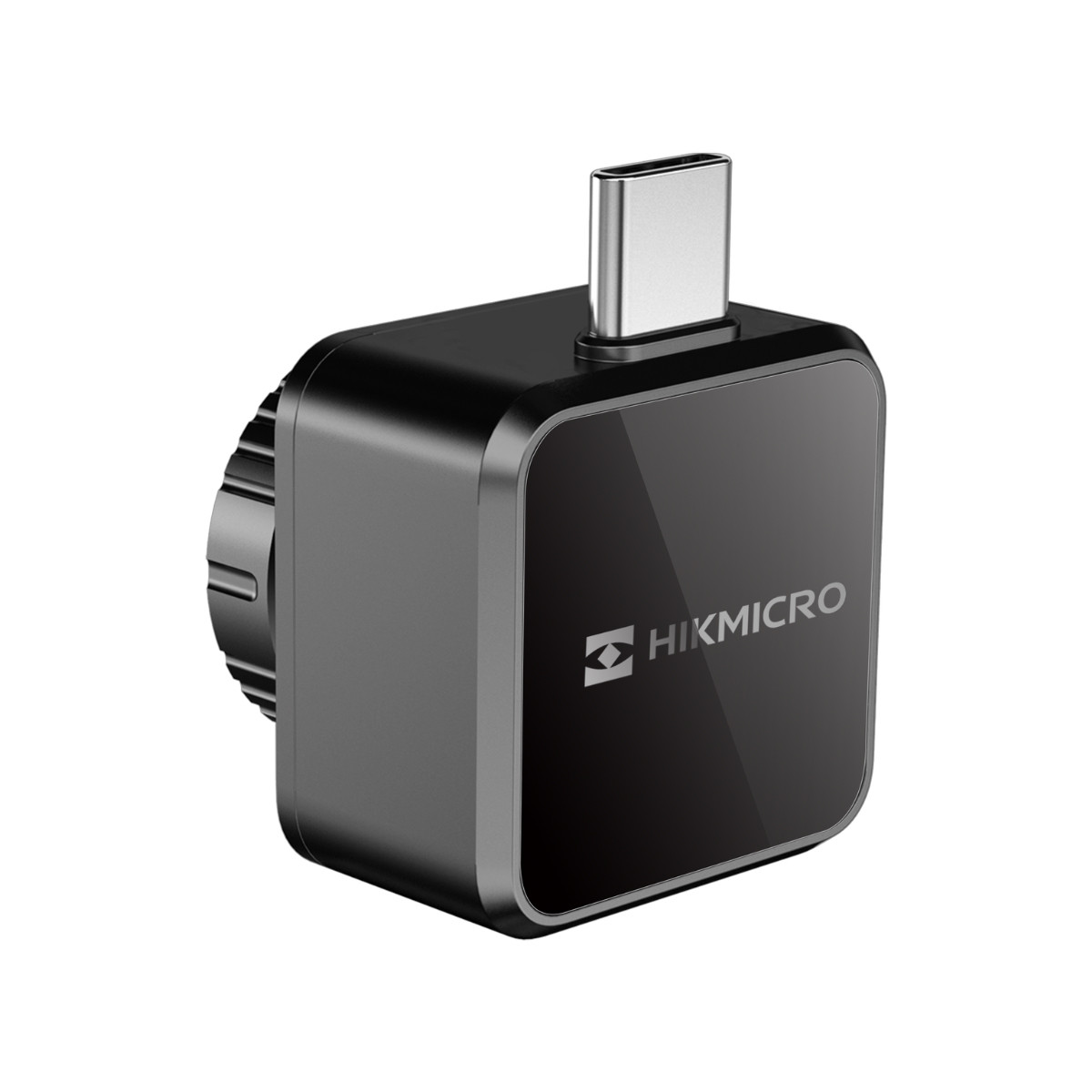

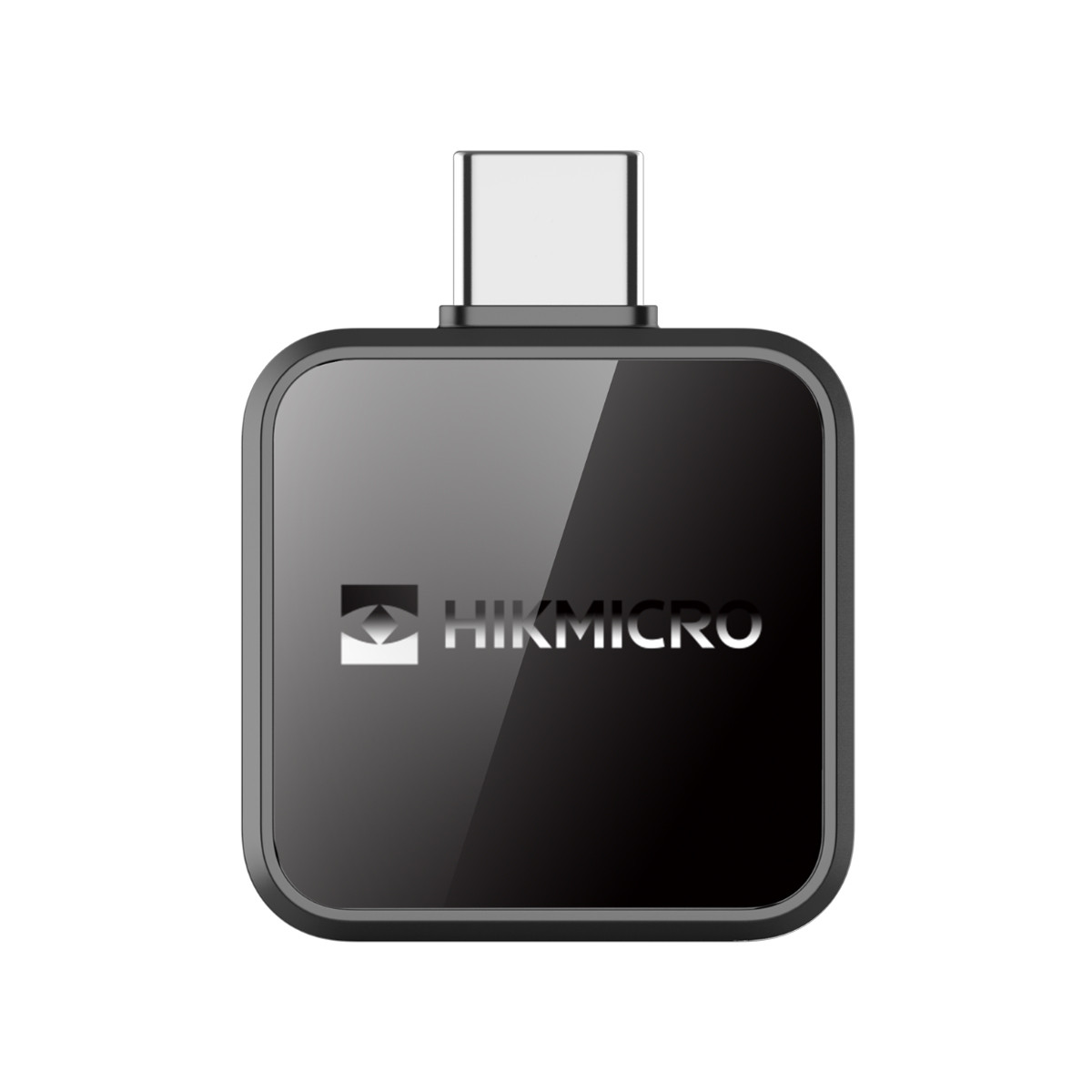

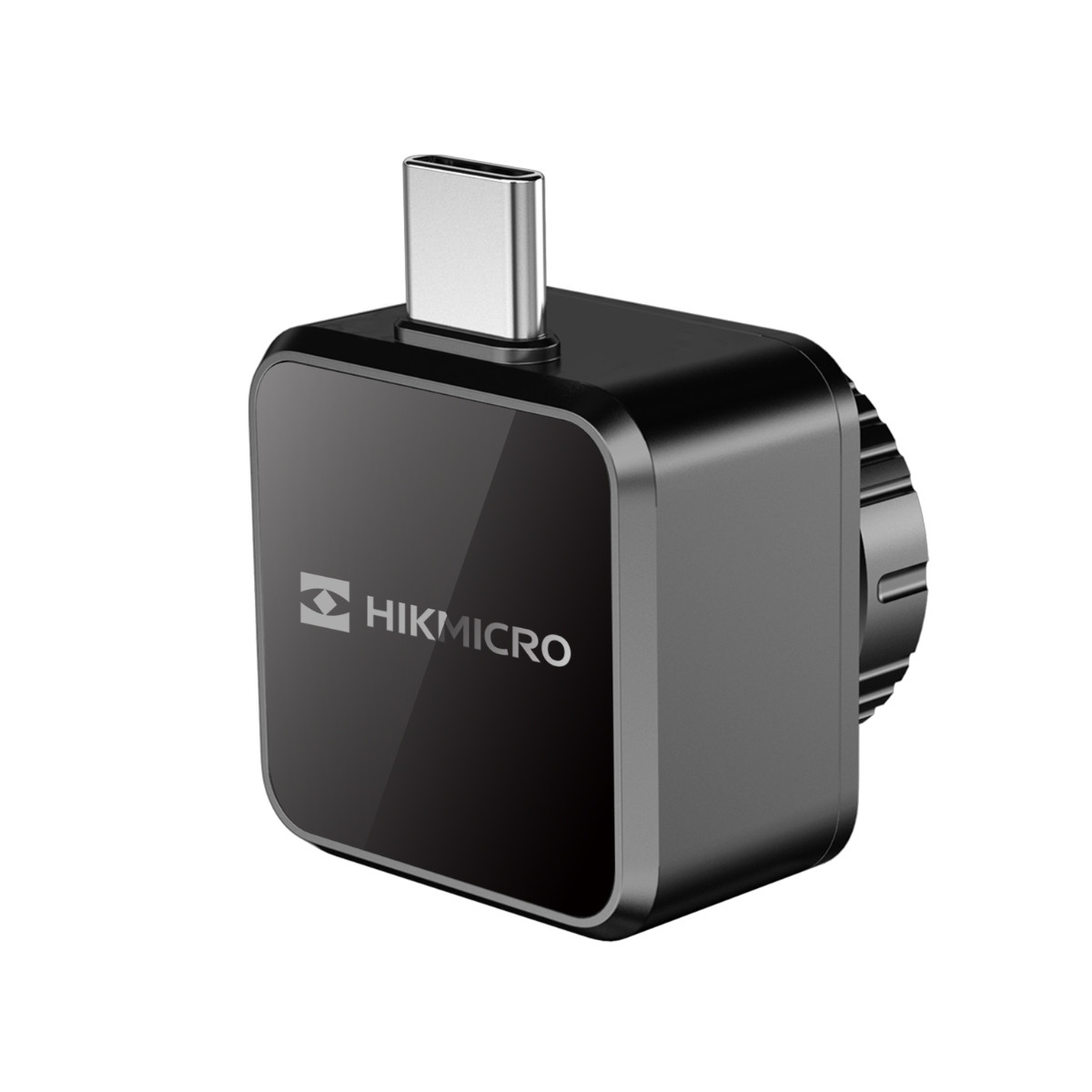

The HIKMICRO EXPLORER E20 Clip-In Thermal Imager is a radically small, versatile, and powerful device. It slots straight into any Android phone or tablet that has a USB Type C socket and transforms the way the user can see the world - and at the very low price of £329.99.
Weighing in at just 26 grams and measuring under 27mm in each dimension, the EXPLORER requires no batteries, drawing only minimal power from the smartphone or tablet. It can be carried easily, ready for near-instant use for spotting birds, animals, people (or indeed any other heat source) in any lighting conditions, including full darkness.
Fitted with a 256x192 thermal sensor and 10mm focal length lens system, the EXPLORER delivers similar thermal performance levels to the best-selling HIKMICRO Lynx 10mm monocular, allowing a good level of image detail and allows you to locate small animals and birds with ease.
The explorer is controlled by the HIKMICRO Sight app and you get access to the same features as the other HIKMICRO products including 4 colour palettes, digital zoom, and the ability to capture image and video.
iPhone version coming soon!
Click HERE to check phone compatibility.
- Thermal Module
- Image Sensor V0x Uncooled Focal Plane Arrays
- Max. Resolution 256x192
- Frame Rate 50 Hz
- Pixel Internal 12μm
- Response Waveband 8μm to 14μm
- NETD < 50mK [@25°C, F#=1.0]
- Lens (focal length) 9.7mm
- Detection Range 970m
- Aperture F1.0
- Magnification 1x to 2x [Digital zoom 2x]
- FOV (HxV), Degrees m@100m 18.1°x13.6° / 31.8mx23.8m
- Image Display

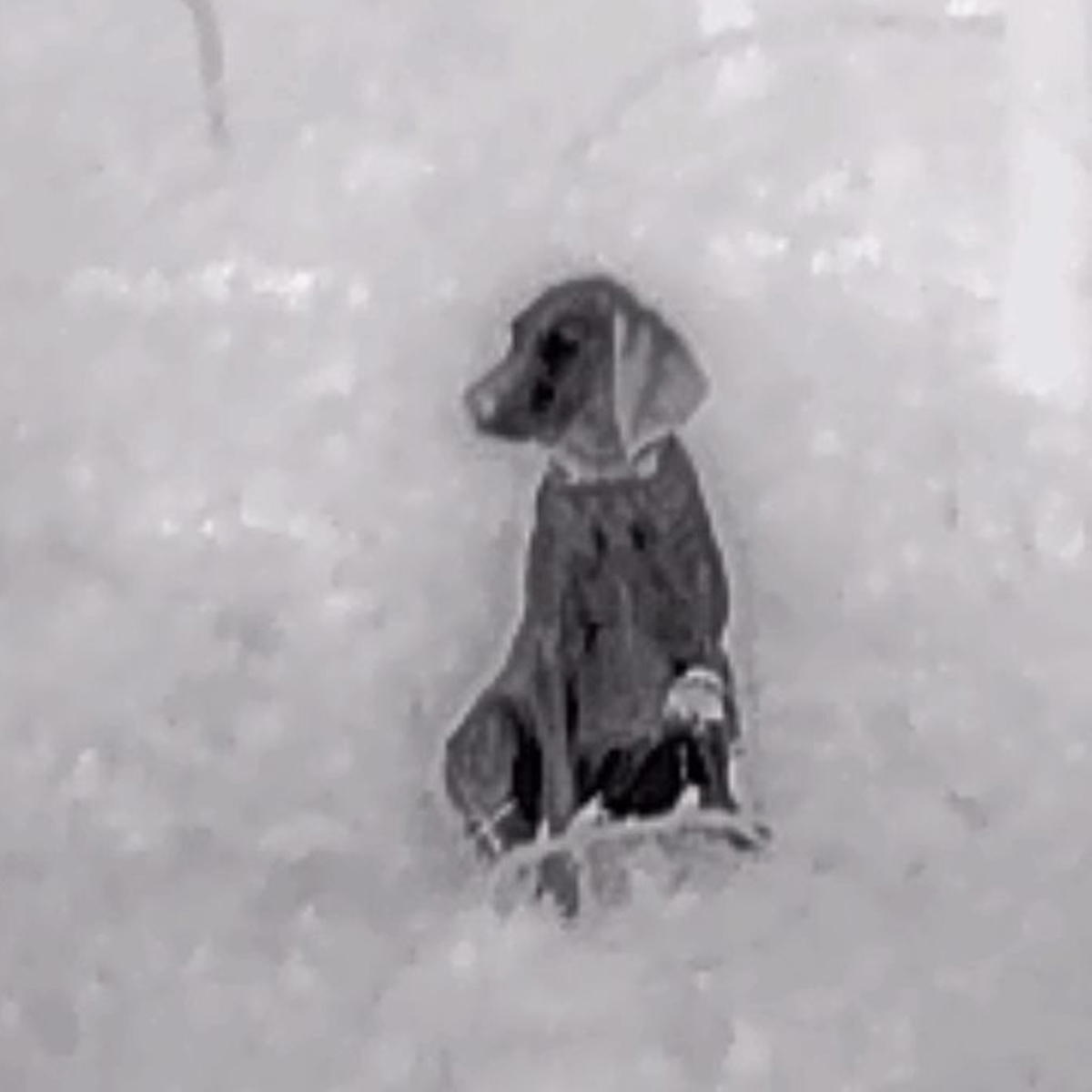

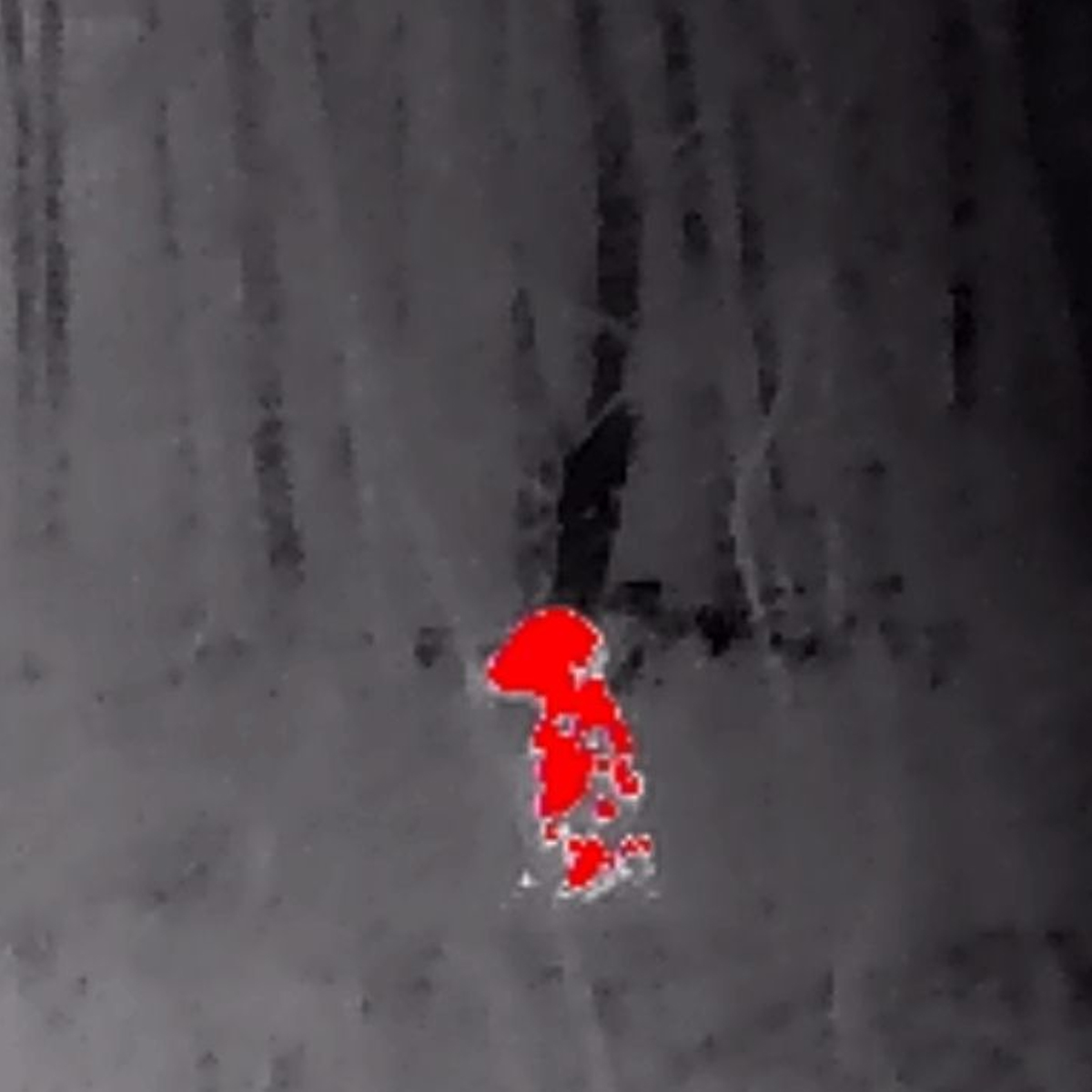

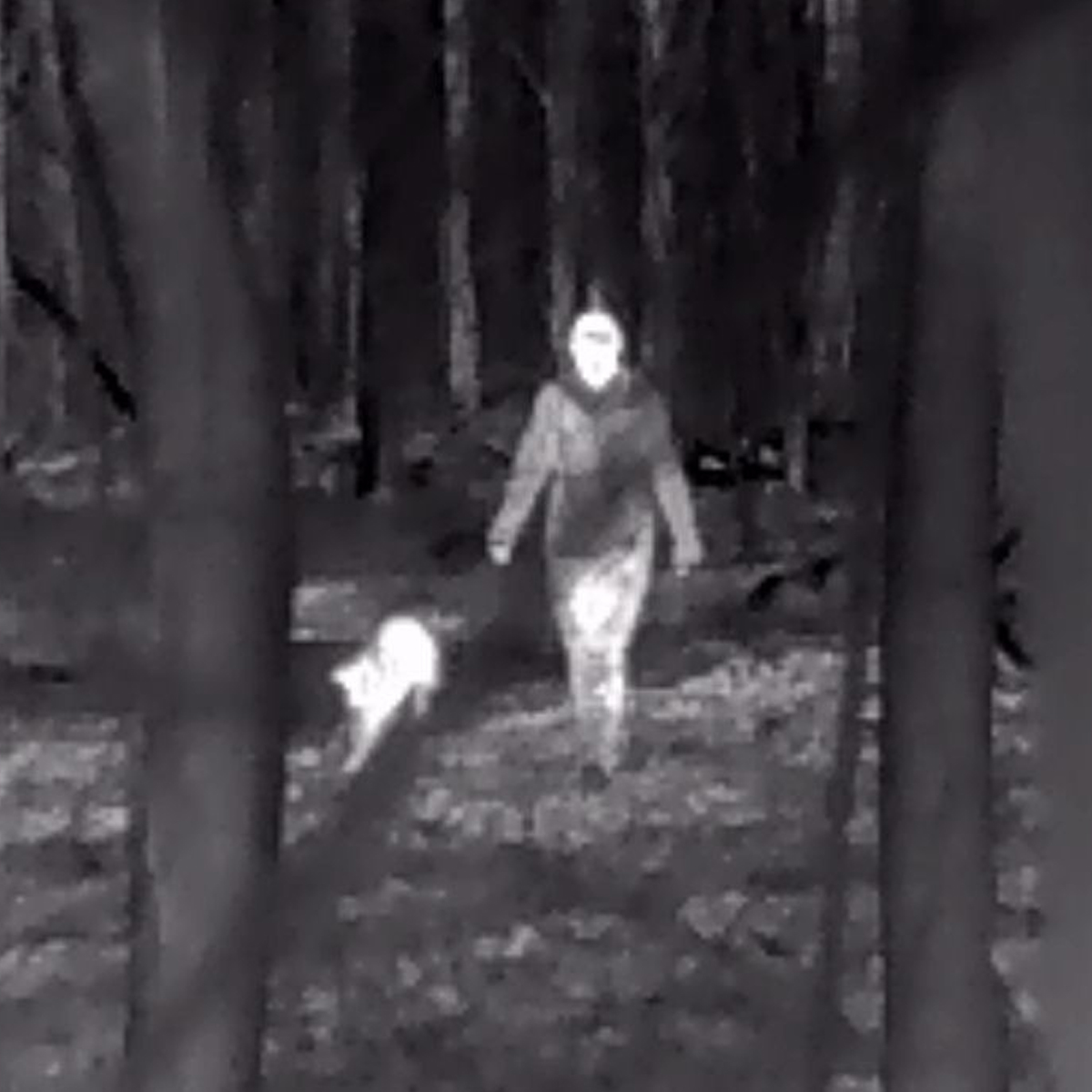

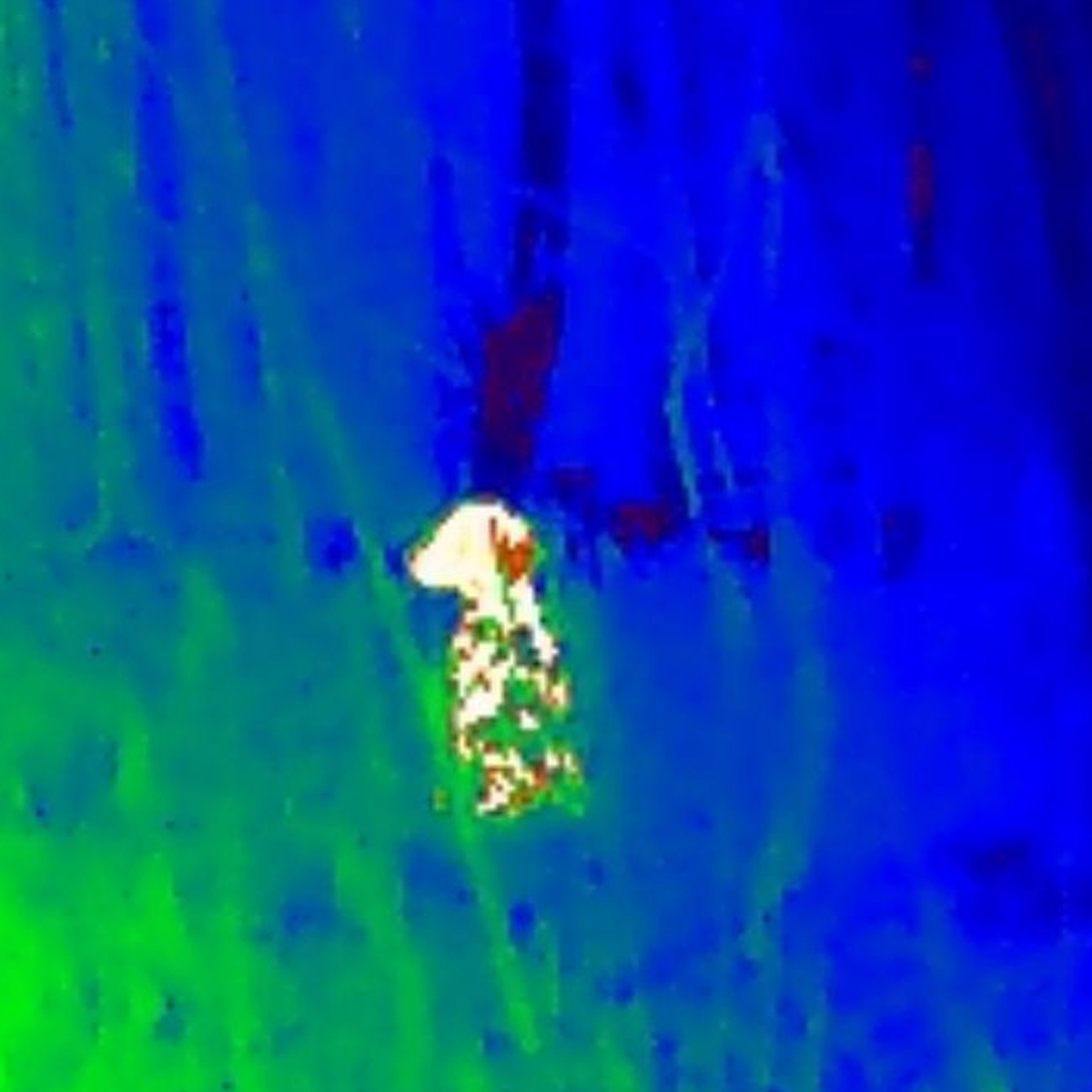

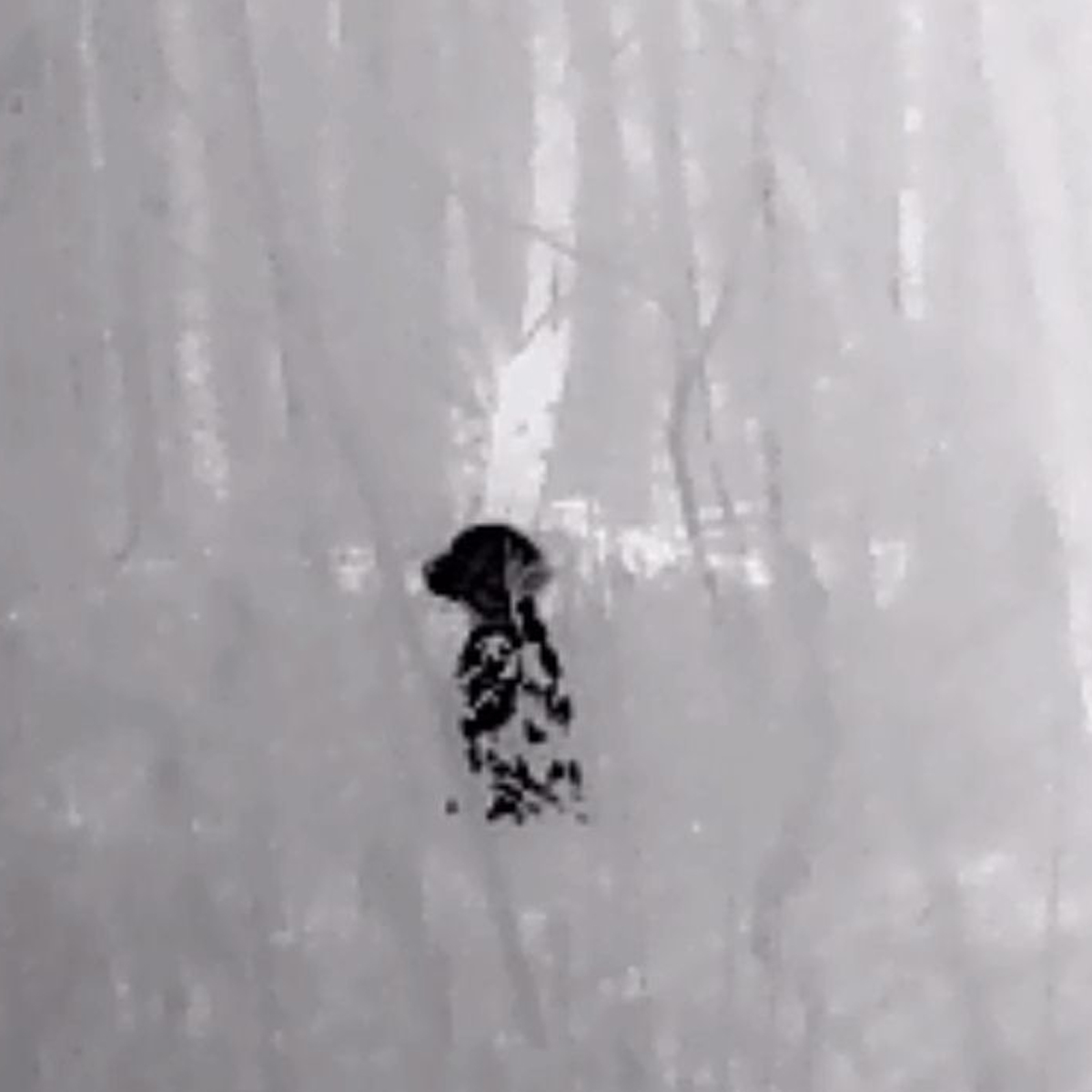

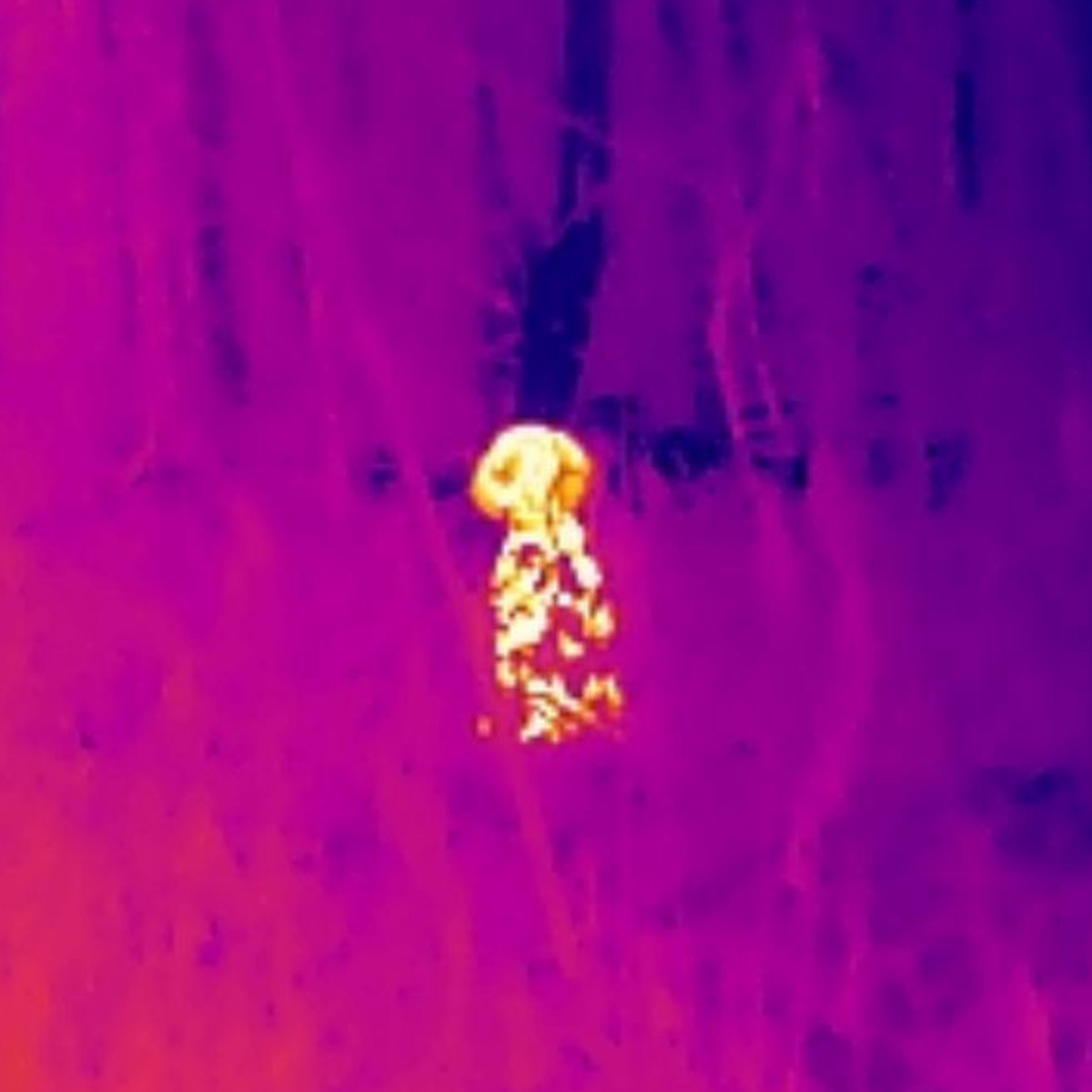

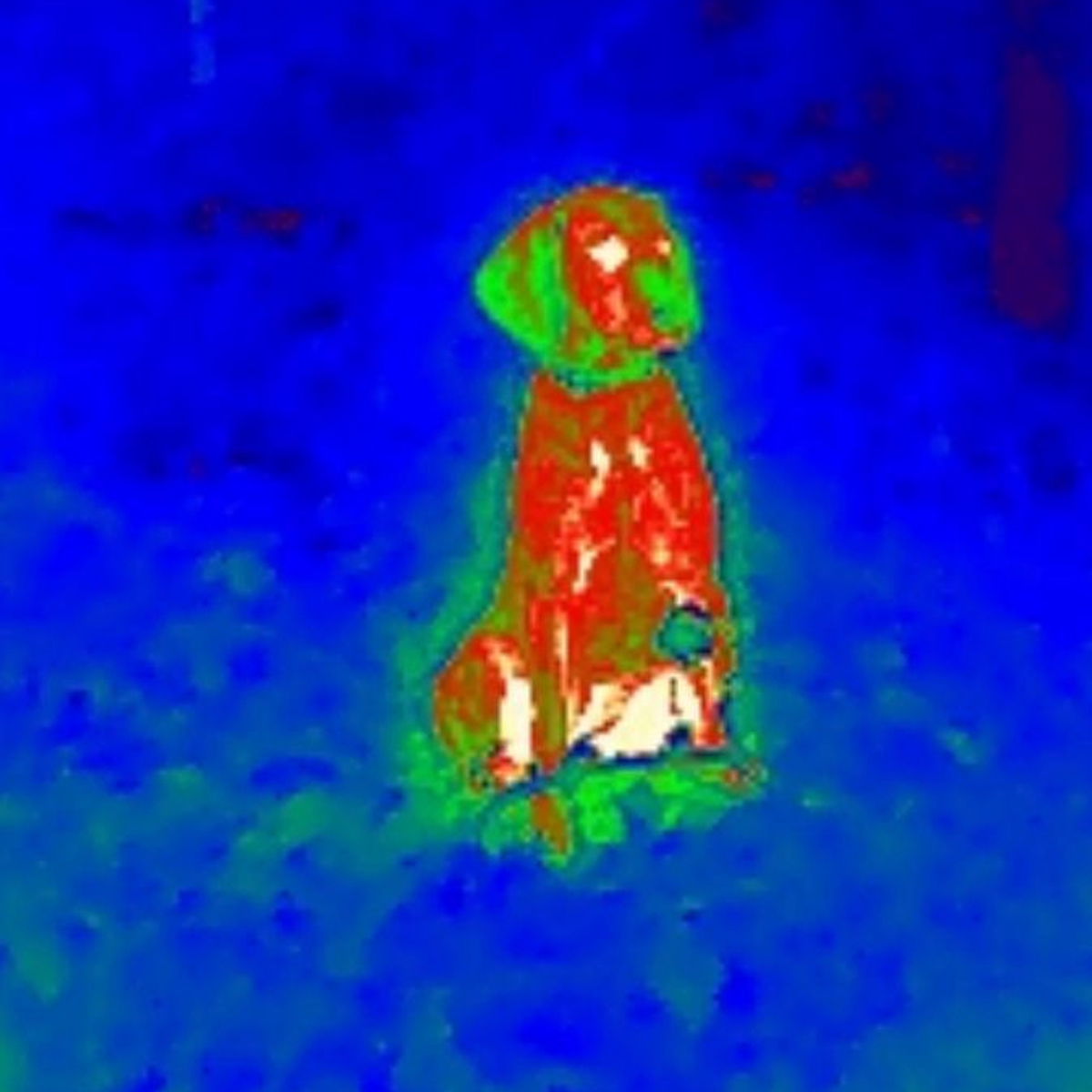

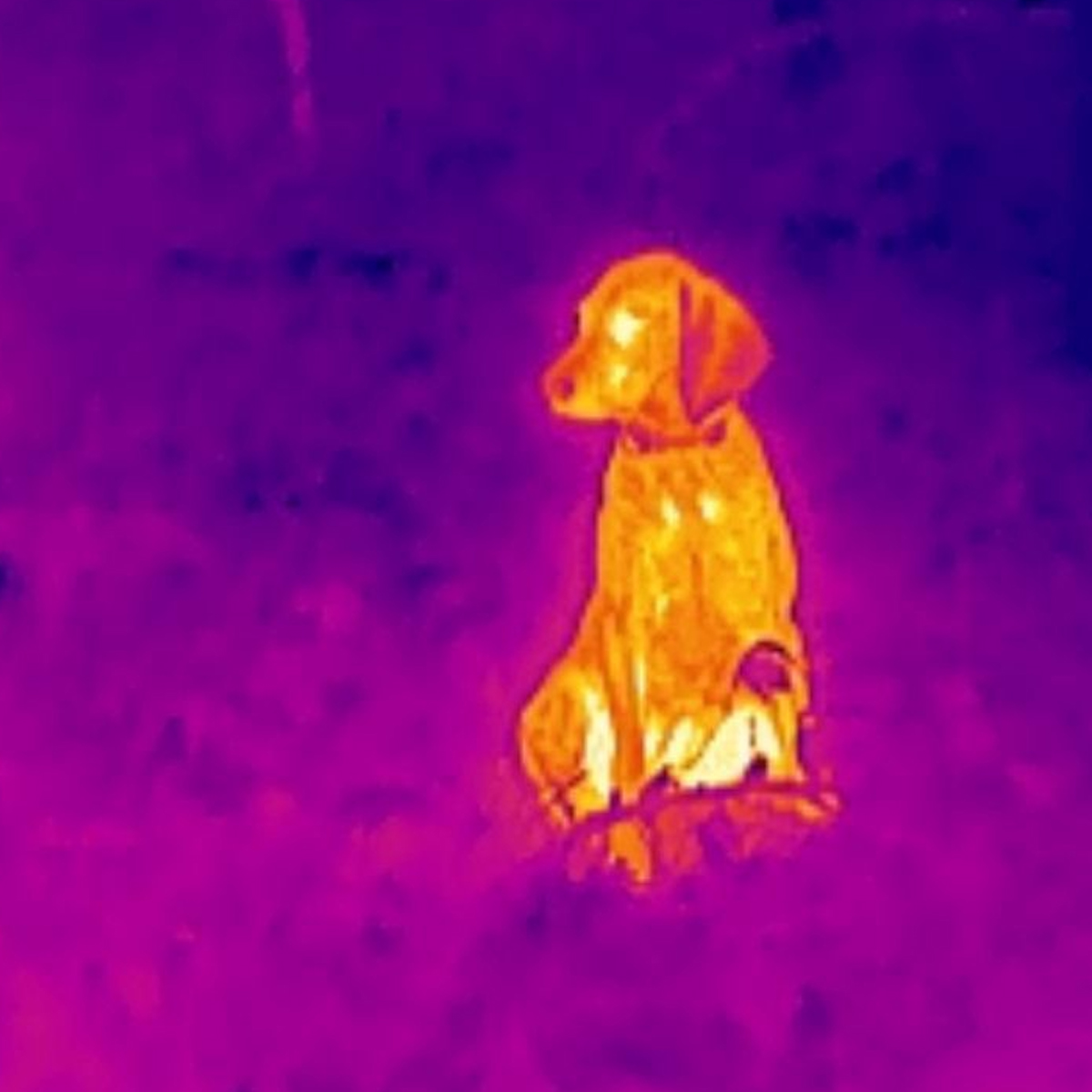

- Image Mode Birdwatching/ Red Hot/ White Hot/ Black Hot/ Rainbow/ Ironbow
- Contrast Adjustment Adjustable contrast from 0 to 100 by slider control
- Brightness Adjustment Adjustable contrast from 0 to 100 by slider control
- System
- Record Video Yes
- Capture Snapshot Yes
- PIP Yes
- Digital Magnetic Compass Yes
- Hot Track Yes
- System
- Power Supply USB Type-C interface
- Power Consumption 360mW
- Working Temperature -10°C TO 50°C
- Dimension 26.6mm x 26.6mm x 27.2mm
- Weight 26g
- Protection Level IP40
- V0x uncooled focal plane arrays sensor with 256x192 resolution
- NETD: < 50mK [@25°C, F#=1.0]
- Portable size: 26g Weight
- USB Type-C Interface (Android)
- Support 3D DNR, image enhancement
- Support video recoridng and snapshot
- HIKMICRO EXPLORER E20 Smartphone Clip-In for Android
- USB Type-C Cable
- Bag
- Quick Start Guide
- Battery: 1 Year
- Full Product: 3 Years
- Detector: 10 Years
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
