HIKMICRO PocketE <50mK 96x96px Thermal VOx Detector Camera
The HIKMICRO PocketE features a high-resolution VOx detector, 0.3 MP optical camera, and 3.5” LCD touchscreen, enabling quick detection of hidden issues and precise temperature measurement. With a -20°C to 350°C range, it's perfect for building inspection, HVAC, electrical, and mechanical maintenance. The 25 Hz frame rate ensures smooth imaging, while Wi-Fi connectivity allows real-time image sharing. Compact and powerful, the PocketE is a reliable thermography tool, always ready whenever you need it.
#503
#504
#501
#505
#502
The HIKMICRO PocketE is a compact yet powerful thermal imaging tool designed to bring precision and efficiency to professional inspections. Equipped with a high-resolution HIKMICRO VOx detector and an integrated 0.3 MP optical camera, it allows users to detect hidden issues with ease. The large 3.5-inch LCD touchscreen provides an intuitive interface for quickly identifying and measuring temperature variations across a wide range from -20°C to 350°C, making it an indispensable device for applications such as building inspections, HVAC maintenance, electrical diagnostics, and mechanical equipment monitoring.
With an infrared resolution of 96 × 96 pixels, enhanced by HIKMICRO's SuperIR image enhancement technology, the PocketE delivers clear and detailed thermal images. Its impressive <50mK NETD (Noise Equivalent Temperature Difference) ensures high sensitivity, allowing users to detect even the most subtle temperature changes. The device operates at a smooth 25 Hz frame rate, ensuring fluid image rendering, crucial for fast-paced inspections. A versatile range of imaging modes, including Thermal, Fusion, Picture-in-Picture (PIP), and Blending, provides users with multiple ways to analyse and interpret thermal data efficiently.
Designed for practicality and convenience, the PocketE features an LED work light to illuminate dimly lit areas, along with a built-in 4 GB memory capable of storing approximately 30,000 images. The device also supports real-time image sharing via Wi-Fi, enabling seamless collaboration and instant reporting. Its rechargeable lithium-ion battery provides up to four hours of continuous operation, with a quick 2.5-hour charging time via USB Type-C. The robust IP54-rated construction ensures durability in demanding environments, and it has been drop-tested to withstand falls from up to 2 metres.
Accuracy is at the core of the PocketE, offering temperature measurements with a precision of ±2°C or ±2%, whichever is greater. The 112:1 distance-to-spot ratio allows for accurate targeting of heat sources, while measurement tools such as Centre Spot, Hot Spot, and Cold Spot tracking enhance analysis capabilities. The PocketE also supports auto, manual, and one-tap level and span adjustments, making it simple to fine-tune thermal images for optimal clarity.
Despite its advanced functionality, the HIKMICRO PocketE remains lightweight and highly portable, weighing only 218 grams and measuring just 138.45 × 85.2 × 23.6 mm. Whether you’re a professional in the field of construction, maintenance, or electrical diagnostics, this device ensures that high-performance thermal imaging is always within reach. Compact, durable, and feature-packed, the HIKMICRO PocketE is an essential tool for professionals who require reliable and accurate thermography on the go.
Infrared Image
- IR Resolution: 96 × 96 (9,216 pixels)
- SuperIR: Yes, on captured images and live view
- Distance to Spot Ratio (D:S): 112:1
- Image Frequency: 25 Hz
- NETD: < 50 mK (@ 25°C, F#=1.0)
- Detector Pitch: 12 μm
- Spectral Range: 7.5 to 14 μm
- Focal Length: 1.35 mm
- Field of View (FOV): 50° × 50°
- F-number: F1.0
- Spatial Resolution (IFOV): 8.89 mrad
- Focus Mode: Focus Free
- Minimum Focus Distance: 0.1 m (0.33 ft)
Image Display
- Visual Camera: 640 × 480 (0.3 MP)
- Display: 320 × 240 resolution, 3.5" LCD Touch Screen
- Screen Brightness: Manual
- Digital Zoom: 1.0x to 4.0x continuous
- Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
- Image Modes: Thermal, Visual, Fusion, PIP, Blending
Measurement and Analysis
- Object Temperature Range: -20°C to 350°C (-4°F to 662°F)
- Accuracy: Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)
- Measurement Tools: Centre Spot, Hot Spot, Cold Spot
- Level and Span Mode: Auto, Manual, 1-Tap Touch-screen
Data Storage and Communication
- Storage Media: Built-in 4 GB flash memory (user available space is less than the nominal capacity)
- Image Storage Capacity: Approx. 30,000 images
- Annotations: Text note, max. 255 characters
- Image File Format: Radiometric JPEG
- Video Storage Capacity: Approx. 20 hours
- Video File Format: MP4
General
- Wi-Fi: 802.11 b/g/n (2.4 GHz)
- USB Interface: USB Type-C
- LED Light: Yes
- Power Supply: USB-C (5V/2A)
- Battery Type: Rechargeable Li-ion battery
- Power Saving Mode: Auto Power-off and manual sleep
- Battery Operating Time: Approx. 4 hours
- Battery Charging Time: Approx. 2.5 hours (fully charged)
- Protection Level: IP54
- Working Temperature Range: -10°C to 50°C (14°F to 122°F)
- Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: < 95% non-condensing
- Weight: Approx. 218 g (0.481 lb)

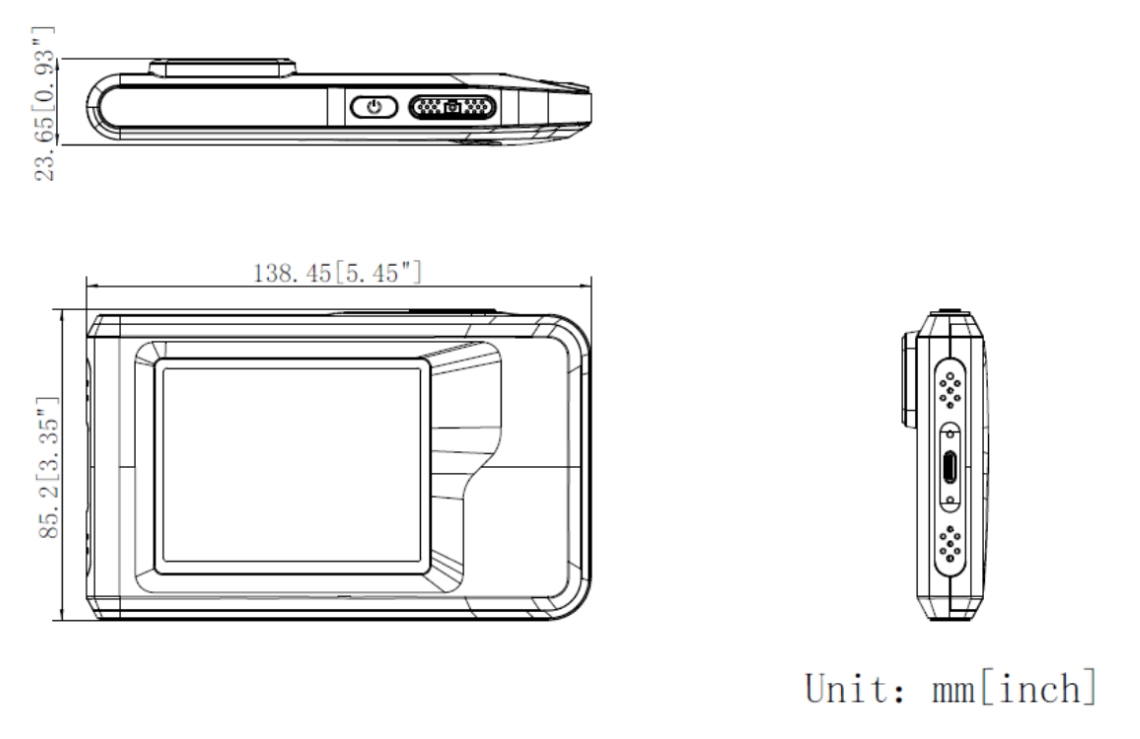

- Dimensions: 138.45 × 85.2 × 23.6 mm (5.45 × 3.35 × 0.93 in)
- Tripod Mounting: UNC 1⁄4”-20
- Drop Test Height: 2 m (6.56 ft)
- IR resolution: 96 × 96 (9,216 pixels), NETD: < 50 mK (@ 25°C, F# = 1.0)
- Support SuperIR Image enhancement technology on captured image and live view
- 112:1 Distance to spot ratio (D:S)
- Accurately measure temperature from -20°C to 350°C ( -4°F to 662°F)
- Accuracy: Max. (± 2°C/3.6°F, ± 2%)
- 25 Hz image frequency
- Thermal, Fusion, PIP, Visual, and Blending modes
- Manual, automatic, and 1-Tap level and span
- High temperature alarm
- Built-in 4 GB memory
- LED work light
- 1.0x to 4.0x continuous digital zoom
- 0.3MP visual camera
- Up to 4 hours continuous running
- HIKMICRO PocketE <50mK 96x96px Thermal VOx Detector Camera
- Unit has a 3 year HIKMICRO warranty
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
