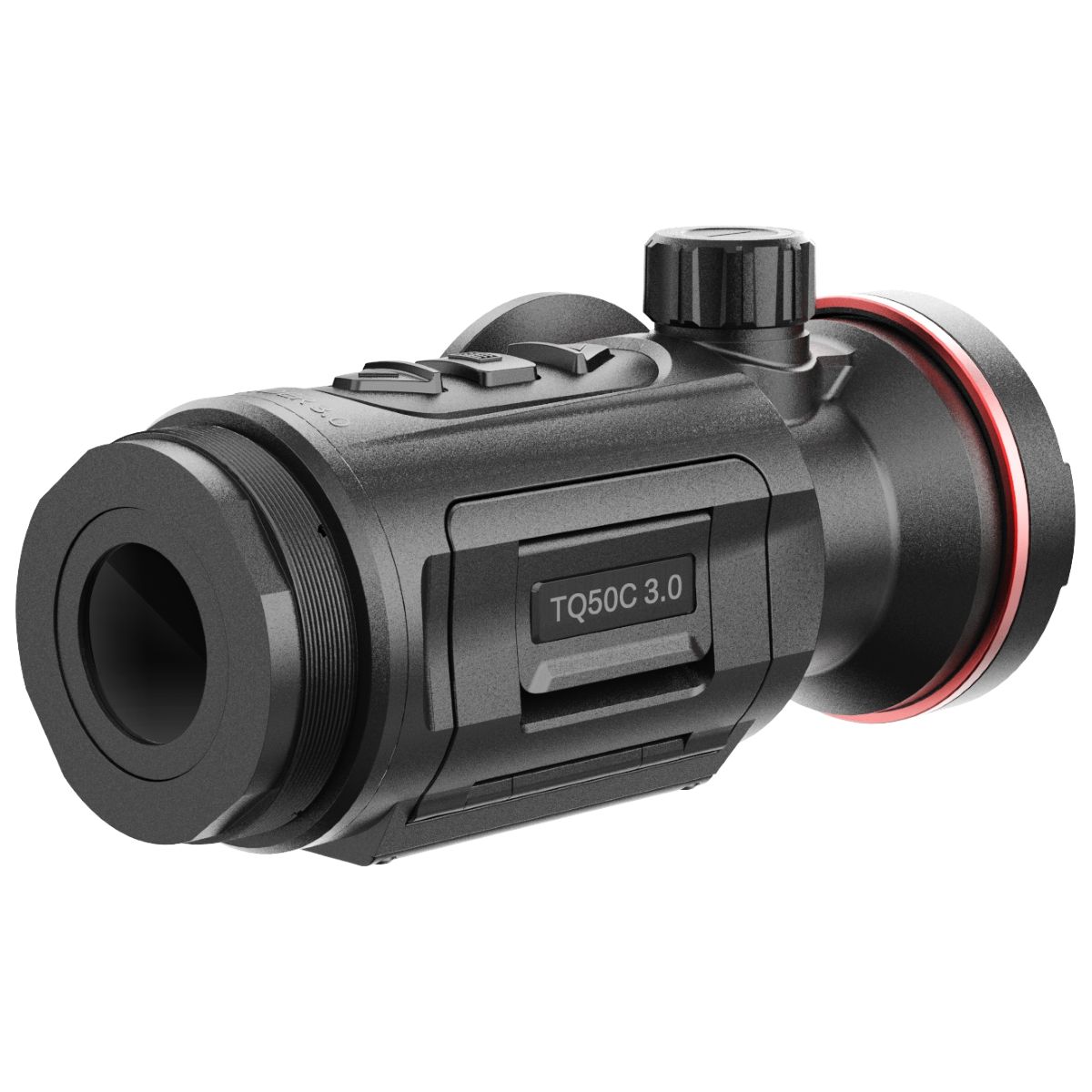

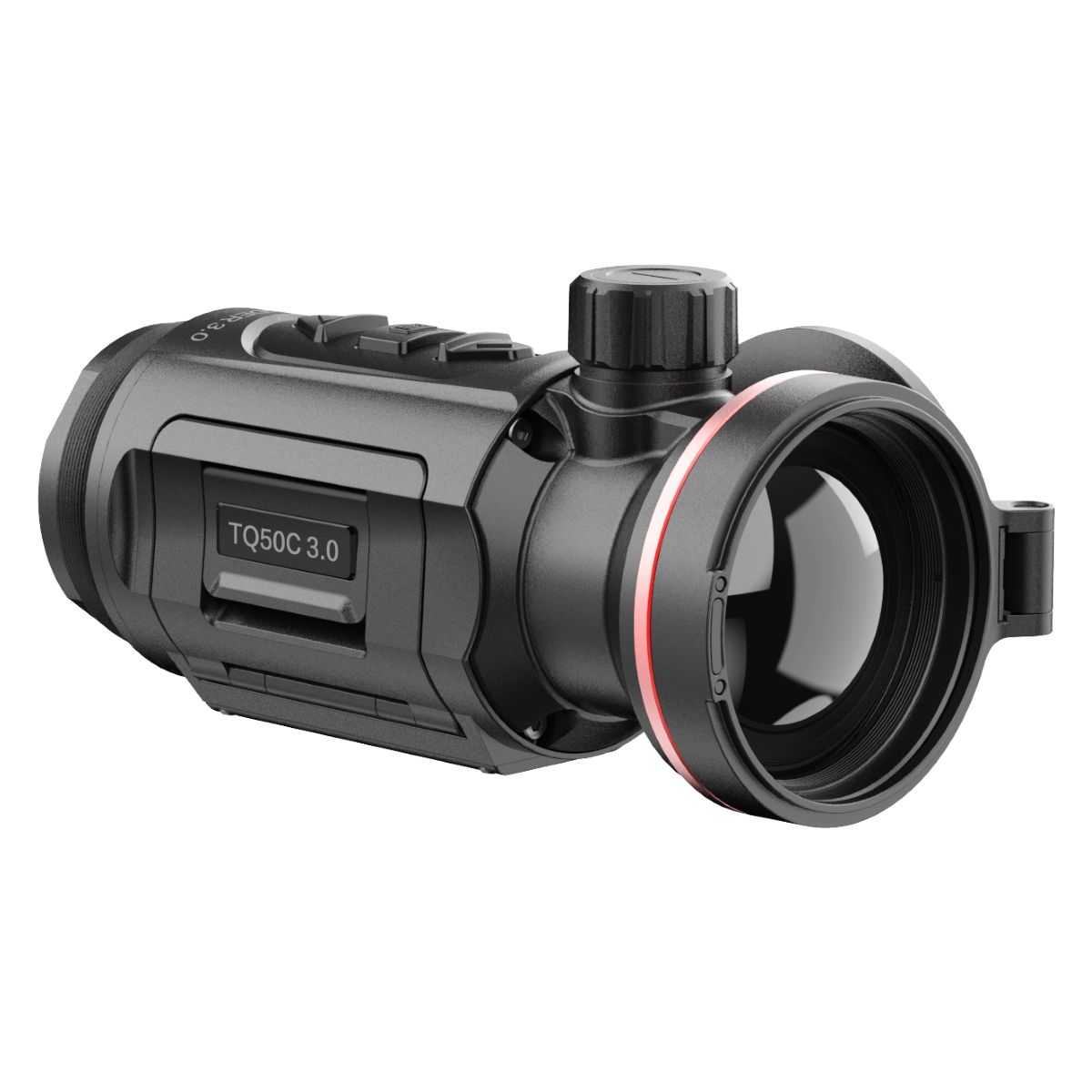

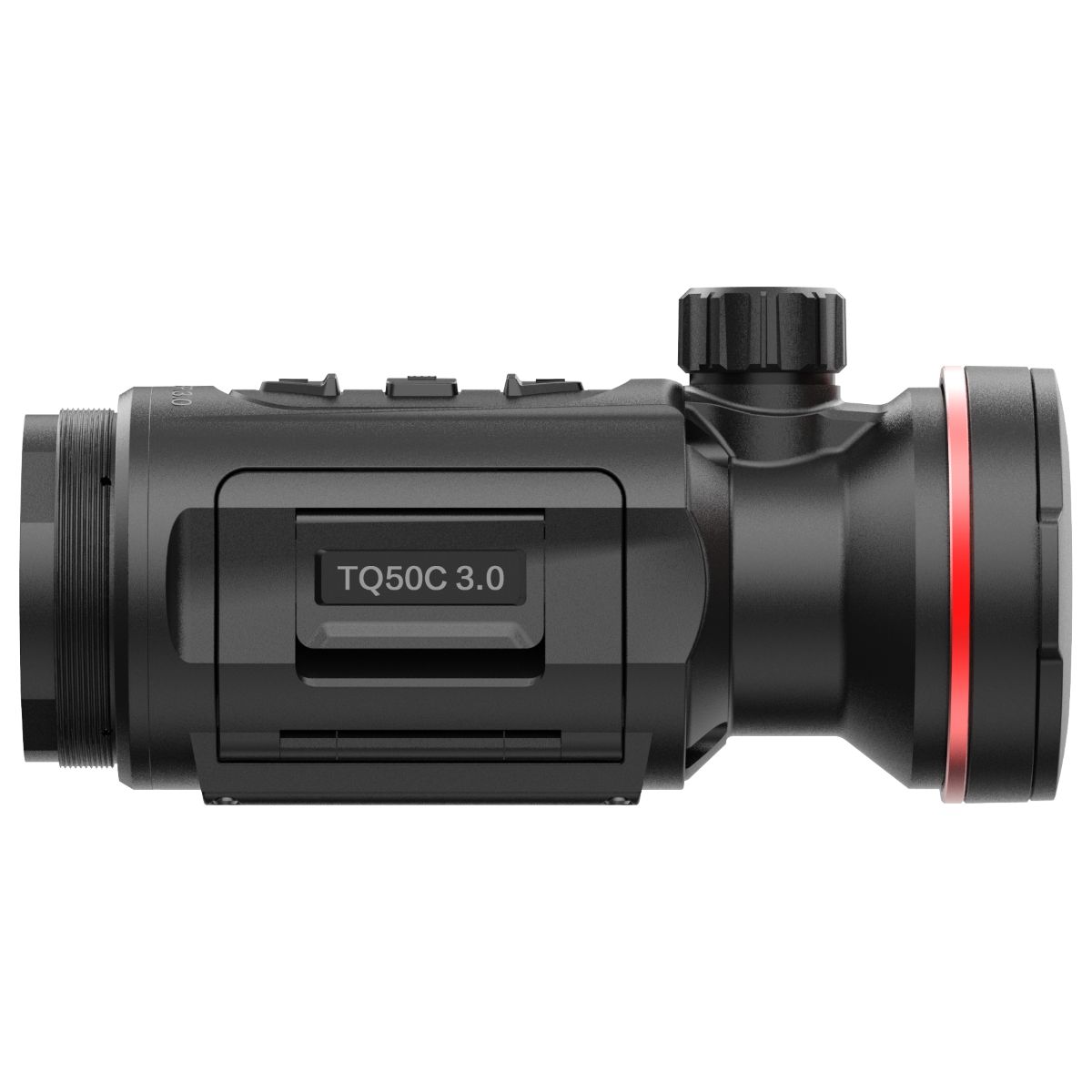

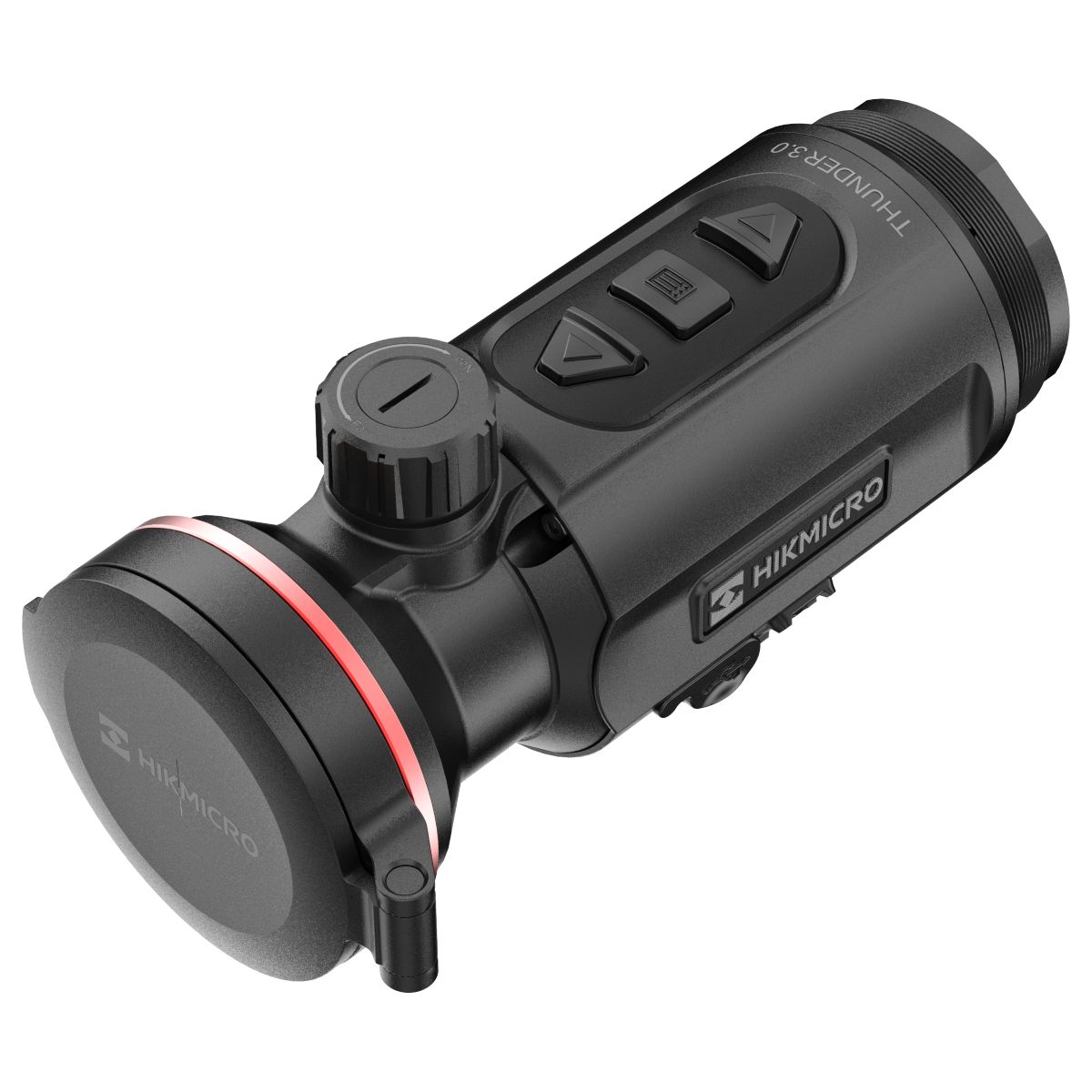

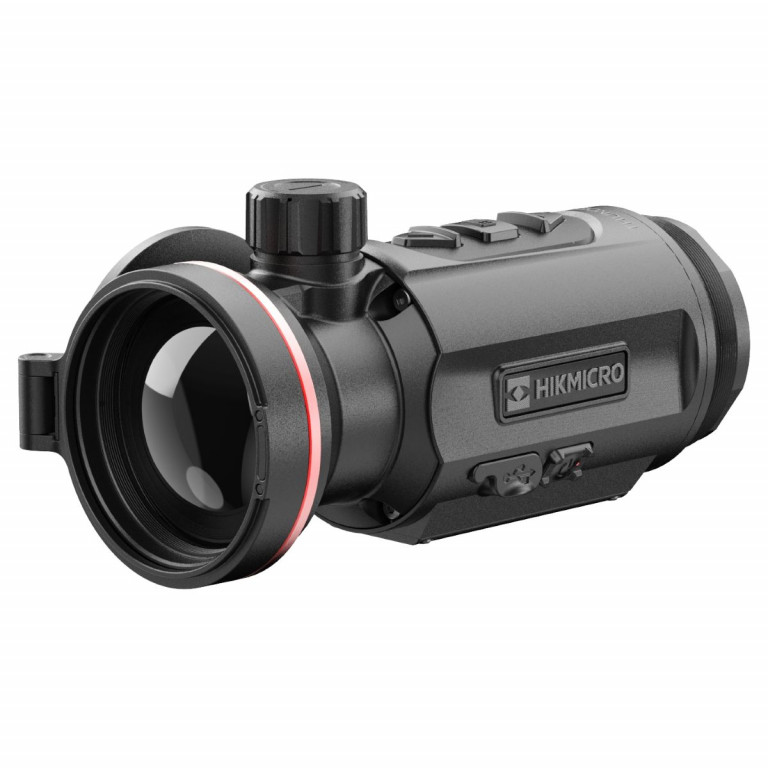

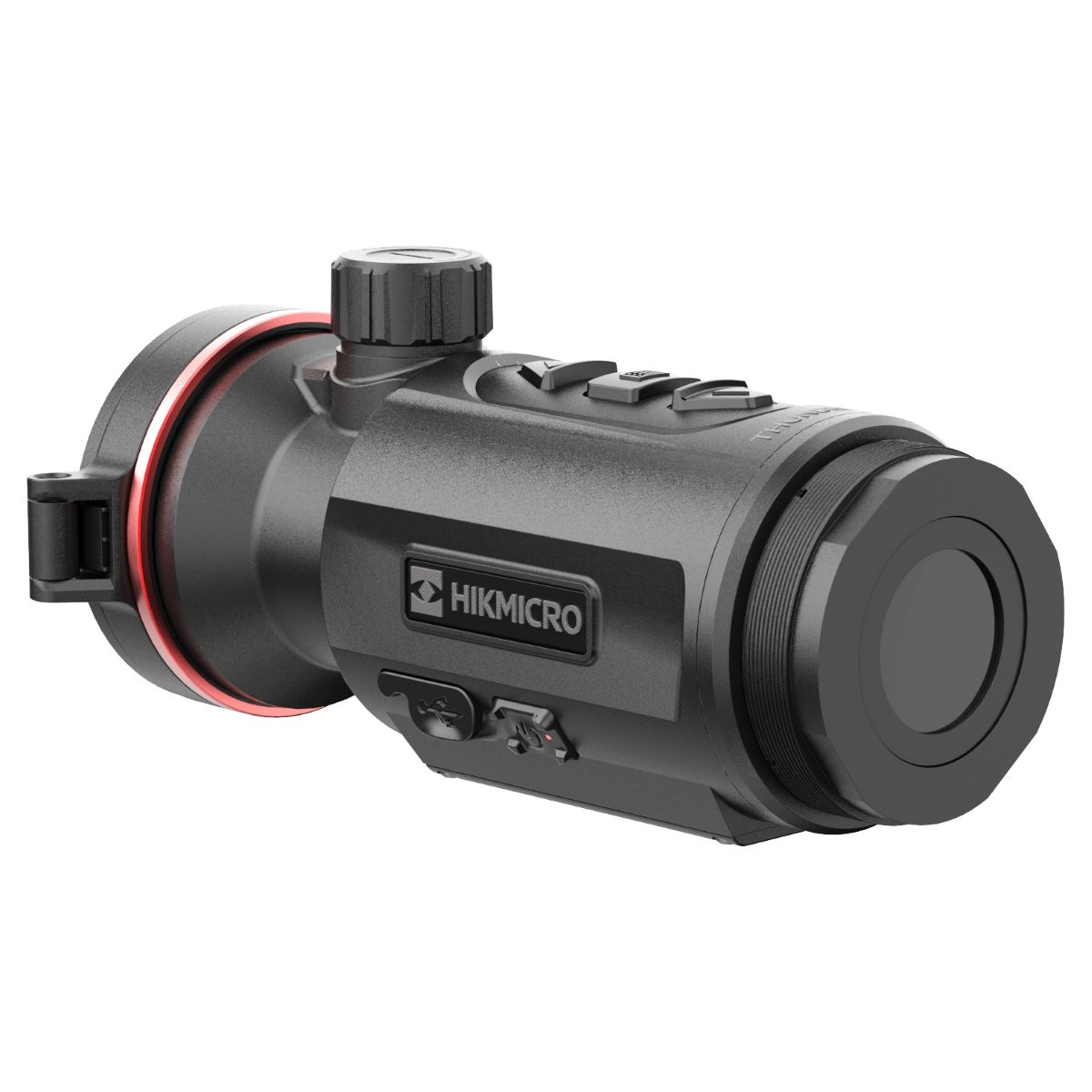

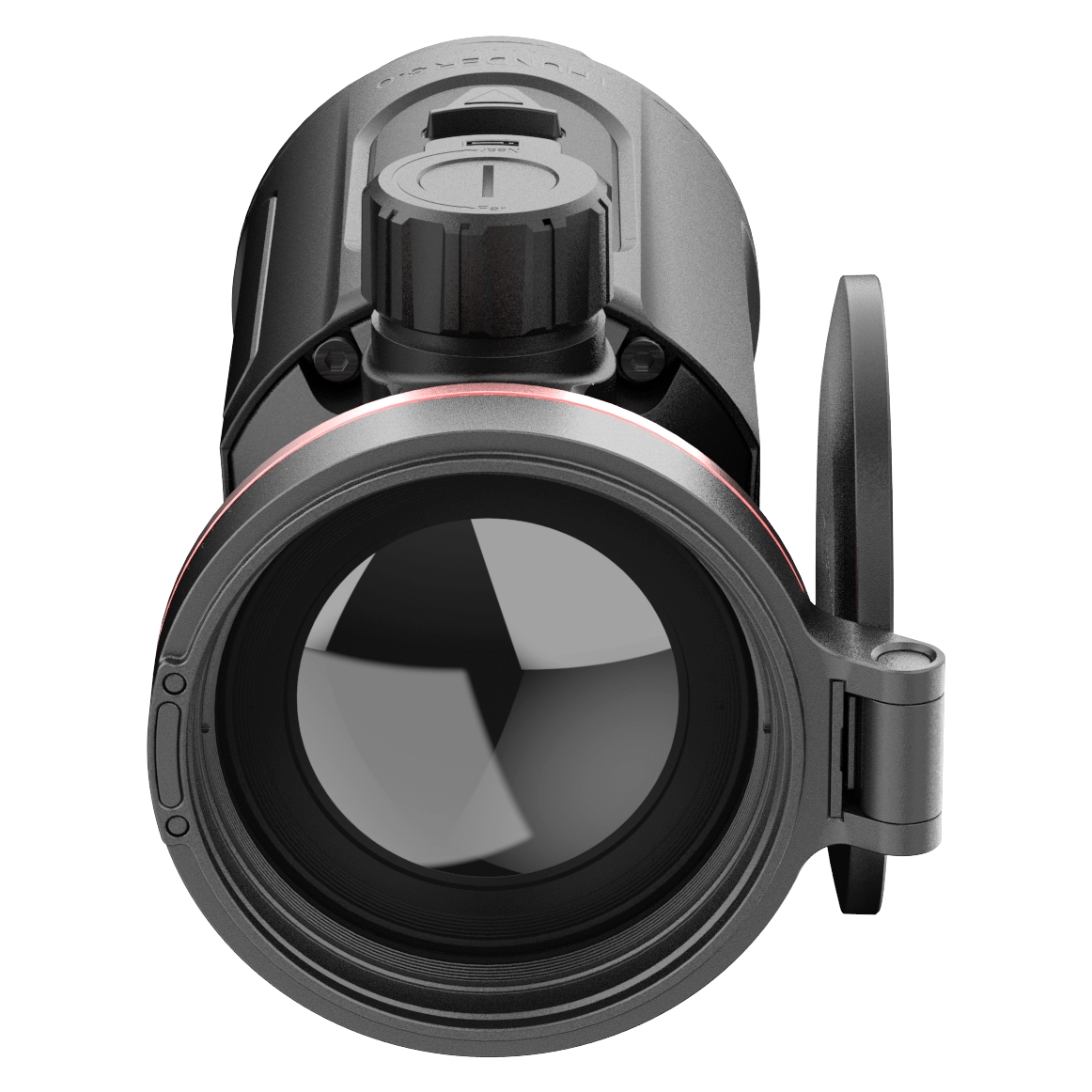

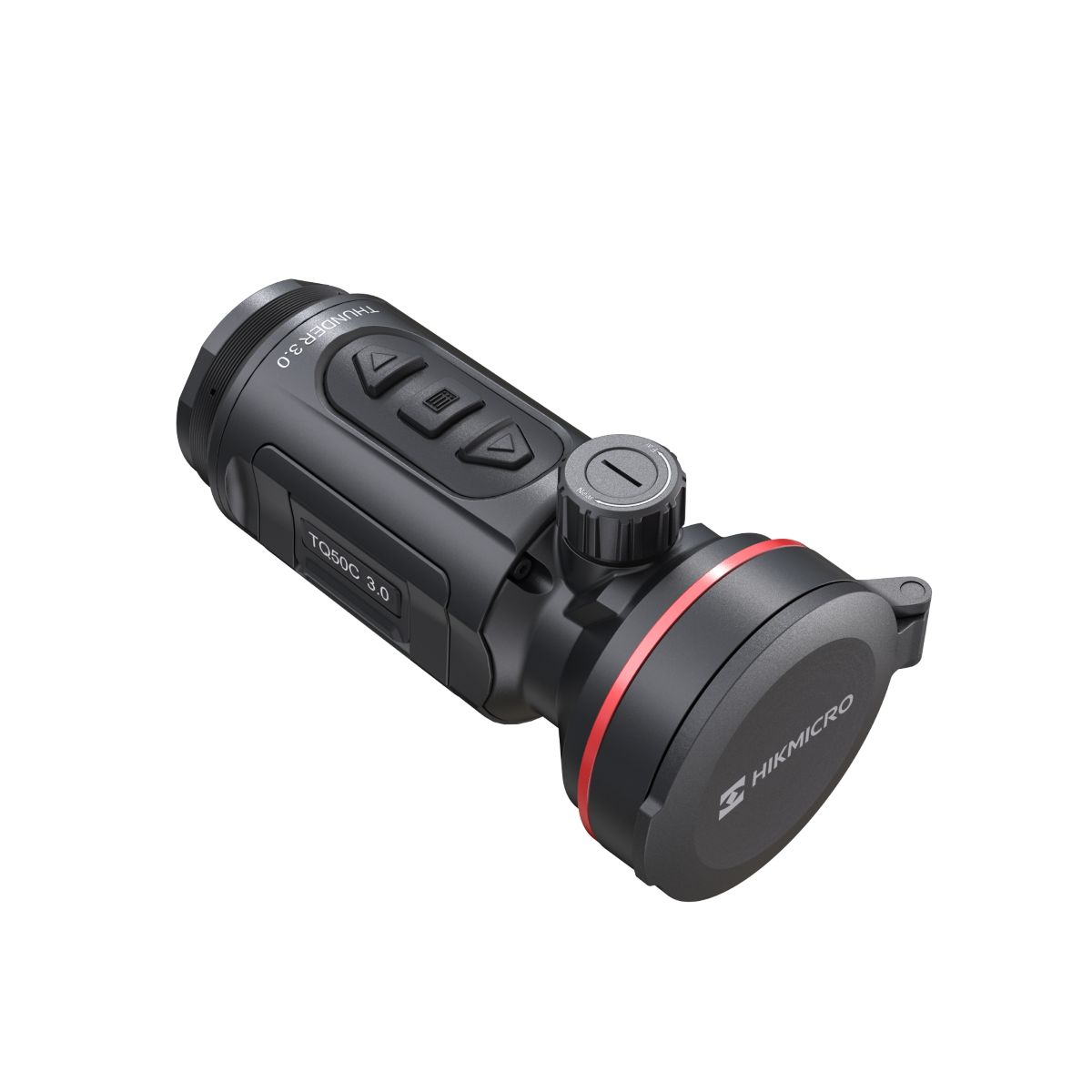

HIKMICRO Thunder 3.0 TQ50C Thermal Front Clip-On - 50mm 640px
HIKMICRO THUNDER TQ50C 3.0 Thermal Monocular is equipped with an unparalleled powerful thermal detector, with higher sensitivity and the latest image processing algorithm, ensuring users catch the finest details no matter the weather or light conditions. With a 1920 × 1080 OLED larger display, THUNDER 3.0 provides a better visual experience.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
When placing your order, please clearly state the exact external diameter of the objective lens on the scope you're planning to clip this unit onto, and we will supply the correct adaptor clamp to fit.
HIKMICRO Thunder 3.0 TQ50C 640px 50mm Thermal Clip On
The HIKMICRO Thunder 3.0 front clip on enables you to hunt with the latest generation thermal technology while also retaining the experience of shooting with your traditional optical riflescope.
The Thunder 3.0 introduces many innovations to enhance your hunting including shutterless technology.
Built around HIKMICRO’s latest generation 640x512px, Sub 15mK NETD sensors, the Thunder 3.0 is capable of delivering an unbelievably detailed image. Not only does this help you to positively identify animals but also gives you a clear view of the surroundings and background. This highly accurate thermal sensor will also continue to deliver in the most challenging conditions, such as rain and fog.
The Thunder 3.0 utilises a compact and ergonomic chassis which has been developed to ensure that all of the controls fall easily to reach from your shooting position. The thunder is paired to a Rusan Quick-Release clamp system which is tailored to fit your existing optic perfectly. This system allows you to quickly and repeatably add or remove the thermal unit from your optical scope with the twist of a locking ring.
In addition to the latest hardware, HIKMICRO are committed to developing advanced software to enhance your hunting experience. The Thunder 3.0 is loaded with new technology like Image Pro 2.0 which uses intelligent algorithms to build extra detail to the image.
Another unique technology which is set to revolutionise your thermal shooting experience is shutterless technology. The shutter is used in traditional thermal devices to control image noise. It is a physical process which requires your image to freeze for a few seconds to complete. During that interruption it is impossible to take your shot. To avoid this problem, HIKMICRO have developed software which has replaced the physical shutter and removed this problem.
Powered by the same removable battery as the Thunder 2.0, the Thunder 3.0 delivers an impressive run time of 6 Hours.
- Image Sensor: Uncooled Focal Plane Arrays
- Max. Resolution: 640 × 512
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- Lens (Focal Length): 50 mm, F1.0
- NETD (Noise Equivalent Temperature Difference): Less than 15 mK (@25 °C, F# = 1.0)
- Detection Range: 2600 m
- Focus Mode: Focus Knob
- Min. Focusing Distance: 10 m
- Magnification: 1×
- Field of View (H × V), Degrees / m @ 100m: 8.8° × 7.0° / 15.4 m × 12.3 m
- Recommended Magnification of the Day Scope: 1-15x
Image Display
- Display: 1920 × 1080, 0.49 inch, OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 25 mm
- Eye Relief: 20 mm
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- HSIS (HIKMICRO Shutterless Image System): Yes
- Image Pro 2.0: Yes
System Features
- Video Recording: On-board Video Recording
- Snapshot Capture: Yes
- Virtual Reticle: Yes
- Standby Mode: Yes
- Storage: Built-in EMMC (64GB)
- Hotspot: Yes
- Hot Track: Yes
- Reticle: No
- Audio Recording: Yes
- Recoil-activated Recording: Yes
- Max. Recoil: 1000 g / 0.4 ms
- Local Album: Yes
- Image Calibration: Yes
- Zeroing Profiles: 5
Power Supply
- Battery Type: Replaceable and Rechargeable Li-ion Battery Pack
- Battery Operating Time: ≥ 6h (at 25 °C, with hotspot off)
- Type-C Power Supply: 5 VDC, 2 A
- Supports External Power Supply: Yes
General
- Protection Level: IP67
- Dimensions: 149.4 mm × 76 mm × 74.6 mm
- Weight: 500 g (with battery)
- Working Temperature: -30°C to +55°C (-22°F to 131°F)
- Body Material: Magnesium Alloy (Body & Lens Cover)
- Center Height: 32.5 mm
- 640 × 512 resolution @12 μm thermal detector
- High sensitivity thermal module NETD < 15 mK (@25°C, F# = 1.0)
- 50 mm, F1.0 lens with detection range up to 2600 m
- 1920 × 1080 resolution 0.49-inch OLED display
- HIKMICRO Shutterless Image System (HSIS)
- Rechargeable and Replaceable Li-on Battery, 6h continuous operation
- High shock resistance up to 1000 g/0.4 ms
What sets the HIKMICRO Thunder 3.0 Thermal Clip-On apart from its competitors?
The HIKMICRO Thunder 3.0 Thermal Clip-Ons stand out because of their advanced sensor technology, innovative features, and user-friendly design, making them a top choice for serious hunters.
All Thunder 3.0 models, including the TH35C, TQ50C, and TQ50CL, are equipped with high-resolution thermal sensors that deliver exceptional image clarity. The TH35C features a 384x288px sensor, while the TQ50C and TQ50CL models boast a 640x512px sensor, providing increasingly detailed thermal imagery.
The Thunder 3.0 series utilises HIKMICRO’s innovative shutterless technology, which eliminates the need for a physical shutter. This advancement avoids image freezes and allows for continuous, clear viewing, meaning that you will never miss a shot due to image interruption.
All Thunder 3.0 models are equipped with Image Pro 2.0, an advanced image processing algorithm that enhances image detail and overall visibility. This technology provides sharper and more detailed thermal images, which are crucial for accurate target identification and environmental awareness.
The TQ50CL model features a built-in Laser Range Finder (LRF) with a range of up to 1000 metres.
All models of the Thunder 3.0 Thermal Clip On have high sensitivity with a NETD of less than 15mK. This means that it can detect even the most subtle temperature variations. With high shock resistance up to 1000 g/0.4 ms they are also built to withstand tough conditions.
The Thunder 3.0 models come with a high-resolution 1920 × 1080 OLED display, providing a superior visual experience. They are powered by a rechargeable Li-ion battery with a runtime of up to 6 hours that gives reliable performance throughout extended use.
The series features a compact and ergonomic design that is complemented by the Rusan Quick-Release clamp system. This allows for easy attachment and detachment of the thermal unit from your optical scope.
Quickfire Questions
What are the key features of the HIKMICRO Thunder 3.0 Thermal Clip-Ons?
The HIKMICRO Thunder 3.0 Thermal Clip-Ons are equipped with high-resolution thermal sensors, ranging from 384x288px to 640x512px, depending on the model. They feature advanced shutterless technology, Image Pro 2.0 processing, and a high-resolution 1920 × 1080 OLED display. The TQ50CL model also includes a built-in Laser Range Finder (LRF).
How does the shutterless technology in the Thunder 3.0 improve performance?
The Thunder 3.0 series utilises shutterless technology to eliminate the need for a physical shutter, which prevents image freezes and ensures continuous, clear viewing. This allows users to maintain a steady visual feed without interruptions, crucial for accurate targeting.
What is the detection range of the different Thunder 3.0 models?
The TH35C has a detection range of up to 1800 metres, the TQ50C offers a range of up to 2600 metres, and the TQ50CL, which also includes an LRF, provides a detection range of up to 2600 metres with precise distance measurement capabilities.
What kind of battery life can be expected from the Thunder 3.0 Thermal Clip-Ons?
All Thunder 3.0 models are powered by a rechargeable Li-ion battery. The TH35C and TQ50C models offer up to 6 hours of continuous operation, while the TQ50CL provides up to 5 hours due to the additional power requirements of the LRF.
How does the Image Pro 2.0 processing improve the thermal imagery?
Image Pro 2.0 is an advanced image processing algorithm that enhances image detail and overall visibility. This technology sharpens thermal images and improves target identification, even in challenging conditions like rain and fog.
What are the differences between the Thunder 3.0 models?
The main differences lie in their thermal sensor resolutions, detection ranges, and features. The TH35C has a 384x288px sensor with a 35mm focal length, the TQ50C has a 640x512px sensor with a 50mm focal length, and the TQ50CL, which also includes a built-in LRF, features a 640x512px sensor and a 50mm focal length.
How durable are the Thunder 3.0 Thermal Clip-Ons?
The Thunder 3.0 series is designed with high shock resistance, capable of withstanding up to 1000 g/0.4 ms. This ensures that the clip-ons can endure tough conditions and rough handling during field use.
Can the Thunder 3.0 models be easily attached and detached from a riflescope?
Yes, the Thunder 3.0 models feature the Rusan Quick-Release clamp system, which allows for quick and repeatable attachment and detachment from your optical scope with the twist of a locking ring.
- HIKMICRO Thunder 3.0 TQ50C Thermal Front Clip-On - 50mm 640px
- Battery charger
- Type C USB Cable
- Lint-free cloth
- Quick start guide
- 2x batteries
- Wrench
- Carrying case
- Main Unit: 3 Years
