WIN AN ULTIMATE RATTING COMBO
WINNER: Tony Ruddy CHARITY: The Calm Zone
DONATION: £249.75
#397
#415
#412
#413
#414
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
*RRP: 999.94 - SAVE £355.49*
The Ulitmate ratting combo from Optics Warehouse has everything you need for pest control. Whether you are up in the rafters or out in the field, this versatile combo gives you everything you need to spot and shoot your quarry. The Lynx 6mm from HIKMICRO is ideal for spotting pests and prey at airgun ranges. The Sightmark with its IR illuminator is perfect for shooting rats or rabbits.
Whatever your prey, the Ultimate Ratting Combo will be more than enough.
Sightmark:

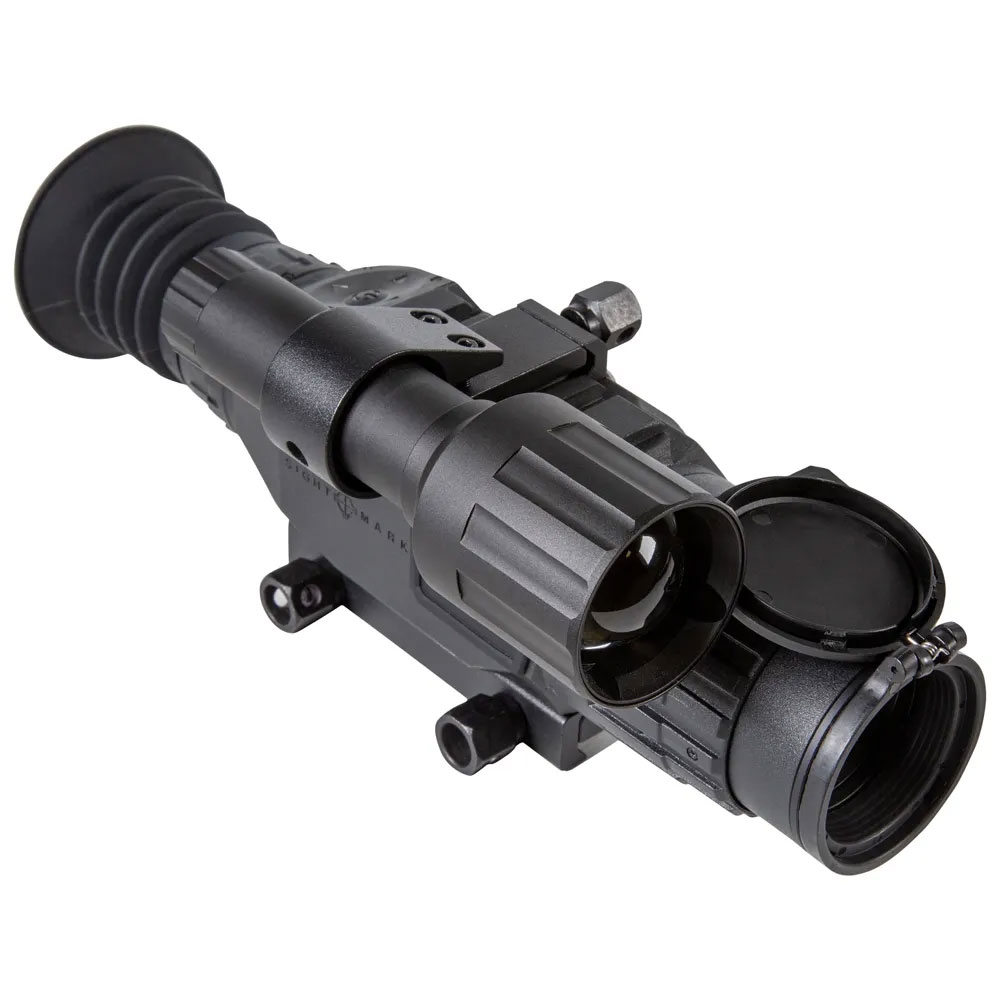

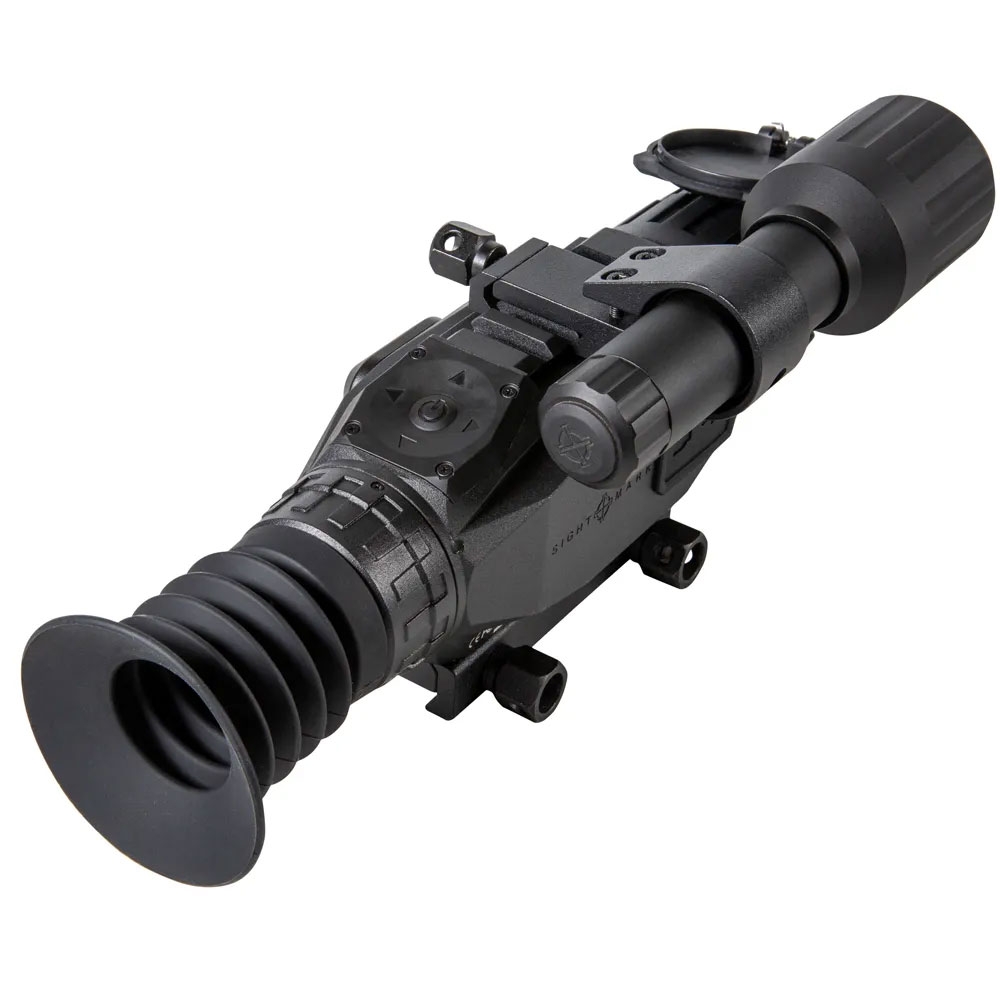

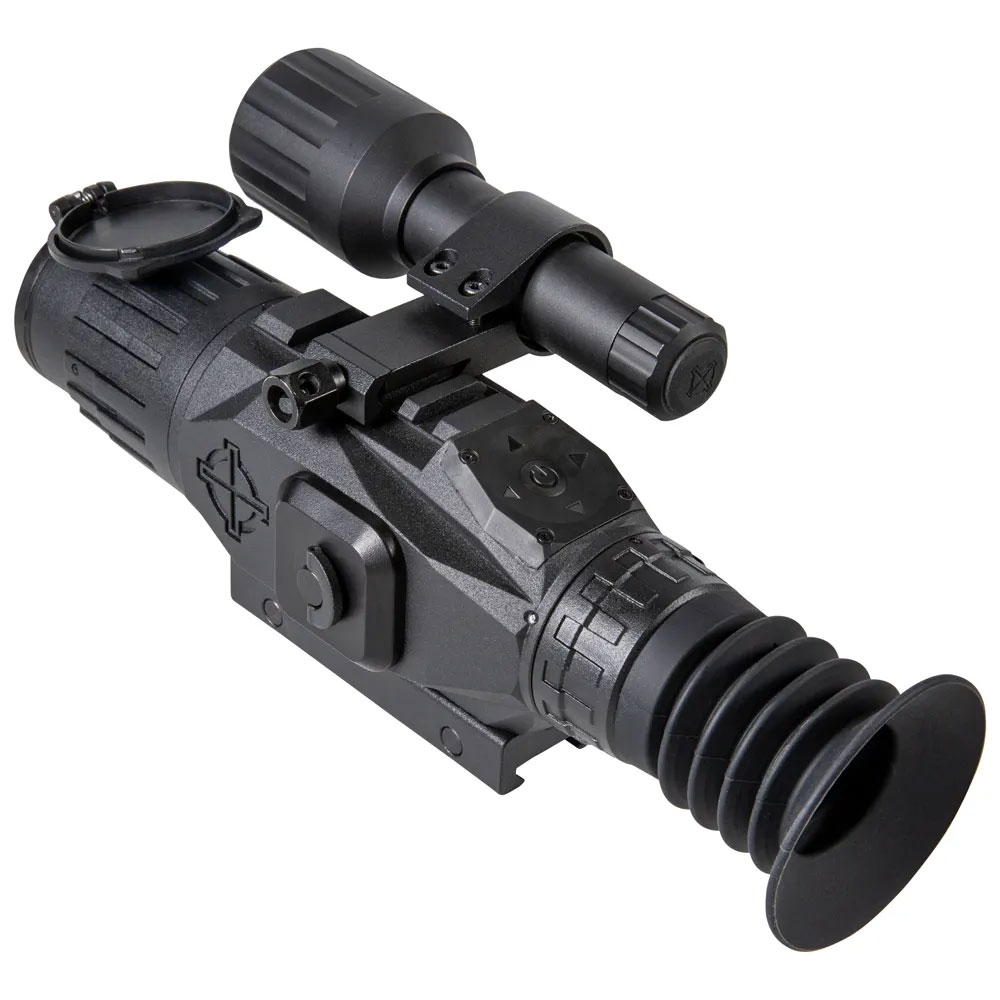

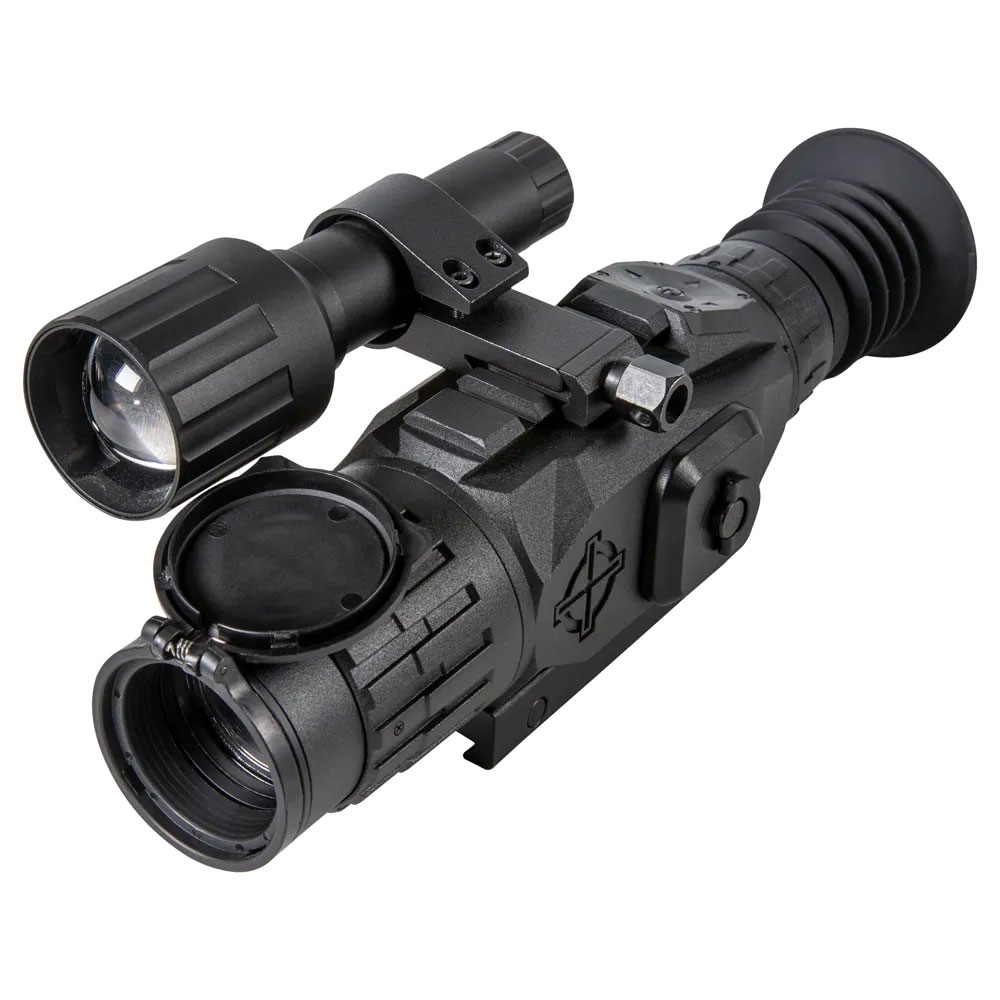

View the world in ultra-crisp high definition through Sightmark’s Wraith HD 2-16x28 Digital Day/Night Riflescope! Coupled with its 850nm IR Illuminator, this riflescope employs a 1920x1080 CMOS sensor to detect objects up to 200 yards away at night.
The Wraith’s 8x digital zoom and 1280x720 FLCOS screen deliver fine-detail imaging, and the Wraith boasts black-and-white, or green, night vision and daytime colour mode, displaying images in sharp, full-colour clarity. With its lower base magnification range, paired with a wider field of view, the Wraith 2x is ideal for fast-moving hog and varmint hunting. 10 reticle options in 9 colours, 5 weapon profile saves and built-in 1080p HD video recording enables users to preserve their memories.

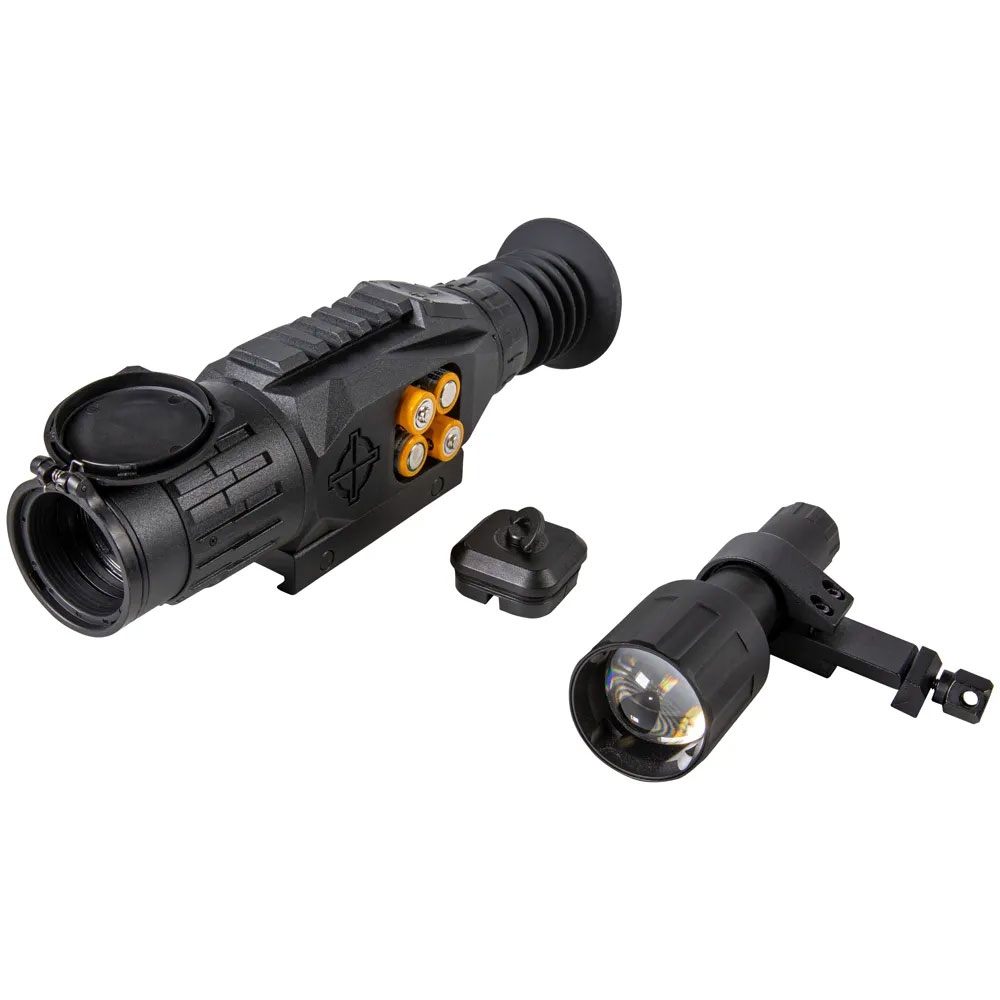

Housed in a durable aluminium body, with an IP55 water-resistant rating and 20° to 122° operating temperature range, the Wraith can withstand harsh conditions for many years. Included with the Wraith is an IR Illuminator, objective lens cover, fixed Picatinny mount, additional weaver rail for accessories, and a user manual.
HIKMICRO:

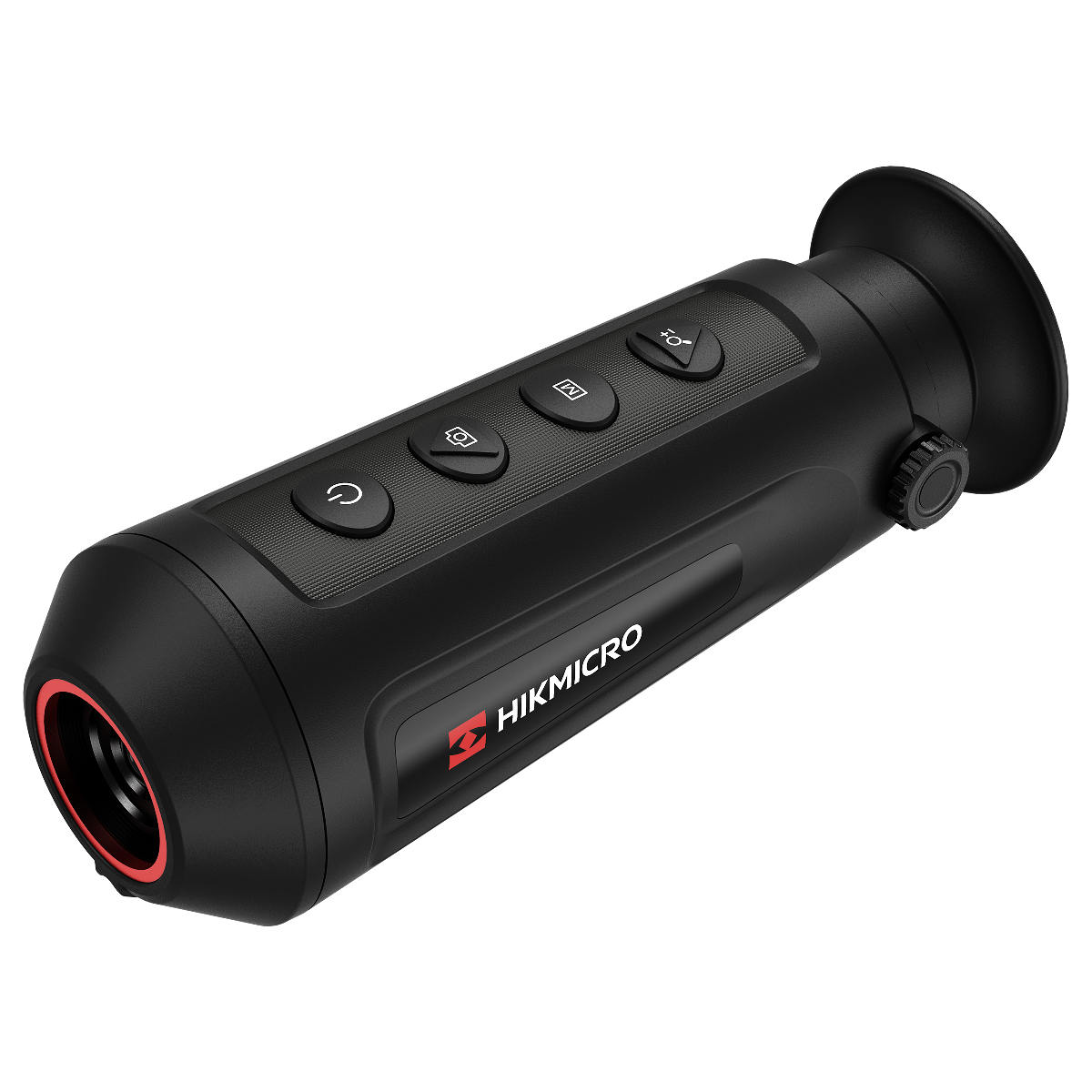

The HIKMICRO Lynx 6mm delivers a high-quality thermal image and packs a host of features normally reserved for high-end thermal spotters.
The 160x120px, 17µm thermal sensor (35mK NETD Rating), and HIKMICRO software deliver a detailed image to the screen. The WiFi and the dedicated app allow you to take complete control of the unit's settings and features from your smartphone.
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.
Battery life = 10hrs of continuous running!
| Product Name A-Z | WIN AN ULTIMATE RATTING COMBO |
|---|---|
| SKU | OPTICSDRAW#35 |
Specs
Sightmark:
- Type of Sensor: CMOS sensor
- Sensor resolution, pixels: 1920x1080
- Display Type: FLCOS
- Display Resolution, pix.: 1280x720
- Built-in Video Recorder Availability: Yes
- Maximum memory card supported, Gb: 256
- Format of video clip: AVI
- Resolution of video clip: 1080/720
- Format of photo files: JPEG
- Resolution of photo files: 1080/720
- Memory capacity: Approximately 7 hours video with 64Gb SD card
- Magnification: 2 - 16 x
- Diameter, Lens, mm: 28
- Digital Zoom: 1-8x
- Lens Focus, mm: 40.1
- Relative aperture, D/f': 2.4
- Field of view, m@100m: 14
- Field of view, ft@100yd: 42
- Minimum focusing distance, ft/m: 16.4 / 5
- Eye Relief: 2.4 / 60 in / mm
- Diopter Adjustment: -6 to +3
- Emitter: LED
- IR Wavelength: 850nm
- Equivalent IR Power, mW: ~1060 on high, ~540 on medium, ~400 on low
- Battery Life (with IR): 2 hours on high (2x CR123A Battery Type for IR)
- Night Vision Detection Range: 200 / 183 yd / m
- Power Supply: 6 v
- Battery Type: 4xAA
- Battery life, hours: 3.5 video mode / 4.5 preview mode
- External Power Supply: 5V via micro USB
- Windage & Elevation click value: 1/5 MOA
- Elevation Range of Adjustment: 70 MOA
- Windage Range of Adjustment: 170 MOA
- Number of Preloaded Reticles: 10
- Colours: Black, white, red, blue, green, cyan, orange, yellow, magenta
- Body Material: Aluminium
- Accessory rail mount: Picatinny
- Operating Temperature: 20 to 122 / - 6 to + 50 F / C
- Waterproof Rating: IP55 - water-resistant
- Nitrogen Purged: No
- Shockproof: Yes, 3ft
- Maximum Recoil: .308
- Dimensions: 25.5 x 6.6 x 7.7cm
- Weight: 33.3 oz (with batteries)
HIKMICRO:
MAIN
- Sensor 160×120px @ 17µm
- Objective Lens 6mm
- Detection Range (Vehicle 1.4 x 4m) 559m
- Detection Range (Human 1.8 x 0.5m) 182m
SENSOR
- Type Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution, pixels 160×120 px
- Pixel pitch, µm 17µm
- Frame rate, Hz 50 Hz
- NETD Rating 35mK
OPTICS
- Objective lens F1.1
- Magnification (Optical) 0.6x
- Magnification (Digital) 1x, 2x, 4x,
- Field of view 24.7° × 18.7° (H × V)
DISPLAY
- Type 5.08mm, LCOS
- Resolution, Pixels 720 × 540
- Colour Palettes Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND
- Video Recorder YES
- Sound Recorder NO
- Build in memory, Gb 8 Gb
ADDITIONAL FEATURES
- Hot Tracking YES
- WiFI hot spot YES
- T-Vision App support YES
ENVIRONMENTAL
- Degree of protection, IP code IP67
- Dust protection Protected against dust ingress
- Water protection Protected against temporary submersion in water
- Operating temperature range -20 °C to 55 °C
WEIGHT & SIZE
- Dimensions, mm 158 mm × 61 mm × 57 mm
- Weight, kg 0.25 kg
POWER SUPPLY
- Operating time on battery
- (WiFi & Hot tracking disabled) 10 hours of continuous running
- Charging interface USB-C
- Battery capacity after 1000 cycles 80%
Features
Sightmark:
- 2x magnification
- 1080P HD digital imaging
- Daytime colour mode
- Night vision mode
- Built-in HD video recording
- 8x digital zoom
- 10 reticle options with 9 colours
- Power input
- Additional weaver rail for accessories
- 5 weapon profile saves
HIKMICRO:
HIK VISION THERMAL SENSOR:
- The HIKMICRO 160x120px, 17µm thermal sensor with a NETD rating of 35mK produces a high-quality thermal image.
- 35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
- Combine this with the HIK software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.
T-VISION APP: Connect – Control – Stream:
- Connect your smartphone and take control of all features of the Lynx 6mm.
- The T-Vision app allows you to stream the output in real-time allowing you to share your viewpoint with a friend.
- You can also record images and video, optimise the colour profile, and display settings and magnification all from the easy-to-use app.
HOT TRACK:
- Activate Hot Tracking and your Lynx 6mm will highlight the hottest spot detected in the current frame with a green crosshair.
- This is useful to highlight small heat sources as you scan around.
- This feature can also be deactivated in the menu or controlled in the App.
Video
Sightmark:
HIK Micro/Vision - OPW Quickfire Review
HIK MICRO/VISION - Thermal Spotter Introduction
HIK MICRO/VISION - T-Vision App Demonstration
Who is HIK MICRO/VISION?
Warranty
Sightmark:
For Sightmark night vision products, the image intensifier tube and the digital imaging sensor that enables night vision capability are warranted to be free from defects for a period of 3 years, as are other light-emitting devices such as laser diodes and LED. Non-rechargeable or disposable batteries are not covered under warranty. Rechargeable battery packs are covered by a 1-year warranty.
HIKMICRO:
3 Year UK warranty
HIKMICRO is a global company with global service.
Should you experience any technical issues with your Lynx Thermal, it can be quickly repaired in the UK at HIK’s London service centre.
3 Years - Main unit
2 Years - Battery
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
Manuals
Sightmark:
QUICKSTART GUIDE [DOWNLOAD]
USER MANUAL GUIDE [DOWNLOAD]
HIKMICRO:
HIKMICRO Thermal Monocular User Manual: DOWNLOAD
Download the HIK App here:
Apple: https://apps.apple.com/us/app/t-vision/id1478705944
Android: https://www.app-st.net/ZdMM
T-Vision App Tutorial
