Schmidt & Bender Competition 10-60x56 LPI Illuminated FFP M1FL MT II MTC LT / DT II+ ZC LT 0.5cm CCW Rifle Scope
- 34mm main tube
- 23 MRAD of internal adjustment
- Designed for multi discipline shooting
- FFP M1FL Reticle
- Multi Turn II Elevation turret system
- Zero Click
- Locking turrets
- LPI Illumination and Parallax system
- Side Parallax down to 20m
- CCW Turret rotation
#419
#423
#420
The brand new Schmidt & Bender 10-60x56 is designed for the competition shooter who is after the maximum in precision and accuracy. Whether Bench Rest, F-Class, Long Range or Extreme Long Range, the new Schmidt & Bender 10-60x56 has been developed for the most competitive environments.
The Schmidt & Bender 10-60x56 is part of the latest development from Schmidt & Benders 6x zoom range of optics. The 10-60x56 Schmidt comes with an Illuminated FFP M1FL reticle, the latest Multi Turn II turret system that incoperates MTC clicks * More Tactile Clicks, a Zero Stop and Locking system; this is really an optical powerhouse that will take some beating. The new optical system at the center for the Schmidt & Bender 10-60x56 helps provide a large field of view, aswell as a generous exit pupil which gives the shooter the ability to get a quick and comfortable viewing experience that will set the new benchmark for high magnification rifle scopes.
A 56 mm objective lens diameter with a light transmission of over 90 % provides a clear, bright and high contrast image even at extreme magnification. The “LPI” enables the use of 11 step illumination and the 20 m to infinity parallax adjustment with one simple handgrip. The riflescope is equipped with a new mrad-based M1FL competition reticle in a first focal plane design.
With a main tube diameter of 34 mm, the Schmidt & Bender 10-60x56 aboasts a generous elevation range of over 23 mrad. Click values of 0.05 mrad are possible with the Multi Turn II elevation turret.
Thanks to the use of high-performance aluminum and the special design, this product also ensures the usual Schmidt & Bender stability and allows the riflescope to be used from –40 °C to +61 °C. Despite the solid construction and its superior optical quality, the weight of the 10-60x56 is less than 1000 g.
- Weight (g/oz): 980–995/34.57–35.10
- Length (mm/in): 442/17.40
- Main tube diameter (mm/in): 34/1.34
- Magnification: 10–60
- Objective diameter (mm)/(in): 56/2.20
- Field-of-view (m/100 m)/(ft/100 yd): 4.4–0.8/13.3–2.3
- Field-of-view [USA] (m/100 m)/(ft/100 yd): 3.74–0.64/11.2–1.9
- Exit pupil diameter (mm/in): 5.6–1.0/0.22–0.04
- Eye relief distance (mm)/(in): 90/3.54
- Twilight factor: 23.7–58.0
- Transmission (%): >90
- Focal Plane: 1
- Diopter adjustment (dpt): -3 to +2
- Turrets (Elevation / Windage): DT II+ MTC LT / ST II ZC LT
- Click Value: 0.1 mrad
- Adjustment range elevation: 23.5 mrad
- Adjustment range windage: ±6 mrad
- Turrets (Elevation / Windage): MT II MTC LT / DT II+ ZC LT
- Click value: 0.5 cm/100 m
- Adjustment range elevation: 235 cm/100 m
- Adjustment range windage: ±68 cm/100 m
- Parallax adjustment (m/yd): 20 to ∞/21.87 to ∞
- Illumination: 11 settings
- Waterproof (m)/(ft): 3
- Temperature range: /
- Storage (°C)/(°F): –55 to +71/–67 to +160
- Function (°C)/(°F): –40 to +61/–40 to +142
- Turret rotation: ccw
- Colour: Black
- Reticle: M1FL
- 34mm main tube
- 23 MRAD of internal adjustment
- Designed for multi discipline shooting
- FFP M1FL Reticle
- Multi Turn II Elevation turret system
- Zero Click
- Locking turrets
- LPI Illumination and Parallax system
- The new 10-60x56 features the new “LPI” function – “LPI” means Illumination Parallax Integrated“. This new and very easily operable illumination control is integrated into the parallax adjustment and allows a better mounting solution. It also enables a better left handed use.
- Although being very compact the illumination and the parallax adjustment show the familiar features: on the outer side the smaller and easy to operate illumination knob has 11 functional steps with “off” positions between each step. This allows more contrast on dark targets
- Side Parallax down to 20m
- CCW Turret rotation

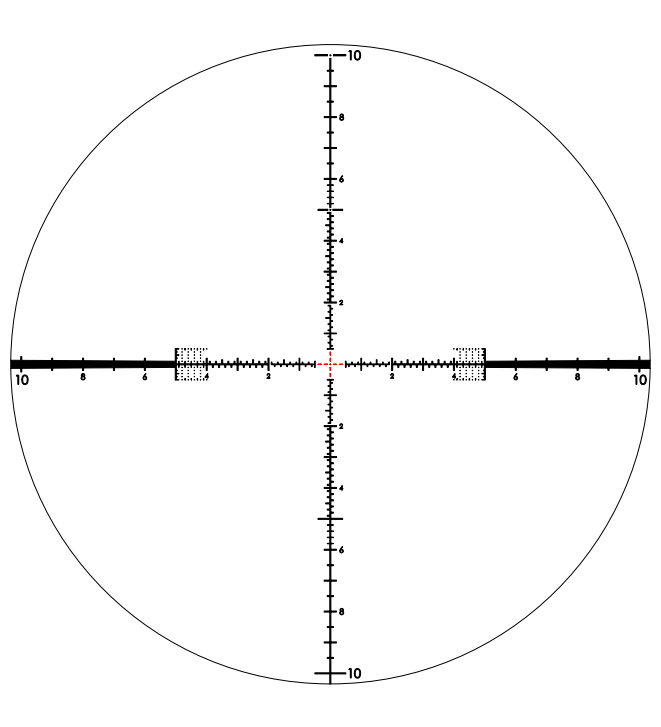

M1FL reticle:
THE LATEST GENERATION OF MATCH RETICLES
The M1FL is the latest development for shooting sports based on our well-known LRR-MIL reticle. Our goal was to design a fine mrad reticle in first focal plane, optimized for highest precision disciplines as well as for extreme long range shooting.
Like the LRR-MIL, the M1FL has an interrupted center cross that can be illuminated. It features a fine, free-floating center dot with a coverage of just 0.32 cm at 100 m for precise shot placement and is surrounded by an interrupted center cross with 0.1 mrad gaps and dashes.
Up to the 5 mrad mark, the reticle is graduated in 0.1 mrad subtensions and can be used for holding and measuring over the entire range. For faster orientation, even graduation marks are made downward or to the right and uneven ones correspondingly upward or to the left. From the center, the markings are more clearly highlighted from the 2 mrad mark onwards so that they can be easily noticed even at lower magnifications.
On the horizontal axis, the markings before the 5 mrad mark make it easier to measure oval or round targets. On the vertical axis, the bars are divided into 0.5 mrad subtensions after the 5 mrad mark. On both axes, all 2 mrad marks are additionally numbered up to the 10 mrad mark.
The upper area of the M1FL reticle shows no markings in order to support target and impact identification. The vertical bar extends to the 10 mrad mark and also has a free-floating dot at each of the 5 and 10 mrad marks to allow zeroing above the vertical bar as it is especially common in Extreme Long Range shooting. On the horizontal axis, solid bold conical-shaped bars guide the eye toward the center especially at low magnifications.
What does M1FL stand for? "M1" (=Match 1) stands for the latest generation of competition/shooting sports reticles. As in the past, "F" (=Fine) stands for the fine line pattern and "L" (=Light/Illuminated) for the illumination of the reticle.
Click HERE for more information.
- Schmidt & Bender Competition 10-60x56 LPI FFP M1FL MT II MTC LT / DT II+ ZC LT 0.5cm CCW Rifle Scope.
- Tenebraex Covers
Schmidt & Bender provides you a 10 year guarantee on the performance of their new riflescopes, which includes a ten years ready on stock parts availability, ten years warranty on assembled parts and a limited two years warranty on electronics.
