WIN A: Delta Javelin 4.5-30x56 FFP SMR-1 Illuminated Zero Stop Rifle Scope
#503
#504
#501
#505
#502
Featuring high-quality ED optics, large, lockable adjustment turrets, 34mm tube, 0.1MRAD click, illuminated aiming point, unique SMR-1 FFP reticle, zero-stop, throw lever, metal flip-open covers and a sunshade.
The SMR (Scandinavian Match Reticles) reticles are made for shooters by shooters.
All SMR reticles are designed to be clean and simple without any unnecessary distractions but remain functional, versatile and efficient.
The Delta Javelin is comfortable with up to 8000 Joule, which means it can be used on a caliber Magnum (.338 Lapua).
| Product Name A-Z | WIN A: Delta Javelin 4.5-30x56 FFP SMR-1 Illuminated Zero Stop Rifle Scope |
|---|---|
| SKU | OPTICSDRAWS#511 |
Specs
- Magnification Range: 4.5x – 30x
- Objective Diameter: 56mm
- Field of View @100m 4.5x: 8.2m
- Field of View @100m 30x: 1.3m
- Eye Relief: 100mm
- Diopter Range: -2D/+2D
- Water Proof (N2): 0.3kg/cm2
- Reticle Position: 1st focal plane
- Illumination: Yes
- Per Click: 0.1MRAD
- Elev Adj Range: 32MRAD
- Wind Adj Range: 32MRAD
- Parallax Adjustment:25m – ∞
- Zero-Stop: YES
Features
- Sunshade
- Both Locking Turrets
- Throw lever
- Metal flip-open covers
- Lens Coating FMC
- Tube Diameter: 34mm
- Length: 388.6mm
- Weight: 1036g

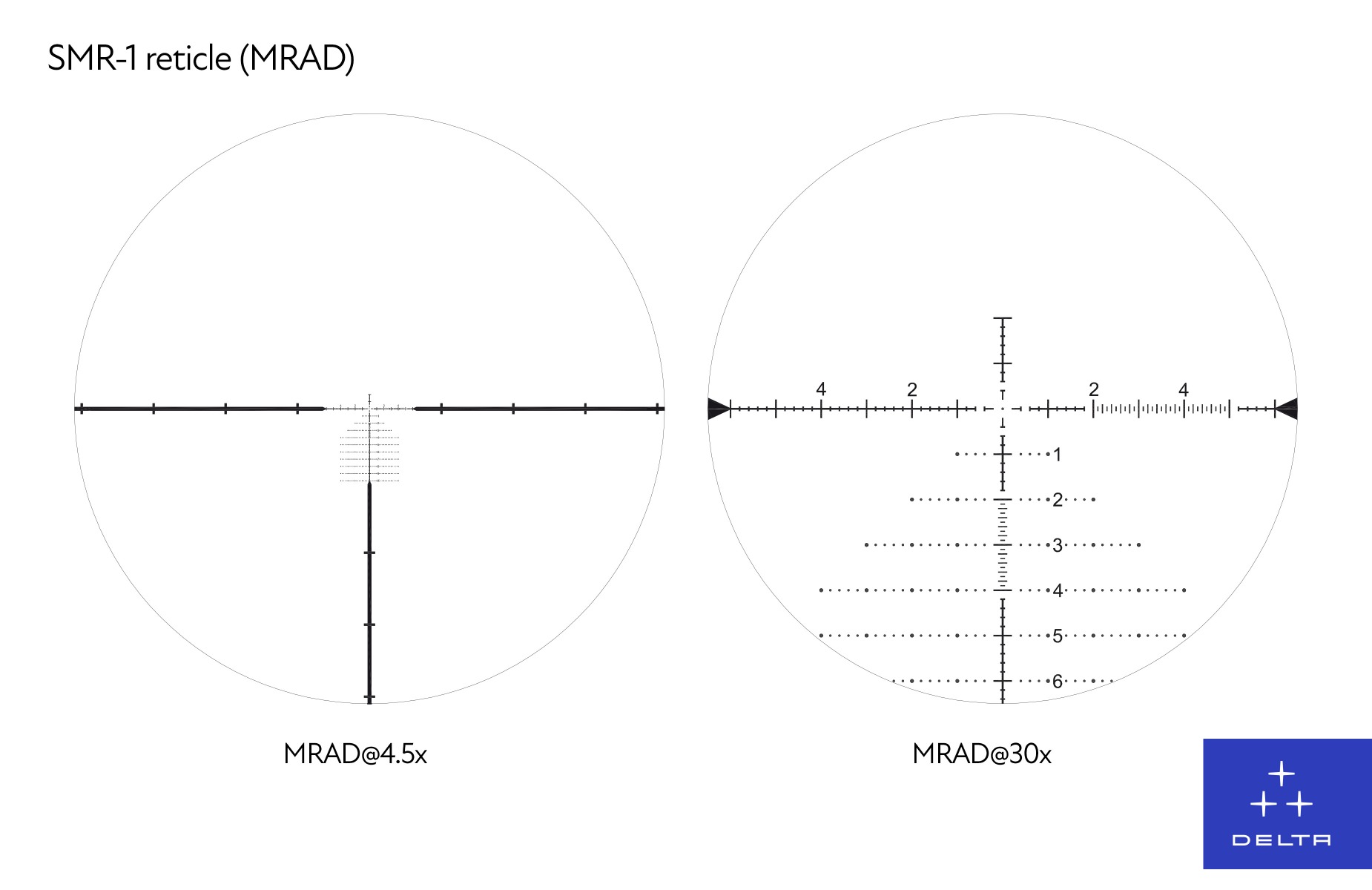

Reticle
The SMR (Scandinavian Match Reticles) reticles are made for shooters by shooters. All SMR reticles are designed to be clean and simple without any unnecessary distractions but remain functional, versatile and efficient.
The SMR-1 is a holdover reticle made to fit the needs of long-range, field and PRS-style shooters, however, due to the illuminated centre, the reticle is also ideal for low-light hunting.
The reticle features options such as an open-top, a floating centre dot, 0.2 mil hash marks and an integrated free-floating ruler with 0.1 mil hash marks for easier target measurement.
Field of View @ 4.5x
Field of View @ 30x
The holdover ”Christmas tree” has 0.2 hash marks for distance and windage hold, the numbers for mil holdover are placed 1.2 mil on the right from the center to be easily spotted when counting holdover, but still far enough not to cover the target at the most critical parts of the reticle.
In the box?
Delta Javelin 4.5-30x56 FFP SMR-1 IR Rifle Scope.
- 1 x Rifle scope
- 1 x Sunshade
- 1 x Throw Lever
- 1 x Metal flip covers
Warranty
- 10 year warranty.
