WIN A: HIKMICRO Lynx 2.0 LH15 PRO 15mm <20mK 384x288 12µm Smart Thermal Monocular
WINNER: Douglas Shorter CHARITY: Stow Maries Great War Aerodrome
DONATION: £6.62
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK

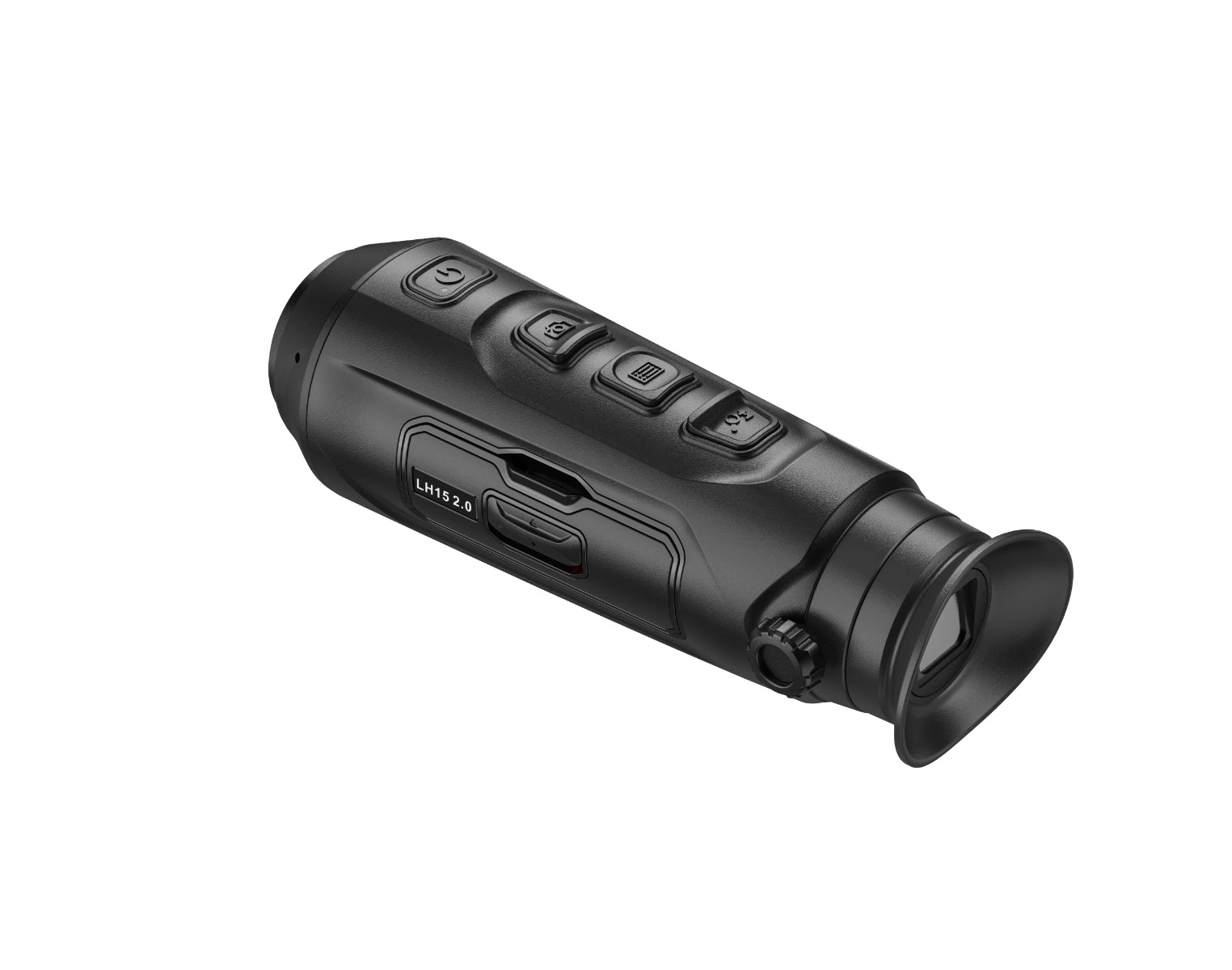

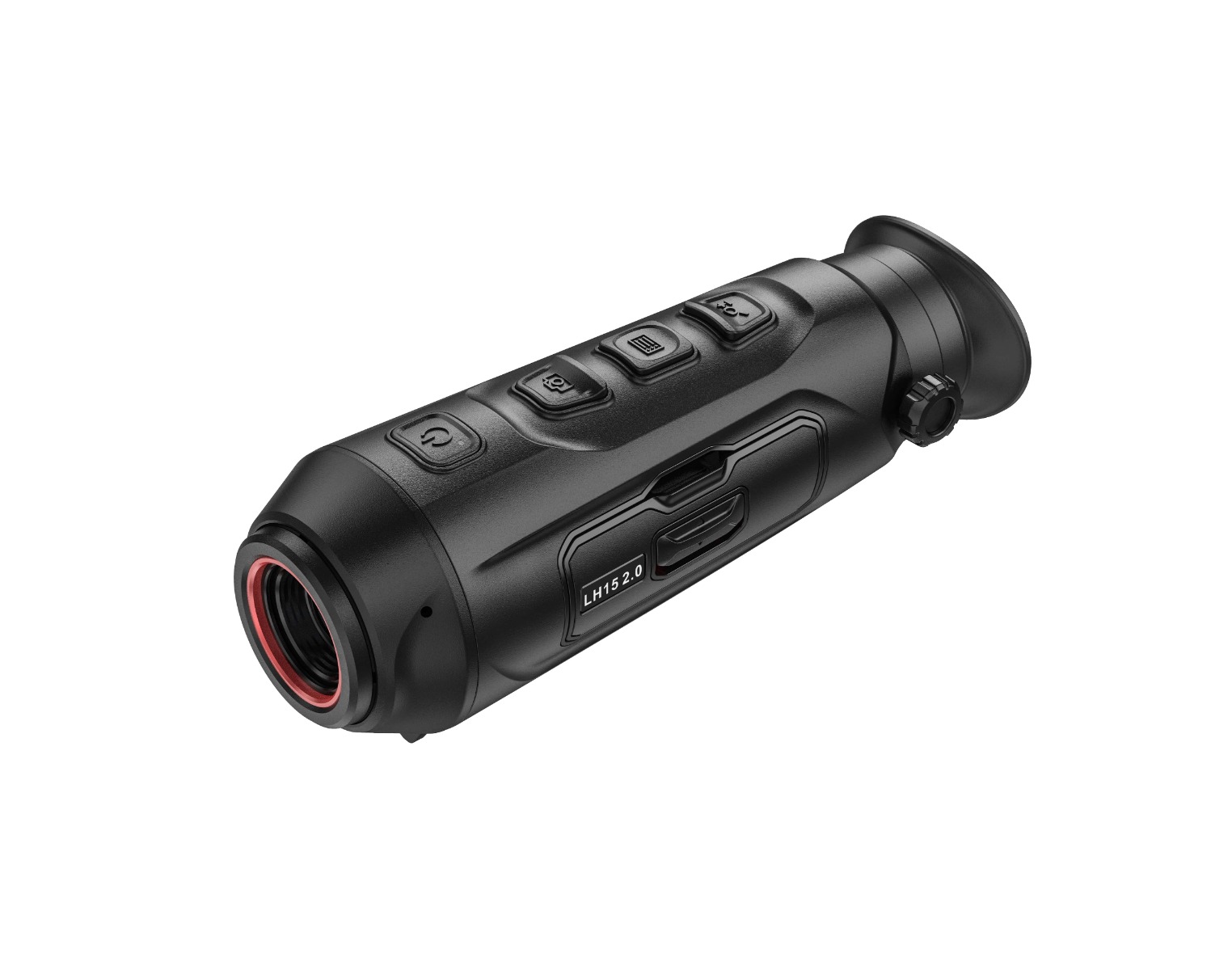

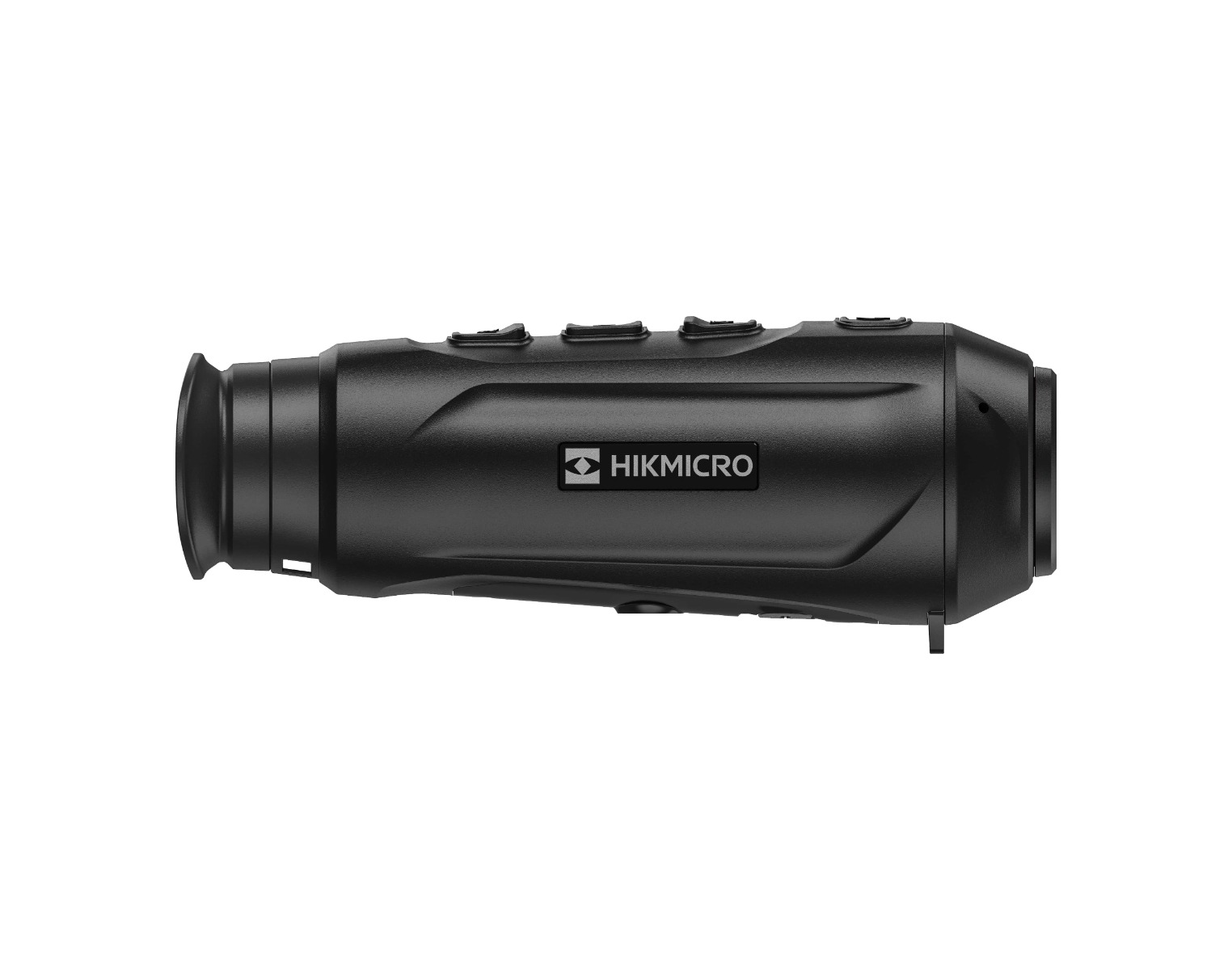

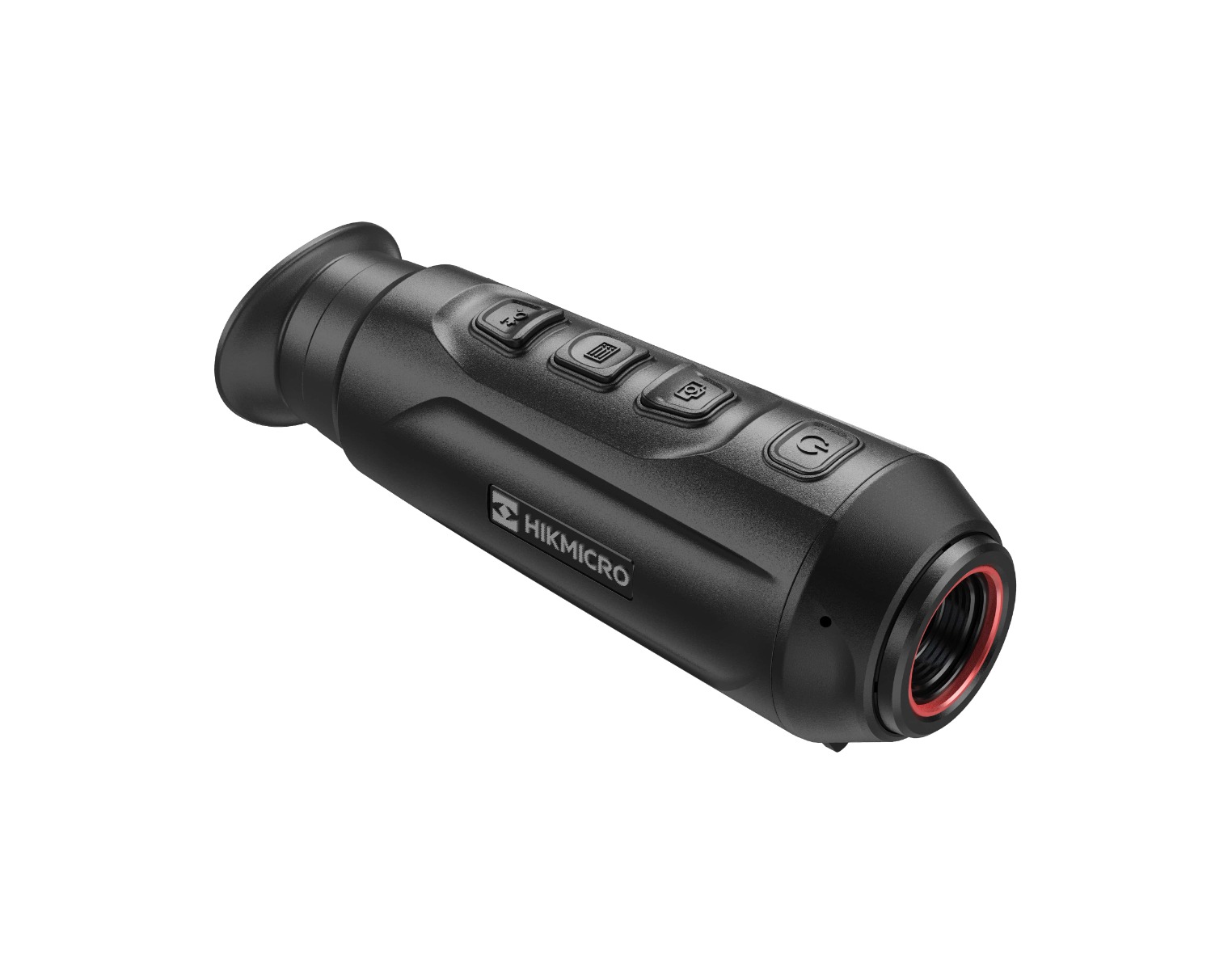

Introducing the new Lynx 2.0 15mm thermal monocular. Sharing the same design philosophy, robust build quality and high performance thermal sensors as the class leading Falcon and Condor monoculars, the Lynx 2.0 redefines expectations from entry level thermal products.
High performance thermal – At the core of the Lynx 2.0 15mm is HIKMICRO’s latest generation, 384px Sub 20 mK NETD sensor that pairs with the advanced, F1.0 lens to detect very small changes in temperature and deliver an incredibly detailed image, even in the most challenging conditions. The 15mm Focal length offers 1.4x base mag with up to 8x digital magnification giving you 1.4-11.2x magnification range.
Compact and powerful - Built on a robust magnesium-alloy chassis, the Lynx 2.0 has a distinctly premium feel from the first time you pick it up. The updated chassis design also features a removable 18650 battery delivering up to 6.5 hours of run time. The ergonomic buttons fall easily to hand and allow you to intuitively take control of the main features, even in complete darkness. The large OLED screen gives a great view of your surroundings while the soft eyecup prevents unwanted light spill.
Digital connectivity – The Lynx 2.0 is supplied with the latest HIKMICRO software which gives you fast access to commonly used options like brightness and contrast and allows you to add a PIP screen to your monocular. The Lynx 2.0 offers a choice of four thermal colour profiles, the ability to record pictures or video and WiFi to allow you to connect, stream and control from the HIKMICRO sight app.
The lower the NETD value, the better the imaging
Thermal imaging works by sensing tiny differences in temperature, and the more sensitive the sensor is to minute contrasts, the better and more clear the image in the viewfinder. Lynx 2.0’s sub 20mK NETD sensors capture the sharpest, most informative images, even in challenging conditions; this means that you can not just find the heat of people, animals and birds, but capture the detail of the surroundings to aid identification.
Convenience is king

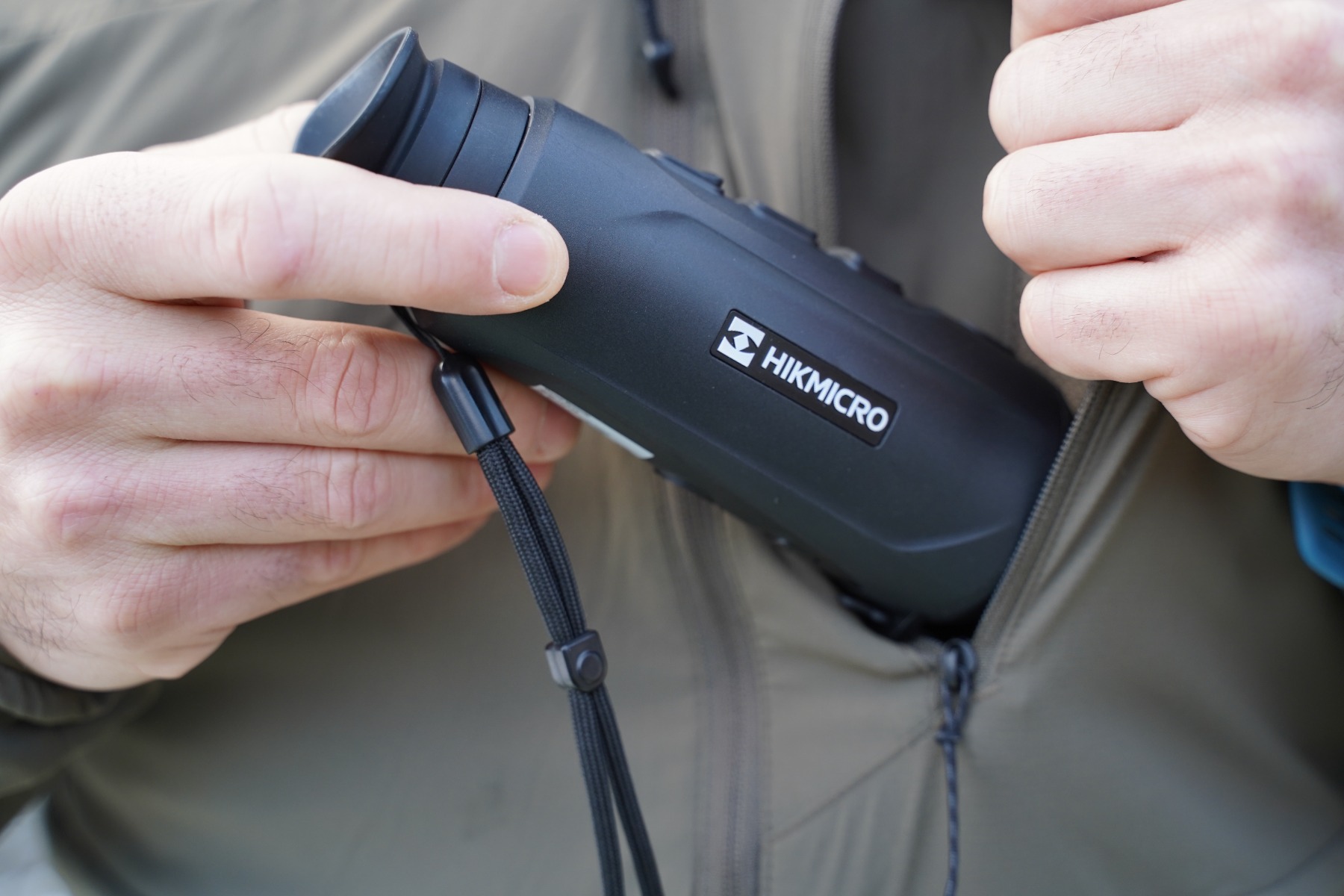

The Lynx 2.0 has been redesigned to maximise convenience in every area. The size and weight, at under 175mm in length and under 300g with battery, combine with the rugged build and comfortable rounded shape to produce a powerful device that can easily be carried and used at all times. The new power system uses industry-standard rechargeable 18650 batteries for a continuous run-time of up to 6.5 hours, which can be renewed by a quick switch of the battery to a (supplied) spare. Lynx 2.0 also features a 3 second Fast Boot time, to easily keep pace with the action in the field.
Integrated phone or tablet hotspot
HIKMICRO’s Sight App links Lynx 2.0 to your phone or tablet, creating a second display and adding functionality: You can control the device via the app, view and share recorded images and video, share the thermal view with others in your group, and control and update the software settings.
The Lynx 2.0 is the perfect, versatile companion device for hunting, ecological survey, wildlife observation, search & rescue and security applications. The affordable price, high performance and robust, proven build make it a natural choice and it seems well set to take over the best-seller crown from its much-loved predecessor.
Product Name A-Z | WIN A: HIKMICRO Lynx 2.0 LH15 PRO 15mm <20mK 384x288 12µm Smart Thermal Monocular |
---|---|
SKU | OPTICSDRAWS#335 |
Specs
Thermal Module Specifications:
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 384 × 288
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 20 mK (@25°C), F# = 1.0
- Lens (Focal Length): 15 mm, f1.0
- Detection Range: 750 m
- Min. Focusing Distance: 1.5 m
- Magnification: 1.4x to 11.2x (8x)
- Field of View(H × V), Degrees / m @100m: 17.5° × 13.1°/30.8 m × 23.0 m
Image Display:
- Display: 1024 × 768, 0.39 inch, OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
- Exit Pupil: 6 mm
- Eye Relief: 20 mm
- Diopter (Range): -5 D to +3 D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
System Features:
- Record Video: Yes
- Capture Snapshot: Yes
- Audio Recording: Yes
- Standby Mode: Yes
- Storage: Built-in EMMC (16 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance Measurement: Yes
Power Supply:
- Battery Type: Replaceable and Rechargeable Li-ion Battery
- Battery Operating Time: 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
- Type-C Power Supply: 5VDC, 2 A
- Supports External Power Supply
General Information:
- Protection Level: IP67
- Dimension: 164.0 mm × 56.0 mm × 60.8 mm
- Weight: 272 g without battery
- Working Temperature: -30°C to +55°C
Features
- High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
- 384 × 288 resolution with 12μm detector
- 1024 × 768 resolution 0.39-inch OLED display
- Replaceable and rechargeable Li-ion battery
- 270 g lightweight, with a compact and ergonomic design
- Up to 6.5 hours of continuous operation
Video
In the box?
- HIKMICRO Lynx 2.0 LH15 Smart Thermal Monocular
- Quick start guide
- Non-dust cloth
- USB Cable
- Protective bag
- Wrist strap
- Charger
- Cell x2
Warranty
- 3 Year Warranty
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
